F5 Networks F5-UPG-QSFP+ (OPT-0025-00) Compatible 40GBASE-SR4 QSFP+ 850nm 100m Transceiver
US$ 24.00 (Excl. VAT)
40GBASE-SR4 QSFP+ Transceiver (MMF, 850nm, 100m on OM3, MPO, DDM) used for F5 Networks 40G Networking devices.

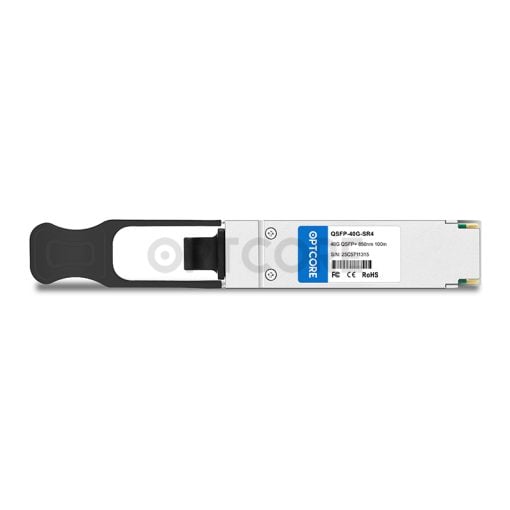

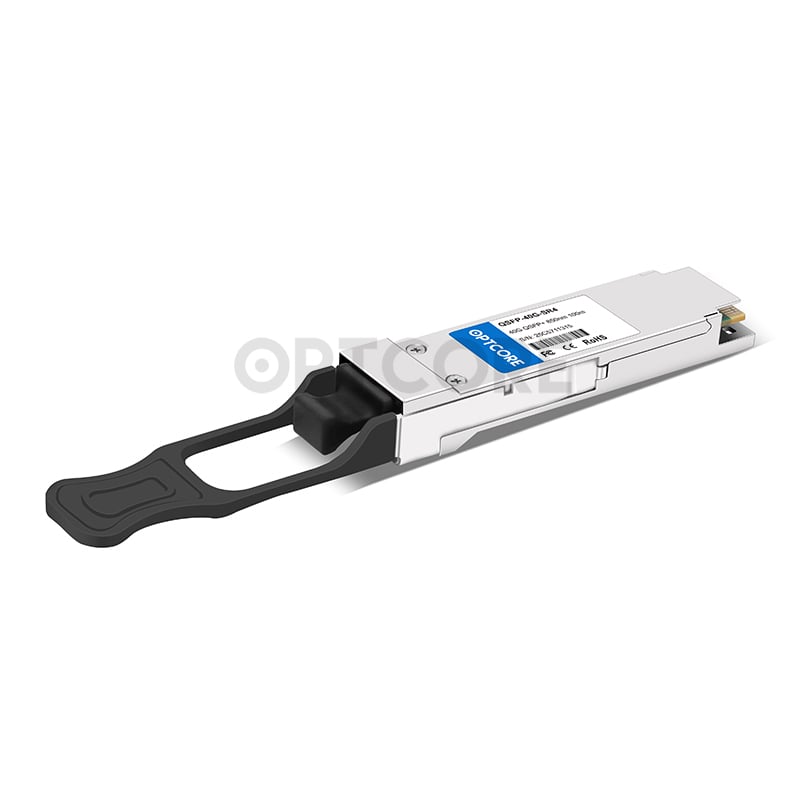

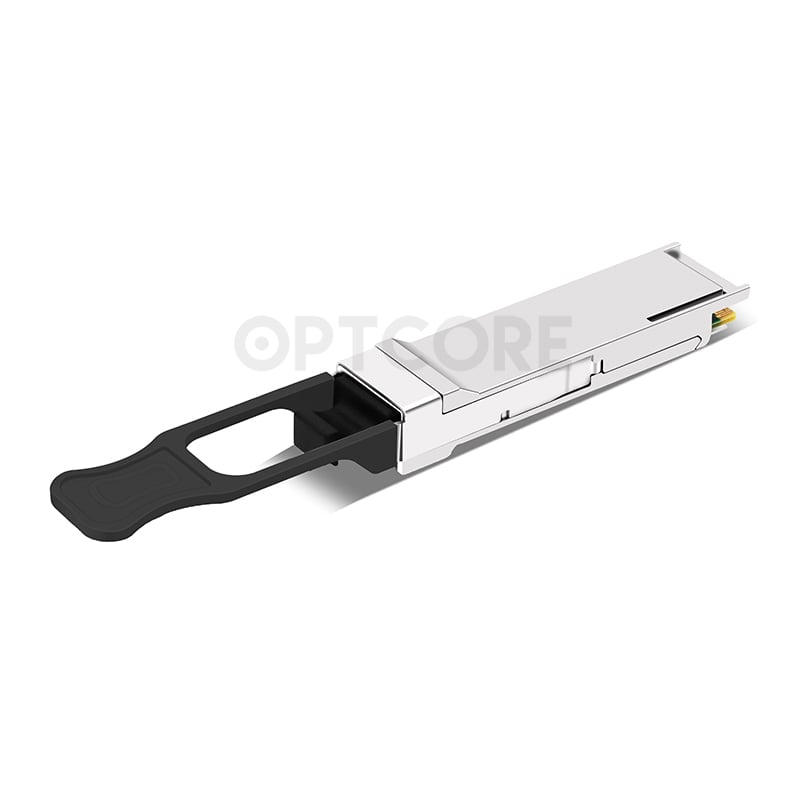

F5 Networks F5-UPG-QSFP+(OPT-0025-00) Compatible 40GBASE-SR4 QSFP+ Transceiver (MMF, 850nm, MPO/MTP, 100m)
This QSFP+ SR4 transceiver is suitable for use in F5 Networks 40 Gigabit networking platform and equivalent to F5 Networks F5-UPG-QSFP+(OPT-0025-00). It complies with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 specifications. The QSFP+ SR4 transceiver is programmed and tested to be compatible with F5 Networks data center switches, routers, NICs and other optical transport devices for 40G Ethernet and high-performance computing networks.
Features
• Functional identical to F5 Networks F5-UPG-QSFP+ (OPT-0025-00)
• Transmission data rate up to 10.3Gbps per channel
• Up to 100m links on OM3 MMF or 150m on OM4 MMF
• High-Reliability 4-channel 850nm VCSEL laser
• Compliant with QSFP+ MSA
• Compliant with IEEE 802.3ba 40GBASE-SR4
• Operating temperature range:0~70ºC
• Power dissipation < 1.5 W
• RoHS6 Compliant
Specification
| Compatible OEM Part Number | F5-UPG-QSFP+ (OPT-0025-00) | Optcore Part Number | QSFP-40G-SR4-F5 |
| Form Factor | QSFP+ | Data Rate | 40 Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 100m @ OM3 or 150m @ OM4 | Optical Components | VCSEL/PIN |
| Transmitter Power | -7.6 ~ +1 dBm | Extinction ratio | > 3.0 dB |
| Receiver Sensitivity | < -9.5 dBm | Receiver Overload | > 2.0 dBm |
| Connector | MPO | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
| Application | 40G Ethernet and OTU3 Proprietary Protocol and Density Applications Datacom/Telecom switch & router connections Data Aggregation and Backplane Applications High-performance computing networks Infiniband transmission at 4ch SDR, DDR and QDR |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS,SFF-8436,IEEE802.3ba |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by F5 Networks.
| Weight | 0.07 kg |
|---|
