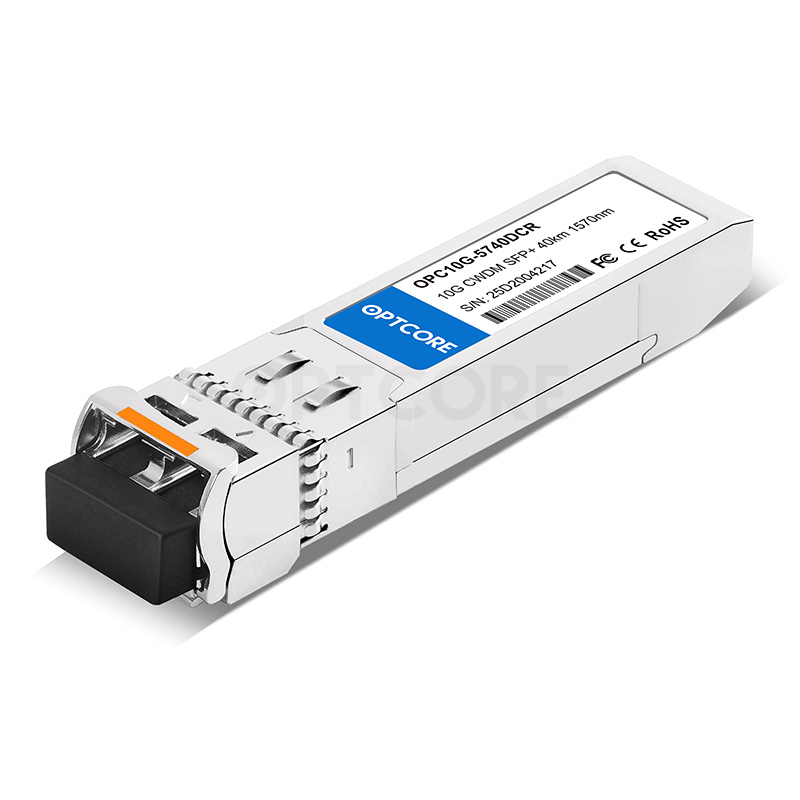

Intel E10GSFPER-CW57 Compatible 10G CWDM SFP+ 1570nm 40km Transceiver
US$ 139.00 (Excl. VAT)
10G CWDM SFP+ Transceiver (SMF, 1570nm, 40km, LC, DOM) for use with Intel 10G switches, routers, and optical transport devices.
Wavelength
Intel E10GSFPER-CW57 Compatible 10G CWDM SFP+ Transceiver Module (SMF, 1570nm, 40km, LC, DOM)
This 10GBase-ER CWDM SFP+ module works with Intel CWDM networking equipment and equivalent to genuine Intel E10GSFPER-CW57. It is designed for 10-gigabit coarse wavelength-division multiplexing optical network application. It has been programmed to ensure the compatibility of Intel switches, routers, and optical transport devices.
Features
• Functionally identical to Intel E10GSFPER-CW57
• Compliant with 802.3ae 10GBASE-ER
• Temperature-stabilized CWDM-rated EML transmitter and PIN ROSA
• Up to 40km on 9/125µm SMF
• Support Digital Diagnostic Monitoring interface
• Reduce cost of leasing or laying fiber
• Use with CWDM MUX/DEMUX, combined CWDM optics solution
Specification
| Compatible OEM Part Number | E10GSFPER-CW57 | Optcore Part Number | OPC10G-5740DCR-INT |
| Form Factor | CWDM SFP+ | Data Rate | 10.5 Gb/s |
| Wavelength | 1570 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | CWDM EML/PIN |
| Transmitter Power | -1 ~ 4 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -16 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 10GBASE-ER/EW CWDM Ethernet
10G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Intel.
| Weight | 0.03 kg |
|---|
