Cisco DWDM-SFP-4692 Compatible 1000BASE-DWDM SFP Transceiver
US$ 139.00 (Excl. VAT)
1000BASE-DWDM SFP Transceiver (100Ghz, 1546.92nm, 80km, LC, DOM) for use with Cisco Ethernet Switches and Routers.
Similar Products
CH17 CH18 CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH26 CH27 CH28 CH29 CH30 CH31 CH32 CH33 CH34 CH35 CH36 CH37 CH38 CH39 CH40 CH41 CH42 CH43 CH44 CH45 CH46 CH47 CH48 CH49 CH50 CH51 CH52 CH53 CH54 CH55 CH56 CH57 CH58 CH59 CH60 CH61

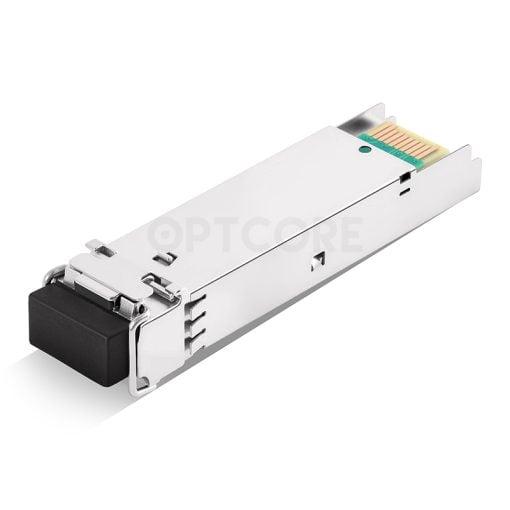

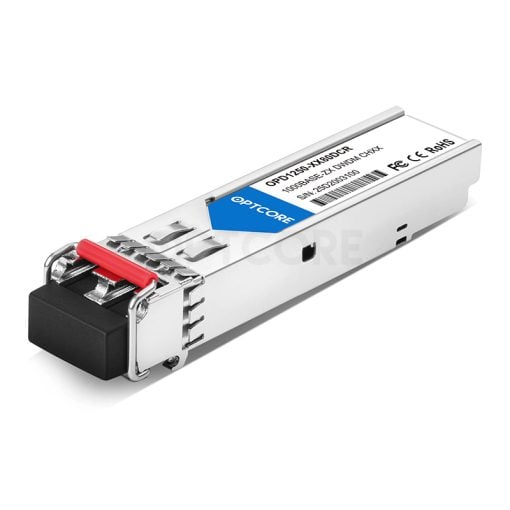

Cisco DWDM-SFP-4692 Compatible 1000BASE-DWDM SFP Transceiver (100GHz, 1546.92nm, 80km, LC, DOM)
Features
• Functionally identical to Cisco DWDM-SFP-4692
• Support up to 1.25Gb/s data links
• Up to 80km on 9/125µm G.652D single mode fiber
• 100GHz ITU Grid, C Band
• Support Digital optical monitoring function for enhanced diagnostics and troubleshooting
• Use with DWDM MUX/DEMUX, combined DWDM fiber solution
• Reduce cost of leasing or laying fiber
Specification
| OEM Part Number | DWDM-SFP-4692 | Optcore Part Number | OPD1250-3880DCR-CSC |
| Form Factor | DWDM SFP | Data Rate | 1.25 Gb/s |
| Wavelength | CH38 – 1546.92nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | DWDM DFB/PIN |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -26 dBm | Receiver Overload | > 0 dBm |

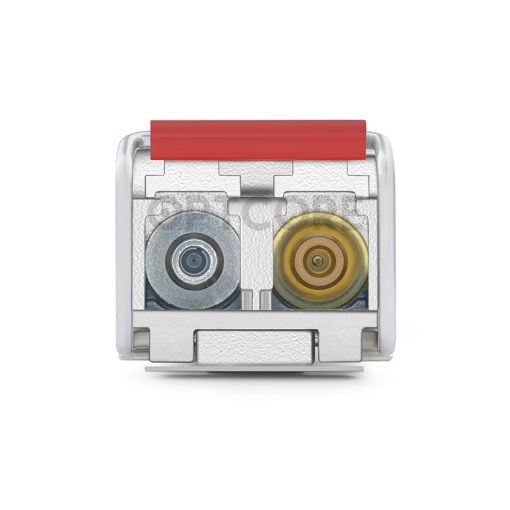

| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | C Band DWDM networks Fiber channel over DWDM Gigabit Ethernet over DWDM |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Cisco.
| Weight | 0.03 kg |
|---|
