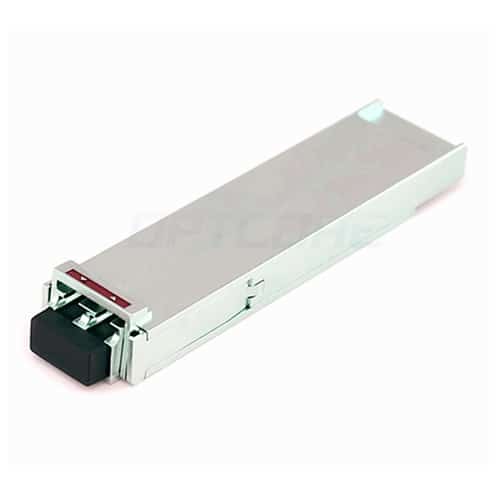

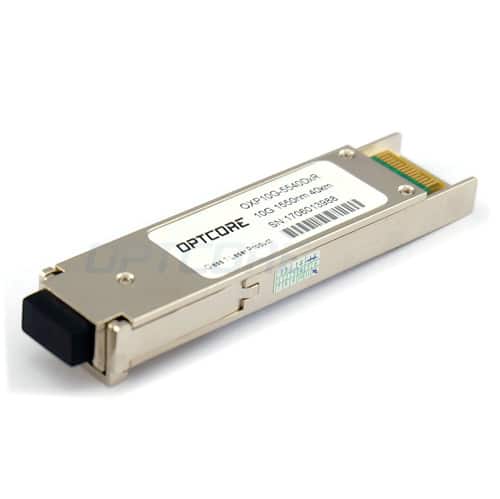

D-Link DEM-423XT Compatible 10GBASE-ER 1550nm 40km XFP Transceiver
US$ 169.00 (Excl. VAT)
D-Link DEM-423XT compatible 10GBASE-ER XFP Transceiver (SMF, 1550nm, 40km, LC, DDM) for use with D-Link switch.
Similar Products
D-Link DEM-423XT Compatible 10GBASE-ER XFP Transceiver (SMF, 1550nm,40km, LC, DDM)
D-Link compatible DEM-423XT is a XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. It is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-ER/EW per IEEE 802.3ae and 10G Fiber Channel.
This product is programmed to be compatible with a wide range of D-Link network equipment, such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost D-Link DEM-423XT Copper cable.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ER/EW
• 1550nm EML transmitter, PIN photo-detector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | DEM-423XT | Optcore Part Number | OXP10G-5540DCR-DLK |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | EML/PIN |
| Transmitter Power | -2 ~ 3 dBm | Extinction ratio | > 6 dB |
| Receiver Sensitivity | < -16 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-ER/10GBASE-EW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by D-Link.
| Weight | 0.05 kg |
|---|
