Customized Simplex Singlemode 9/125μm OS2 LC/SC/FC/ST/E2000(LSH)/DIN /D4/MU/SMA Fiber Patch Cable
Price range: US$ 2.00 through US$ 50.90 (Excl. VAT)
Each LC/SC/FC/ST/LSH(E2000)/DIN/D4/MU/MTRJ/SMA fiber pigtail has passed the test of Insertion Loss, Return Loss and End-face Inspection in the factory to ensure complies and exceeds industry standards.
Customized Simplex LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA Singlemode Fiber Patch Cable (9/125µm, 2.0mm, UPC/APC, PVC/LSZH/OFNP)
Can not find the custom Singlemode fiber patch cables for your fiber cabling network? Build and order your own custom Singlemode OS2 fiber patch cables online. With our easy-to-use online Singlemode OS2 fiber patch cable configurator, you can create a customized LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA Singlemode fiber patch cable for your own devices, at a great price, and quick delivery. It is a great way to optimize your fiber optic network with this low price LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA Singlemode fiber patch cable.
Fiber Optic Patch Cable also is known as fiber patch cord, fiber optical cable, or fiber optic jumper. As an essential component commonly used in fiber-optic networks, high-quality fiber patch cables are critical for any high-performance fiber-optic network. Optcore offers an extensive line of LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA simplex fiber patch cables with many choices of different lengths, jacket material, polish, and cable diameter. Those LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA 9/125µm Singlemode OS2 fiber jumpers support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks.
Features
• LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA connector available
• Low insertion loss
• High back reflection loss
• Boots in a variety of colors
• PVC/LSZH/OFNP jacket optional
• 2.0mm and 3.0mm cable optional
• The ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Optional Fiber Connectors
Various fiber connectors LC/SC/FC/ST/E2000(LSH)/MTRJ for your different cabling needs.
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Simplex (1-fiber) |
| Connector Type | LC/SC/FC/ST/E2000(LSH)/DIN/D4/MU/SMA | Polish | UPC or APC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB(UPC), ≥60dB(APC) |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| LC-LC-SM-SxM | Custom Length xM LC/UPC-LC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LCA-LCA-SM-SxM | Custom Length xM LC/APC-LC/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SC-SC-SM-SxM | Custom Length xM SC/UPC-SC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |

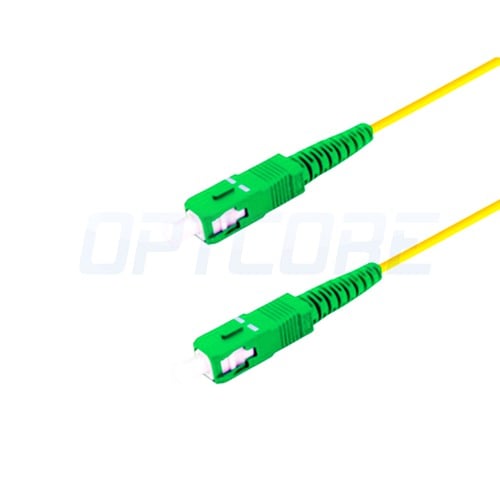

| SCA-SCA-SM-SxM | Custom Length xM SC/APC-SC/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FC-FC-SM-SxM | Custom Length xM FC/UPC-FC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FCA-FCA-SM-SxM | Custom Length xM FC/UPC-FC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| ST-ST-SM-SxM | Custom Length xM ST/UPC-ST/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| STA-STA-SM-SxM | Custom Length xM ST/APC-ST/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |

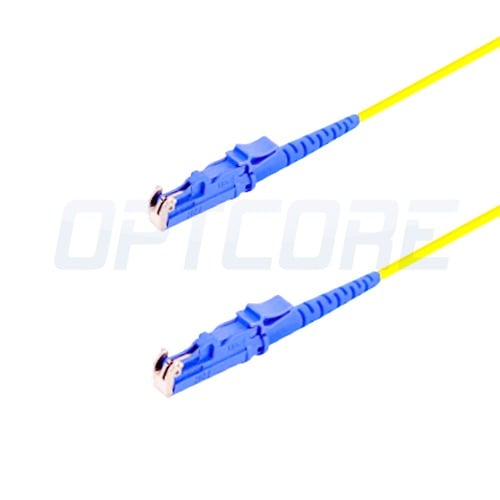

| E2000-E2000-SM-SxM | Custom Length xM E2000(LSH)/UPC-E2000(LSH)/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| E2000A-E2000A-SM-SxM | Custom Length xM E2000(LSH)/UPC-E2000(LSH)/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| MU-MU-SM-SxM | Custom Length xM MU/UPC-MU/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| MUA-MUA-SM-SxM | Custom Length xM MU/APC-MU/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| DIN-DIN-SM-SxM | Custom Length xM DIN/UPC-DIN/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| DINA-DINA-SM-SxM | Custom Length xM DIN/APC-DIN/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| D4-D4-SM-SxM | Custom Length xM D4/UPC-D4/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| D4A-D4A-SM-SxM | Custom Length xM D4/APC-D4/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SMA905-SMA905-SM-SxM | Custom Length xM SMA905/UPC-SMA905/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SMA906-SMA906-SM-SxM | Custom Length xM SMA906/UPC-SMA906/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LC-SC-SM-SxM | Custom Length xM LC/UPC-SC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |

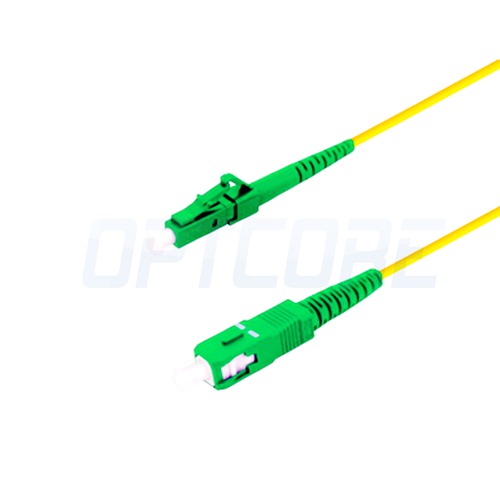

| LCA-SCA-SM-SxM | Custom Length xM LC/APC-SC/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LC-FC-SM-SxM | Custom Length xM LC/UPC-FC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LCA-FCA-SM-SxM | Custom Length xM LC/APC-FC/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LC-ST-SM-SxM | Custom Length xM LC/UPC-ST/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LCA-STA-SM-SxM | Custom Length xM LC/APC-ST/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LC-E2000-SM-SxM | Custom Length xM LC/UPC-E2000(LSH)/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LCA-E2000A-SM-SxM | Custom Length xM LC/APC-E2000(LSH)/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LC-MU-SM-SxM | Custom Length xM LC/UPC-MU/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| LCA-MUA-SM-SxM | Custom Length xM LC/APC-MU/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SC-FC-SM-SxM | Custom Length xM SC/UPC-FC/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SCA-FCA-SM-SxM | Custom Length xM SC/APC-FC/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SC-ST-SM-SxM | Custom Length xM SC/UPC-ST/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SCA-STA-SM-SxM | Custom Length xM SC/APC-ST/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SC-E2000-SM-SxM | Custom Length xM SC/UPC-E2000/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SCA-E2000A-SM-SxM | Custom Length xM SC/APC-E2000/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SC-MU-SM-SxM | Custom Length xM SC/UPC-MU/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| SCA-MUA-SM-SxM | Custom Length xM SC/APC-MU/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FC-ST-SM-SxM | Custom Length xM FC/UPC-ST/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FCA-STA-SM-SxM | Custom Length xM FC/APC-ST/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FC-E2000-SM-SxM | Custom Length xM FC/UPC-E2000/UPC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FCA-E2000A-SM-SxM | Custom Length xM FC/APC-E2000/APC Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FC-MU-SM-SxM | Custom Length xM FC/UPC-MU/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| FCA-MUA-SM-SxM | Custom Length xM FC/APC-MU/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| E2000-MU-SM-SxM | Custom Length xM E2000/UPC-MU/UPC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
| E2000A-MUA-SM-SxM | Custom Length xM E2000/APC-MU/APC Female Simplex 9/125μm OS2 Singlemode Fiber Patch Cable |
Download
| Weight | N/A |
|---|
