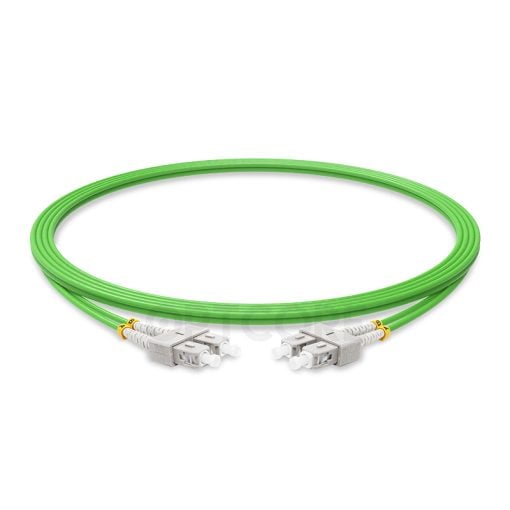

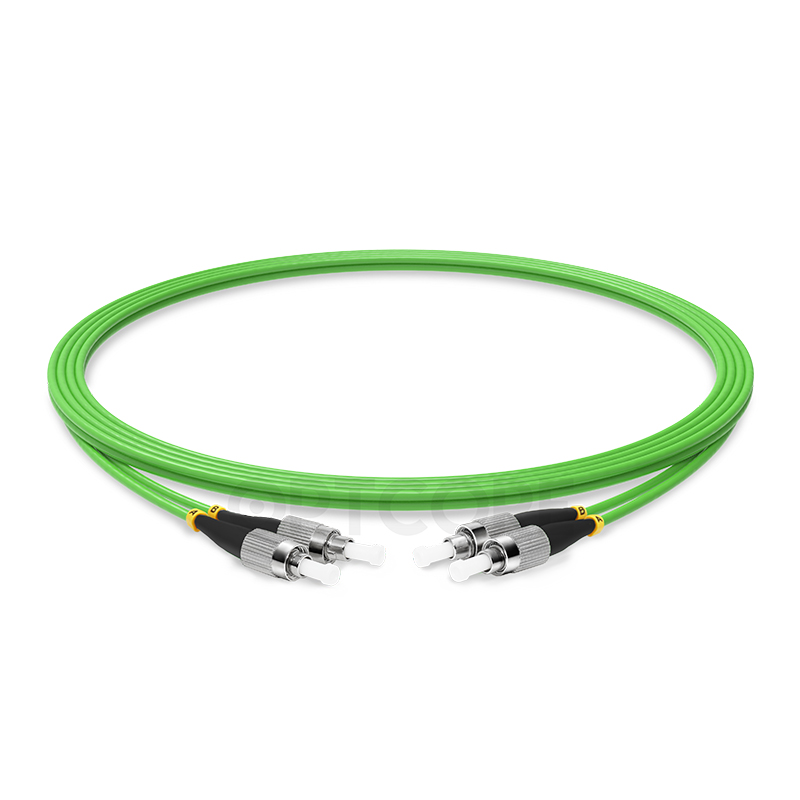

Customized 100GB OM5 50/125 Multimode LC/SC/FC/ST Wideband Duplex Fiber Patch Cable

Customized 100G OM5 Multimode LC/SC/FC/ST Wideband Fiber Optic Patch Cable (50/125µm, 2.0mm, UPC, LSZH, Green)

Can not find the custom 100G OM5 fiber patch cable for your own network device? Build and order your own custom OM5 patch cable online. With our easy-to-use online OM5 fiber cable configurator, you can create a customized OM5 LC/SC/FC/ST fiber patch cable for your own devices, with a great price, and quick delivery. This is a great way to optimize your fiber optic network with this low price customized OM5 patch cable.

As the amount of traffic in data centers grows, so does the need for next-generation devices and fiber cables to support higher bandwidths. This OM5 duplex multimode 50/125 fiber patch cable is a wideband multimode fiber (WBMMF) patch cable that supports Short Wavelength Division Multiplexing (SWDM) to transmit multiple signals (wavelengths) on one fiber, increasing the bandwidth of a single fiber by at least a factor of four. The LC to LC multimode fiber patch cable provides cost-effective fiber solutions for increased bandwidth in 40/100Gb Ethernet applications.

The OM5 fiber cable meets ANSI/TIA-492AAAE and current IEEE 802.3ae requirements. It is completely backward-compatible with existing OM3 and OM4 50/125 fiber networks and applications, potentially making your fiber optic cable installation easier. The OM5 fiber patch cable is manufactured with high-quality wideband multimode fiber (WBMMF) fiber and LC-LC ceramic connectors and is strictly tested for low insertion and return loss to ensure superior performance and quality. The cable jacket is LSZH (Low-Smoke, Zero-Halogen) flame retardant, to ensure minimal smoke, toxicity, and corrosion. It is ideal for 40G QSFP+ and 100G QSFP28 transceivers connections.

Features

• LC/SC/FC/ST connector available
• Low insertion loss
• High back reflection loss
• Rated OM5 to offer a wideband 50/125 multimode fiber solution
• Provides an upgrade path from 40 Gbps to 100 Gbps and beyond
• Backward compatible with OM3 and OM4 applications
• Low-Smoke, Zero Halogen (LSZH) green jacket
• The ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

Specification

Fiber Type	50/125μm OM5 Multimode	Fiber Count	Duplex (2-fiber)
Connector Type	LC/SC/FC/ST	Polish	UPC to UPC
Cable Length	1m,2m,3m … 50m or Customize	Cable Diameter	2.0 mm
Tensile Strength	70 N	Length Tolerance	+/- 1cm
Insertion Loss	≤0.3dB	Return Loss	≥20dB
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Jacket Material	LSZH (Low-Smoke, Zero-Halogen)	Jacket Color	Green
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Compliance	RoHS compliant
Application	10/40/100 Gigabit Ethernet, Data Storage, Legacy LANs

Ordering Information

Optcore Part Number	Description
XX-XX-OM5-DxM-20-LS	Customized xM XX(LC/SC/FC/ST) to XX(LC/SC/FC/ST) Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH)
