Customized 40G/100G OM4 Multimode LC/SC/FC/ST/E2000/ MU/MTRJ Duplex Fiber Patch Cable
Price range: US$ 3.60 through US$ 76.90 (Excl. VAT)
Each LC/SC/FC/ST/E2000/MU/MTRJ OM4 fiber patch cord has passed the test of Insertion Loss, Return Loss and End-face Inspection in the factory to ensure complies and exceeds industry standards.
Customized 40G OM4 Multimode LC/SC/FC/ST/E2000/MU/MTRJ Wideband Fiber Optic Patch Cable (50/125µm, 2.0mm, UPC, LSZH, Magenta)
Can not find the custom 40G/100G OM4 fiber patch cable for your own network device? Build and order your own custom OM4 patch cable online. With our easy-to-use online OM4 fiber cable configurator, you can create a customized OM4 LC/SC/FC/ST/E2000/MU/MTRJ fiber patch cable for your own devices at a great price and quick delivery. That is a great way to optimize your fiber optic network with this low price customized OM4 patch cable.
This duplex OM4 multimode LC/SC/FC/ST/E2000/MU/MTRJ fiber optic patch cable is a laser-optimized, high bandwidth 50µm multimode fiber (LOMMF) cable for 40G/100G Ethernet applications. This OM4 fiber patch cable features a high bandwidth of 4700MHz*km, providing more than double times bandwidth over 50/125µm 10G OM3 multimode fiber -2000MHz.km. The OM4 fiber patch cable was explicitly developed for VSCEL laser transmission and allowed 40G link distances of up to 150 Meters or 100G link distances of up to 100 Meters. This cable is entirely backward compatible with your existing 50/125 equipment as well as with 10 Gigabit Ethernet applications. OM4 fiber patch cable gives the cabling infrastructure user better performance to support longer distances or more connections. It provides a cost-effective way of avoiding expensive single-mode 40G/100G transceiver optics.
The OM4 fiber patch cable is manufactured with high-quality optical fiber and LC/SC/FC/ST/E2000/MU/MTRJ ceramic connectors. It is strictly tested for low insertion and return loss to ensure superior performance and quality. The cable jacket is LSZH (Low-Smoke, Zero-Halogen) flame retardant to ensure minimal smoke, toxicity, and corrosion. It is ideal for 10GBase-SR, 40GBase-SR BiDi, SFP+, and QSFP+ transceivers connection.
Features
• LC/SC/FC/ST/E2000/MU/MTRJ connector available
• Low insertion loss
• High back reflection loss
• Laser-optimized multimode fiber (LOMMF)
• Provides an upgrade path from 10 Gbps to 40 Gbps and beyond
• Backward compatible with legacy LAN’s
• Low-Smoke, Zero Halogen (LSZH) jacket
• An ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 50/125μm OM4 Multimode | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC/SC/FC/ST/E2000/MU/MTRJ | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH (Low-Smoke, Zero-Halogen) | Jacket Color | Magenta |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application | 10/40/100 Gigabit Ethernet, Data Storage, Legacy LANs |
Ordering Information
| Optcore Part Number | Description |
| LC-LC-OM4-DxM | Custom Length xM Duplex LC-LC UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| SC-SC-OM4-DxM | Custom Length xM Duplex SC-SC UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| FC-FC-OM4-DxM | Custom Length xM Duplex FC-FC UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| ST-ST-OM4-DxM | Custom Length xM Duplex ST-ST UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| E2000-E2000-OM4-DxM | Custom Length xM Duplex E2000(LSH)-E2000(LSH) UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| MTRJ-MTRJ-OM4-DxM | Custom Length xM Duplex MTRJ-MTRJ UPC Female 50/125μm OM4 Multimode Fiber Patch Cable |
| MU-MU-OM4-DxM | Custom Length xM Duplex MU-MU UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| LC-SC-OM4-DxM | Custom Length xM Duplex LC-SC UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| LC-FC-OM4-DxM | Custom Length xM Duplex LC-FC UPC 50/125μm OM4 Multimode Fiber Patch Cable |

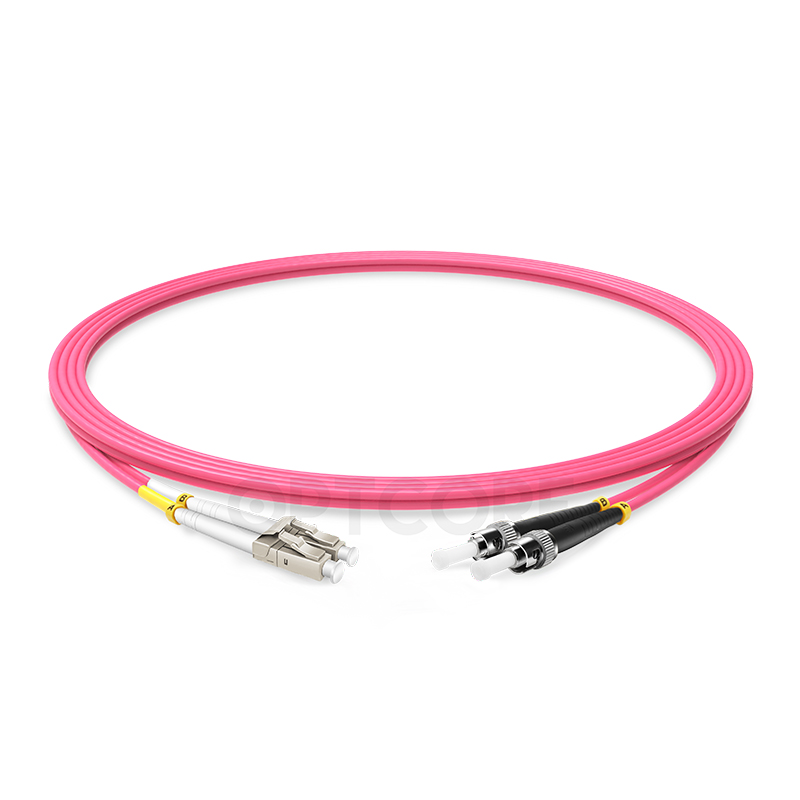

| LC-ST-OM4-DxM | Custom Length xM Duplex LC-ST UPC 50/125μm OM4 Multimode Fiber Patch Cable |

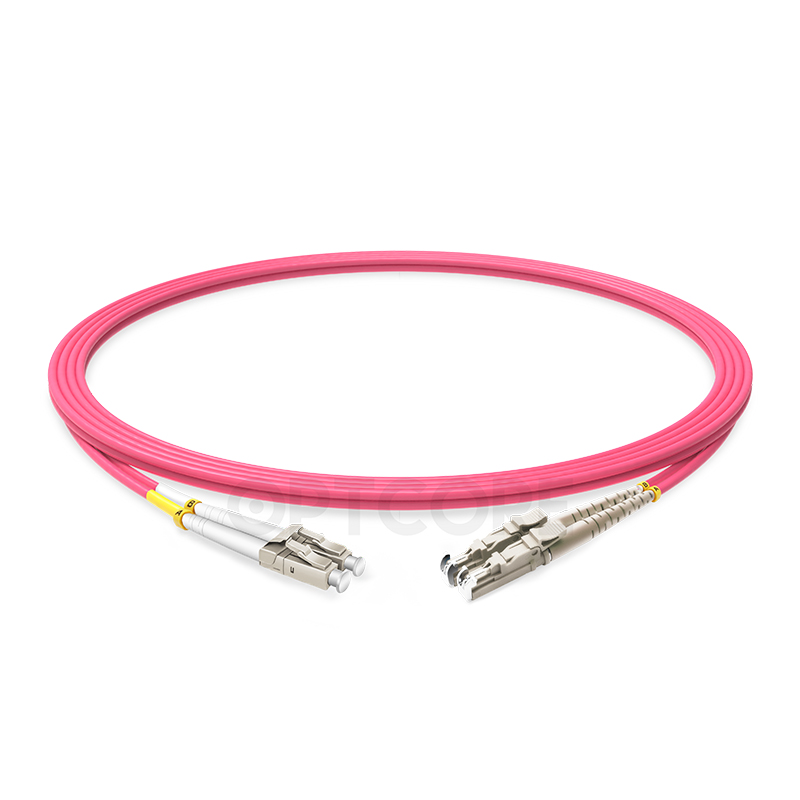

| LC-E2000-OM4-DxM | Custom Length xM Duplex LC-E2000(LSH) UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| LC-MTRJ-OM4-DxM | Custom Length xM Duplex LC-MTRJ UPC Female 50/125μm OM4 Multimode Fiber Patch Cable |
| LC-MU-OM4-DxM | Custom Length xM Duplex LC-MU UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| SC-FC-OM4-DxM | Custom Length xM Duplex SC-FC UPC 50/125μm OM4 Multimode Fiber Patch Cable |

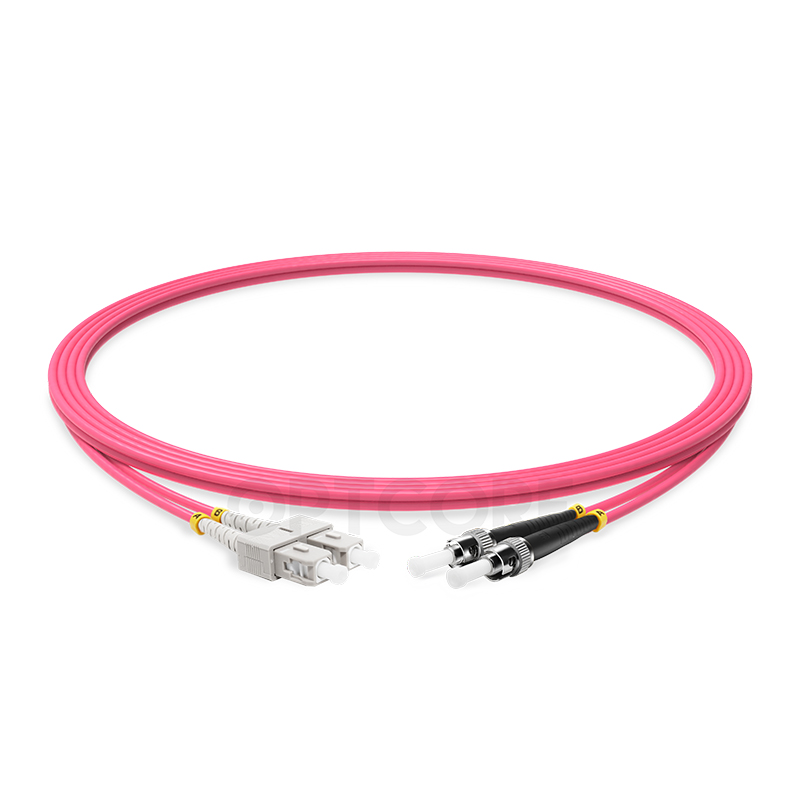

| SC-ST-OM4-DxM | Custom Length xM Duplex SC-ST UPC 50/125μm OM4 Multimode Fiber Patch Cable |

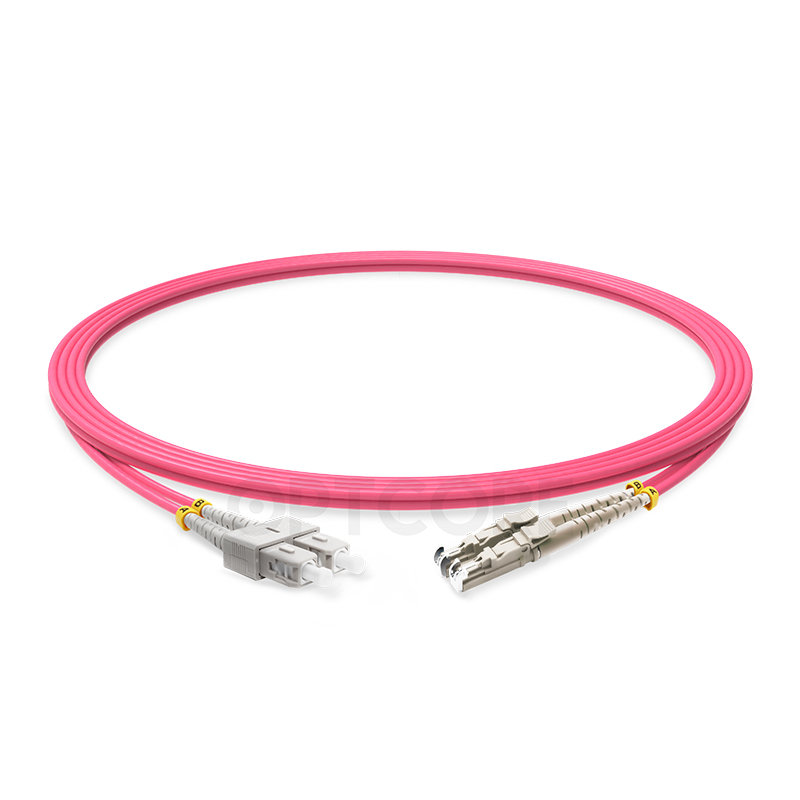

| SC-E2000-OM4-DxM | Custom Length xM Duplex SC-E2000 UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| SC-MU-OM4-DxM | Custom Length xM Duplex SC-MU UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| FC-ST-OM4-DxM | Custom Length xM Duplex FC-ST UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| FC-E2000-OM4-DxM | Custom Length xM Duplex FC-E2000 UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| FC-MTRJ-OM4-DxM | Custom Length xM Duplex FC-MTRJ UPC Female 50/125μm OM4 Multimode Fiber Patch Cable |
| FC-MU-OM4-DxM | Custom Length xM Duplex FC-MU UPC 50/125μm OM4 Multimode Fiber Patch Cable |
| E2000-MTRJ-OM4-DxM | Custom Length xM Duplex E2000-MTRJ UPC Female 50/125μm OM4 Multimode Fiber Patch Cable |
| E2000-MU-OM4-DxM | Custom Length xM Duplex E2000-MU UPC 50/125μm OM4 Multimode Fiber Patch Cable |
Download
| Weight | N/A |
|---|---|
| Connector | LC-LC, LC-SC, LC-ST, LC-FC, LC-E2000, LC-MTRJ, LC-MU, SC-SC, SC-ST, SC-FC, SC-E2000, SC-MTRJ, SC-MU, ST-ST, ST-FC, ST-MTRJ, FC-FC, FC-E2000, FC-MTRJ, MU-MU, E2000-E2000, E2000-MTRJ, MTRJ-MTRJ |
| Polish Type | |
| Fiber Count | |
| Fiber Type | |
| Cable Length | 1m (3.3ft), 2m (6.6ft), 3m (9.8ft), 4m (13.1ft), 5m (16.4ft), 7m (23.0ft), 10m (32.8ft), 15m (49.2ft), 20m (65.6ft), 25m (82.0ft), 30m (98.4ft), 40m (131ft), 50m (164ft), 75m (246ft), 100m (328ft) |
