Mini Media Converter – 10/100BASE-TX to 100BASE-BX, BiDi 1310nm-TX/1550nm-RX 20km
US$ 14.00 (Excl. VAT)
Good quality Micro Mini Media Converter (10/100BASE-TX to 100Base-BX, BiDi 1310nm-TX/1550nm-RX, 20km, 1xRJ45 + 1x SC/ST/FC).
10/100BASE-TX to 100BASE-BX Fiber Mini Fast Ethernet Media Converter (SM, BiDi 1310nm-TX/1550nm-RX, 20km, 1xRJ45 + 1x SC/ST/FC)
The CMC-ESB11-A20x series is a stand-alone Micro Mini Fast Ethernet Media Converter with a dual-wavelength that enables Bidirectional transmission on single strand fiber. It is suitable for desktop and mobile applications that require lightweight, compact size, and low power. This BiDi Mini media converter provides cost-effective, entry-level media conversion between 10BASE-T or 100BASE-TX copper to 100BASE-BX single fiber. It is a compact media converter that has a small size, which is ideal for locations where space is limited. The single fiber Mini media converter leverage its smaller size to help the IT managers save space in their working environment. The compact smaller size and external power supply of the Mini media converter allow them to be used almost anywhere.

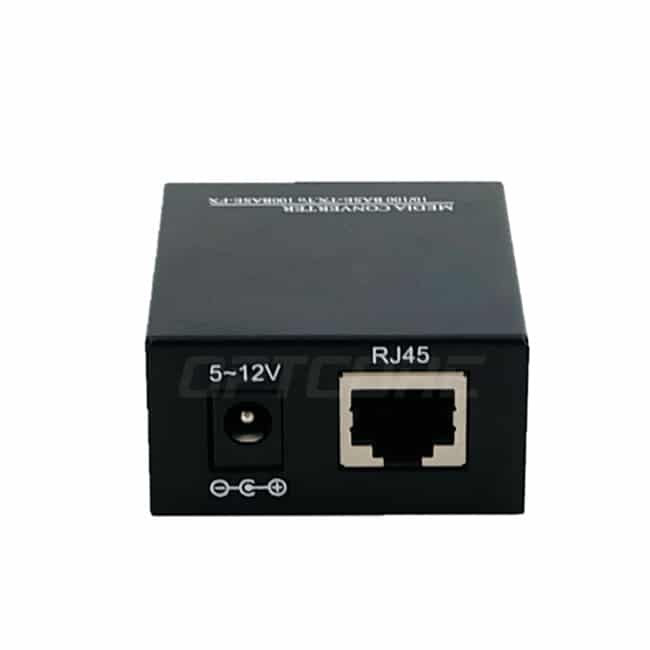

The Micro Mini Media converter features an RJ-45 port that supports auto-negotiation with speed, duplex mode, and crossover functions for PCs with 10BASE-T and 100BASE-TX Ethernet. The 100BASE-FX fiber port operates at the 1310nm wavelength on the transmitter side and 1550nm on the receiver side, which supports distances up to 20 km(12 miles), and available in SC, ST, or FC fiber connector.
Besides that, the Mini media converter is truly plug-and-play and it works great out of the box without more configuration requests.
Please kindly note this Mini BiDi media converter needs to be used paired with CMC-ESB11-B20x series Ethernet converter.
Features
• Supports 10/100Mbps and full/half-duplex, easy upgrades
• Auto-Negotiation and Auto MDI/MDIX on copper port
• Multiple fiber connectors could be chosen: SC, ST, or FC
• LED indicators for power, RJ-45, and fiber port status
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards
• Fixed configuration, plug, and play design

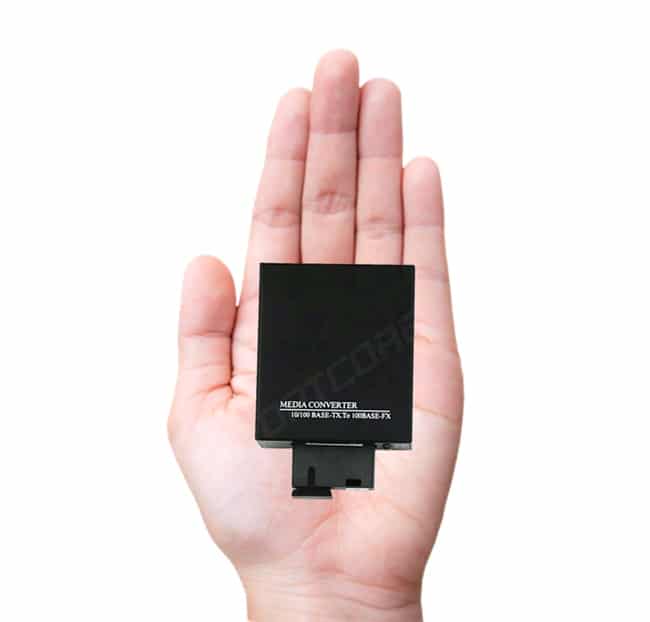

• Small and light, weight only 85 grams (3 oz)
• 5VDC power supply
Specification
| Product Series | Micro Mini Media Converter | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports | 1 x 10/100BASE-TX RJ45 port 1 x 10/100BASE-FX SC fiber port (ST or FC also available) |
Network Media | 10Base-T: Cat 5 UTP (Max 100m/328 ft.) 100Base-T: Cat 5 UTP (Max 100m/328 ft.) 100Base-FX: Singlemode Fiber Cable (Max 20km/12.4 mi.) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |
LED indicator | Power, FX 100, TX 100 |
| Buffer space | 128 KB | MAC address | 1K |
| Wavelength | TX: 1310 nm / RX: 1550 nm | Fiber Type | Single strand Singlemode Fiber (SMF) |
| Transmitter Power | -14 ~ -3 dBm | Receiver Sensitivity | < -34 dBm |
| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 5V 1A |
Power Consumption | < 2.0W |
| Dimensions (WxDxH) | 53×46×26 mm (2.1×1.8×1.0 in) | Gross Weight | 0.25 kg (8.8 oz) |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
Ordering Information
| Optcore Part Number | Description |
| CMC-ESB11-A20C | Mini Fast Ethernet Media Converter, 10BASE-T/100BASE-TX RJ45 to 100BASE-BX BiDi 1310nm-TX/1550nm-RX 20km, Single SC |
| CMC-ESB11-A20T | Mini Fast Ethernet Media Converter, 10BASE-T/100BASE-TX RJ45 to 100BASE-BX BiDi 1310nm-TX/1550nm-RX 20km, Single ST |
| CMC-ESB11-A20F | Mini Fast Ethernet Media Converter, 10BASE-T/100BASE-TX RJ45 to 100BASE-BX BiDi 1310nm-TX/1550nm-RX 20km, Single FC |
Note: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-EMA11-02C-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only.
| Weight | 0.5 kg |
|---|---|
| Connector | |
| Plug Type | |
| Wavelength |
