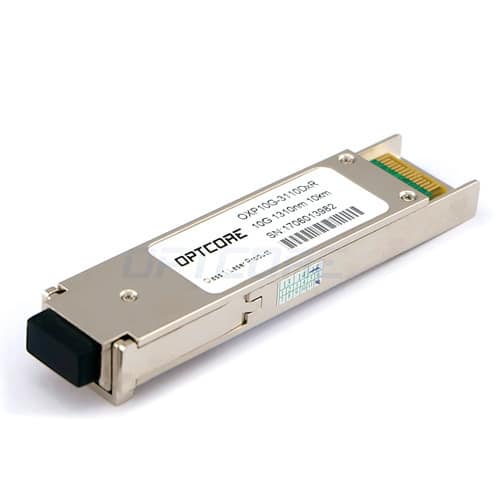

Cisco XFP10GLR-192SR-L Compatible 10GBASE-LR 1310nm 10km XFP Transceiver
US$ 56.00 (Excl. VAT)
Good quality Cisco XFP10GLR-192SR-L compatible 10GBASE-LR XFP Transceiver (SMF, 1310nm, 10km, LC, DDM).
Cisco XFP10GLR-192SR-L Compatible 10GBASE-LR SMF 1310nm 10km XFP Optical Transceiver Module
Optcore’s OXP10G-3110DCR-CSC is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel 1200-SM-LL-L. It provides 10-Gigabit connectivity up to 10km on single mode fiber (SMF) at 1310nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Additionally, the OXP10G-3110DCR-CSC XFP transceiver is programmed to be compatible with a wide range of Cisco network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost Cisco XFP10GLR-192SR-L XFP module.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• Uncooled 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | XFP10GLR-192SR-L | Optcore Part Number | OXP10G-3110DCR-CSC |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-LR/10GBASE-LW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• Cisco 7600 76-ES+T-2TG
• Cisco 7600 76-ES+T-4TG
• Cisco 7600 76-ES+XC-20G3C
• Cisco 7600 76-ES+XC-20G3CXL
• Cisco 7600 76-ES+XC-40G3C
• Cisco 7600 76-ES+XC-40G3CXL
• Cisco 7600 76-ES+XT-2TG3C
• Cisco 7600 76-ES+XT-2TG3CXL
• Cisco 7600 76-ES+XT-4TG3C
• Cisco 7600 76-ES+XT-4TG3CXL
• Cisco 7600-ES+2TG3C
• Cisco 7600-ES+2TG3CXL
• Cisco 7600-ES+4TG3C
• Cisco 7600-ES+4TG3CXL
• Cisco 7600-ES20-10G3C
• Cisco 7600-ES20-10G3CXL
• Cisco ASR 9000 A9K-2T20GE-B
• Cisco ASR 9000 A9K-2T20GE-E
• Cisco ASR 9000 A9K-2T20GE-L
• Cisco ASR 9000 A9K-4T-B
• Cisco ASR 9000 A9K-4T-E
• Cisco ASR 9000 A9K-4T-L
• Cisco ASR 9000 A9K-8T/4-B
• Cisco ASR 9000 A9K-8T/4-E
• Cisco ASR 9000 A9K-8T/4-L
• Cisco ASR 9000 A9K-8T-B
• Cisco ASR 9000 A9K-8T-E
• Cisco ASR 9000 A9K-8T-L
• Cisco ASR 9000 A9K-MPA-2X10GE
• Cisco ASR 9000 A9K-MPA-4X10GE
• Cisco ASR 903 A900-IMA1X
• Cisco CRS 14X10GBE-WL-XFP
• Cisco CRS 20X10GBE-WL-XFP
• Cisco CRS 2-10GE-WL-FLEX
• Cisco CRS 4-10GBE-WL-XFP
• Cisco CRS 8-10GBE-WL-XFP
• Cisco ME-3600X-24CX-M
• Cisco ME4600-UMX-4x10GE
• Cisco SCE8000-2X10GE-E
• Cisco SCE8000-4X10GE-E
• Cisco SPA-1X10GE-L-V2
• Cisco SPA-1X10GE-WL-V2
• Cisco SPA-1XTENGE-XFP
• Cisco SPA-OC192POS-XFP
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
