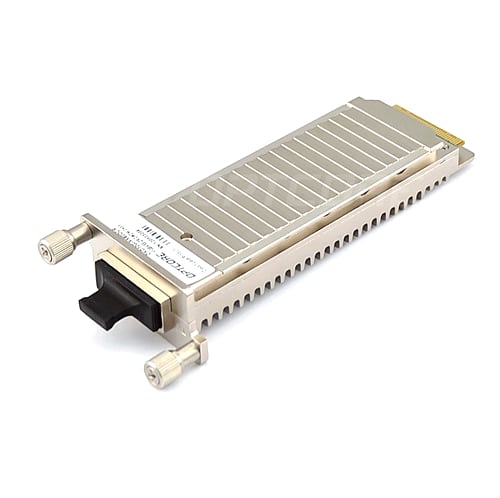

Cisco XENPAK-10GB-LR Compatible 10GBASE-LR SMF 1310nm 10km XENPAK Transceiver
US$ 119.00 (Excl. VAT)
Good quality Cisco XENPAK-10GB-LR compatible 10GBASE-LR XENPAK Transceiver (SMF, 1310nm, 10km, SC).
Available on backorder
Cisco XENPAK-10GB-LR Compatible 10GBASE-LR SMF 1310nm 10km XENPAK Transceiver Module
Optcore’s OXK10G-3110DCR-CSC is a high performance and cost-effective XENPAK transceiver module, which is programmed to be compatible with Cisco network equipment including Ethernet Switches, Ethernet Routers and Network Interface Cards (NICs). It is an ideal equivalent to Cisco XENPAK-10GB-LR 10GBASE-LR XENPAK module. The XENPAK transceiver module provides 10-Gigabit connectivity up to 10km on single mode fiber (SMF) for data center, enterprise wiring closet and service provider transport applications. It fully complies with the XENPAK Multi-Sourcing Agreement (MSA) and can be used with any MSA compliant equipment. The XENPAK transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• Compatible with XENPAK MSA
• Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
• Transmission Distance up to 10km on SMF
• DFB Laser at 1310nm
• Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
• Management and control via MDIO 2-wire interface
• Power Supply: +3.3V, APS(+1.2V)
• Diagnostic Optics Monitoring
• ROHS compliant and Lead-Free
• Compatible with Cisco XENPAK-10GB-LR
Specification
| Compatible OEM Part Number | XENPAK-10GB-LR | Optcore Part Number | OXK10G-3110DCR-CSC |
| Form Factor | XENPAK | Data Rate | 10Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0.5 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | Duplex SC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.15 kg |
| Application | 10GBASE-LR/10GBASE-LW Ethernet
10G Fiber Channel,Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• 7600 Series Router – WS-SUP32-10GB-3B
• 7600 Series Router – WS-X6704-10GE
• Catalyst 6500 Series – WS-SUP32-10GE-3B
• Catalyst 6500 Series – WS-SUP32-10GE-PISA
• Catalyst 6500 Series – WS-X6704-10GE
• Catalyst 3750 Series -WS-C3750G-16TD
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
| Weight | 0.25 kg |
|---|
