Cisco WS-G5487 Compatible 1000BASE-ZX SMF 1550nm 70km GBIC Transceiver
Good quality Cisco WS-G5487 compatible 1000BASE-ZX GBIC Transceiver (SMF, 1550nm, 70km, SC).

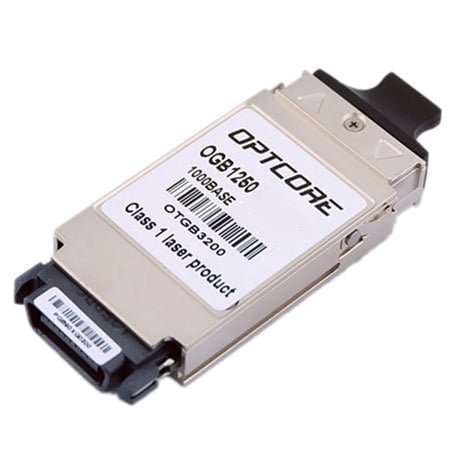

Cisco WS-G5487 Compatible 1000BASE-ZX SMF 1550nm 70km GBIC Transceiver
Optcore’s OGB1250-5580NCR-CSC is a high performance and cost effective Gigabit Interface Converter (GBIC) module for 1000BASE-ZX Gigabit Ethernet and 1G Fiber Channel application. It is fully comply with the GBIC Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.
The 1000BASE-ZX GBIC transceiver is tested to be compatible with Cisco networking equipment that with GBIC slots such as Ethernet Switches, Ethernet Routers and Network Interface Cards (NICs). The GBIC transceiver is an ideal equivalent to Cisco WS-G5487 1000BASE-ZX GBIC transceiver but with much lower price, which provides a reliable compatible GBIC transceiver optics solution for system integrator, distributors and end users in network infrastructure and fiber cabling. The GBIC transceiver consists of the below sections: the LD driver, the limiting amplifier, the 1550nm DFB laser and the PIN photo-detector. The GBIC transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• Support Up to 1.25Gb/s data links
• Compliant with GBIC MSA standard
• Up to 70km on 9/125µm SMF
• 1550nm DFB laser transmitter and PIN photo-detector
• Hot-pluggable GBIC footprint
• Single +5V power supply
• Duplex SC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| OEM Part Number | WS-G5487 | Optcore Part Number | OGB1250-5580NCR-CSC |
| Form Factor | GBIC | Data Rate | 1.25Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 70 km | Optical Components | DFB/PIN |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -26 dBm | Receiver Overload | > 0 dBm |
| Connector | Duplex SC | Digital Diagnostic Monitoring | No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• 10000 Series Router – ESR-1GE
• 12000 Series Router – 3GE-GBIC-SC
• 2600 Series Router – NM-1GE
• 3800 Series Integrated Services Router – NM-1GE
• 6400 Universal Access Router – C6400-NRP-2SV
• 7200 Series Router – C7200-I/0-GE+E
• 7200 Series Router – NPE-G1
• 7200 Series Router – PA-GE
• 7300 Series Router – 7300-NSE-100
• 7500 Series Router – GEIP
• 7500 Series Router – GEIP+
• 7600 Series Router – OSM-10C48-POS-SI
• 7600 Series Router – OSM-10C48-POS-SI+
• 7600 Series Router – OSM-10C48-POS-SL
• 7600 Series Router – OSM-10C48-POS-SL+
• 7600 Series Router – OSM-10C48-POS-SS
• 7600 Series Router – OSM-10C48-POS-SS+
• 7600 Series Router – OSM-16OC3-POS-MM
• 7600 Series Router – OSM-16OC3-POS-SI
• 7600 Series Router – OSM-16OC3-POS-SI+
• 7600 Series Router – OSM-16OC3-POS-SL
• 7600 Series Router – OSM-1CHOC12/T1-SI
• 7600 Series Router – OSM-1CHOC12/T3-SI
• 7600 Series Router – OSM-2+4GE-WAN+
• 7600 Series Router – OSM-2OC12-ATM-MM
• 7600 Series Router – OSM-2OC12-ATM-MM+
• 7600 Series Router – OSM-2OC12-ATM-SI
• 7600 Series Router – OSM-2OC12-ATM-SI+
• 7600 Series Router – OSM-2OC12-POS-MM
• 7600 Series Router – OSM-2OC12-POS-MM+
• 7600 Series Router – OSM-2OC12-POS-SI
• 7600 Series Router – OSM-2OC12-POS-SI+
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Cisco.
