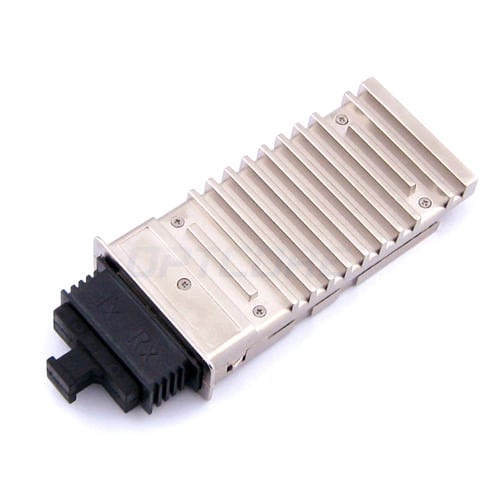

Cisco CWDM-X2-xxxx Compatible 10GBASE-ZR CWDM 80km X2 Transceiver
US$ 959.00 (Excl. VAT)
Good quality Cisco compatible 10GBASE-ZR CWDM X2 Transceiver Module (CWDM 1470/1490/1510/1530/1550/1570/1590/1610nm, 80km, SC).
Available on backorder
Cisco CWDM-X2-xxxx Compatible 10GBASE-ZR CWDM 80km X2 Transceiver Module
Optcore’s O2C10G-xx80DCR-CSC is a high performance and cost-effective Coarse Wavelength-Division Multiplexing (CWDM) X2 transceiver module for 10GBase-ZR ethernet, which is programmed to be compatible with Cisco network equipment including Ethernet Switches, Ethernet Routers and Network Interface Cards (NICs). It is an ideal equivalent to Cisco 10GBASE-ZR CWDM X2 module.
The CWDM X2 transceiver module provides 10-Gigabit connectivity up to 80km on single mode fiber (SMF) for data center, enterprise wiring closet and service provider transport applications. It fully complies with the X2 Multi-Sourcing Agreement (MSA) and can be used with any MSA compliant equipment. The X2 transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
• Compatible with X2 MSA
• Support of IEEE 802.3ae 10GBASE-ZR at 10.3125Gbps
• Transmission Distance up to 80km on SMF
• Cooled 1470-1610nm CWDM EML Laser
• Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
• Management and control via MDIO 2-wire interface
• Power Supply: +3.3V, APS(+1.2V)
• Diagnostic Optics Monitoring
• ROHS compliant and Lead-Free
• Compatible with Cisco CWDM X2 Module
Specification
| Compatible OEM Part Number | CWDM-X2-1470(…1610) | Optcore Part Number | O2C10G-xx80DCR-CSC |
| Form Factor | CWDM X2 | Data Rate | 10Gb/s |
| Wavelength | 1470-1610 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | EML/APD |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > 0 dBm |
| Connector | Duplex SC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.15 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet
10G Fiber Channel,Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• Cisco 2350-48TD-S
• Cisco 2350-48TD-SD
• Cisco 2360 Series – 2360-48TD-S
• Cisco 3100 Series WS–CBS3110X-S-I
• Cisco 3100 Series WS–CBS3120X-S
• Cisco 3100 Series WS–CBS3130X-S
• Cisco 4500 Series WS–X4013+10GE
• Cisco 4500 Series WS–X4516-10GE
• Cisco 4500 Series WS–X45-SUP6-E
• Cisco 4500 Series WS–X45-SUP6L-E
• Cisco 4500 Series WS–X4606-X2-E
• Cisco 4900 ME-4924-10GE
• Cisco 4900 Series WS–C4928-10GE
• Cisco 4900 Series WS–C4948-10GE
• Cisco 6500 Series VS–S720-10G-3C
• Cisco 6500 Series VS–S720-10G-3C
• Cisco 6500 Series VS–S720-10G-3CXL
• Cisco 6500 Series VS–S720-10G-3CXL
• Cisco 6500 Series WS–X6708-10G-3C
• Cisco 6500 Series WS–X6708-10G-3C
• Cisco 6500 Series WS–X6708-10G-3CXL
• Cisco 6500 Series WS–X6708-10G-3CXL
• Cisco 6500 Series WS–X6716-10G-3C
• Cisco 6500 Series WS–X6716-10G-3C
• Cisco 6500 Series WS–X6716-10G-3CXL
• Cisco 6500 Series WS–X6716-10G-3CXL
• Cisco 7600 RSP720-10GE
• Cisco 7600 Series WS–X6708-10G-3C
• Cisco 7600 Series WS–X6708-10G-3CXL
• Cisco Nexus 7000 N7K-M108X2-12L
• Cisco RFGW-X4516-10GE
• Cisco WS–C3560E-12D
• Cisco WS–C3560E-12SD
• Cisco WS–C3560E-24PD
• Cisco WS–C3560E-24TD
• Cisco WS–C3560E-48PD
• Cisco WS–C3560E-48PDF
• Cisco WS–C3560E-48TD
• Cisco WS–C3750E-24PD
• Cisco WS–C3750E-24TD
• Cisco WS–C3750E-48PD
• Cisco WS–C3750E-48PDF
• Cisco WS–C3750E-48TD
• Cisco WS–C4900M
• Cisco WS–X4904-10GE
• Cisco WS–X4908-10GE
Ordering Information
| Compatible OEM Part Number | Optcore Part Number | Description |
| CWDM-X2-1470 | O2C10G-4780DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1470nm, 80km, SC |
| CWDM-X2-1490 | O2C10G-4980DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1490nm, 80km, SC |
| CWDM-X2-1510 | O2C10G-5180DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1510nm, 80km, SC |
| CWDM-X2-1530 | O2C10G-5580DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1530nm, 80km, SC |
| CWDM-X2-1550 | O2C10G-5380DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1550nm, 80km, SC |
| CWDM-X2-1570 | O2C10G-5780DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1570nm, 80km, SC |
| CWDM-X2-1590 | O2C10G-5980DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1590nm, 80km, SC |
| CWDM-X2-1610 | O2C10G-6180DCR-CSC | 10GBASE-ZR CWDM X2 Transceiver, SMF, 1610nm, 80km, SC |
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
| Weight | 0.16 kg |
|---|
