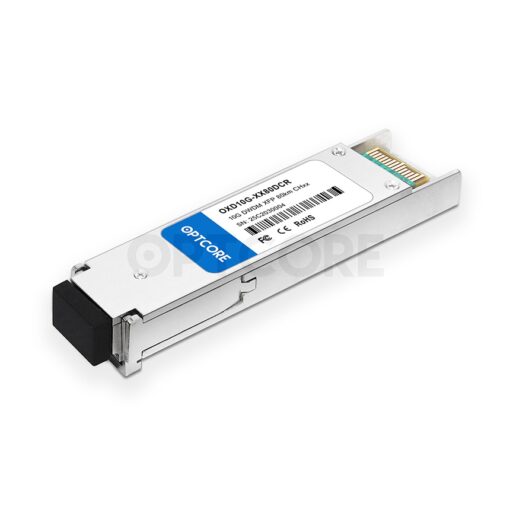

Cisco Compatible 10GBASE-ZR DWDM 80km XFP Transceiver
US$ 420.00 (Excl. VAT)
Good quality Cisco compatible 10GBASE-ZR DWDM XFP Transceiver Module (CH17 to CH61, 80km, LC).
Cisco DWDM-XFP-xx.xx Compatible 10GBASE-ZR DWDM 80km XFP Optical Transceiver Module
Optcore’s OXD10G-xx80DCR-CSC series are high performance and cost-effective Dense Wavelength-Division Multiplexing (DWDM) XFP transceiver module for duplex optical data communications from 9.95Gbps to 11.1Gb/ps. The DWDM XFP transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fiber Channel. It provides 10-Gigabit connectivity up to 80km on single mode fiber (SMF). The transceiver operates at nominal DWDM wavelengths available from 1528.77nm to 1563.86nm. The transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
The OXD10G-xx80DCR-CSC DWDM XFP transceiver is programmed to be compatible with a wide range of Cisco network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost Cisco 10GBase-ZR DWDM XFP module.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ZR/ZW
• Cooled DWDM EML and APD receiver
• Suitable for use in 100GHz channel spacing DWDM systems
• Distance up to 80km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| OEM Part Number | DWDM-XFP-xx.xx | Optcore Part Number | OXD10G-xx80DCR-CSC |
| Form Factor | DWDM XFP | Data Rate | 10Gb/s |
| Wavelength | CH17~CH61 | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | DWDM EML/APD |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > -7 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | DWDM 10GBASE-ZR/10GBASE-ZW Ethernet
DWDM 10G Fiber Channel DWDM SONET OC-192&SDH STM-64 Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| OEM Part Number | Optcore Part Number | Description | ITU Channel | Frequency(THz) | Wavelength |
| DWDM-XFP-63.86 | OXD10G-1780DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1563.86nm,80km,LC | 17 | 191.7 | 1563.86 |
| DWDM-XFP-63.05 | OXD10G-1880DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1563.05nm,80km,LC | 18 | 191.8 | 1563.05 |
| DWDM-XFP-62.23 | OXD10G-1980DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1562.23nm,80km,LC | 19 | 191.9 | 1562.23 |
| DWDM-XFP-61.42 | OXD10G-2080DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1561.42nm,80km,LC | 20 | 192.0 | 1561.42 |
| DWDM-XFP-60.61 | OXD10G-2180DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1560.61nm,80km,LC | 21 | 192.1 | 1560.61 |
| DWDM-XFP-59.79 | OXD10G-2280DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1559.79nm,80km,LC | 22 | 192.2 | 1559.79 |
| DWDM-XFP-58.98 | OXD10G-2380DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1558.98nm,80km,LC | 23 | 192.3 | 1558.98 |
| DWDM-XFP-58.17 | OXD10G-2480DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1558.17nm,80km,LC | 24 | 192.4 | 1558.17 |
| DWDM-XFP-57.36 | OXD10G-2580DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1557.36nm,80km,LC | 25 | 192.5 | 1557.36 |
| DWDM-XFP-56.55 | OXD10G-2680DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1556.55nm,80km,LC | 26 | 192.6 | 1556.55 |
| DWDM-XFP-55.75 | OXD10G-2780DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1555.75nm,80km,LC | 27 | 192.7 | 1555.75 |
| DWDM-XFP-54.94 | OXD10G-2880DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1554.94nm,80km,LC | 28 | 192.8 | 1554.94 |
| DWDM-XFP-54.13 | OXD10G-2980DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1554.13nm,80km,LC | 29 | 192.9 | 1554.13 |
| DWDM-XFP-53.33 | OXD10G-3080DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1553.33nm,80km,LC | 30 | 193.0 | 1553.33 |
| DWDM-XFP-52.52 | OXD10G-3180DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1552.52nm,80km,LC | 31 | 193.1 | 1552.52 |
| DWDM-XFP-51.72 | OXD10G-3280DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1551.72nm,80km,LC | 32 | 193.2 | 1551.72 |
| DWDM-XFP-50.92 | OXD10G-3380DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1550.92nm,80km,LC | 33 | 193.3 | 1550.92 |
| DWDM-XFP-50.12 | OXD10G-3480DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1550.12nm,80km,LC | 34 | 193.4 | 1550.12 |
| DWDM-XFP-49.32 | OXD10G-3580DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1549.32nm,80km,LC | 35 | 193.5 | 1549.32 |
| DWDM-XFP-48.51 | OXD10G-3680DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1548.51nm,80km,LC | 36 | 193.6 | 1548.51 |
| DWDM-XFP-47.72 | OXD10G-3780DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1547.72nm,80km,LC | 37 | 193.7 | 1547.72 |
| DWDM-XFP-46.92 | OXD10G-3880DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1546.92nm,80km,LC | 38 | 193.8 | 1546.92 |
| DWDM-XFP-46.12 | OXD10G-3980DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1546.12nm,80km,LC | 39 | 193.9 | 1546.12 |
| DWDM-XFP-45.32 | OXD10G-4080DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1545.32nm,80km,LC | 40 | 194.0 | 1545.32 |
| DWDM-XFP-44.53 | OXD10G-4180DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1544.53nm,80km,LC | 41 | 194.1 | 1544.53 |
| DWDM-XFP-43.73 | OXD10G-4280DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1543.73nm,80km,LC | 42 | 194.2 | 1543.73 |
| DWDM-XFP-42.94 | OXD10G-4380DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1542.94nm,80km,LC | 43 | 194.3 | 1542.94 |
| DWDM-XFP-42.14 | OXD10G-4480DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1542.14nm,80km,LC | 44 | 194.4 | 1542.14 |
| DWDM-XFP-41.35 | OXD10G-4580DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1541.35nm,80km,LC | 45 | 194.5 | 1541.35 |
| DWDM-XFP-40.56 | OXD10G-4680DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1540.56nm,80km,LC | 46 | 194.6 | 1540.56 |
| DWDM-XFP-39.77 | OXD10G-4780DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1539.77nm,80km,LC | 47 | 194.7 | 1539.77 |
| DWDM-XFP-38.98 | OXD10G-4880DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1538.98nm,80km,LC | 48 | 194.8 | 1538.98 |
| DWDM-XFP-38.19 | OXD10G-4980DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1538.19nm,80km,LC | 49 | 194.9 | 1538.19 |
| DWDM-XFP-37.40 | OXD10G-5080DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1537.4nm,80km,LC | 50 | 195.0 | 1537.4 |
| DWDM-XFP-36.61 | OXD10G-5180DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1536.61nm,80km,LC | 51 | 195.1 | 1536.61 |
| DWDM-XFP-35.82 | OXD10G-5280DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1535.82nm,80km,LC | 52 | 195.2 | 1535.82 |
| DWDM-XFP-35.04 | OXD10G-5380DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1535.04nm,80km,LC | 53 | 195.3 | 1535.04 |
| DWDM-XFP-34.25 | OXD10G-5480DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1534.25nm,80km,LC | 54 | 195.4 | 1534.25 |
| DWDM-XFP-33.47 | OXD10G-5580DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1533.47nm,80km,LC | 55 | 195.5 | 1533.47 |
| DWDM-XFP-32.68 | OXD10G-5680DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1532.68nm,80km,LC | 56 | 195.6 | 1532.68 |
| DWDM-XFP-31.90 | OXD10G-5780DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1531.9nm,80km,LC | 57 | 195.7 | 1531.9 |
| DWDM-XFP-31.12 | OXD10G-5880DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1531.12nm,80km,LC | 58 | 195.8 | 1531.12 |
| DWDM-XFP-30.33 | OXD10G-5980DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1530.33nm,80km,LC | 59 | 195.9 | 1530.33 |
| DWDM-XFP-29.55 | OXD10G-6080DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1529.55nm,80km,LC | 60 | 196.0 | 1529.55 |
| DWDM-XFP-28.77 | OXD10G-6180DCR-CSC | 10GBASE-ZR DWDM XFP Transceiver,SMF,1528.77nm,80km,LC | 61 | 196.1 | 1528.77 |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Cisco.
