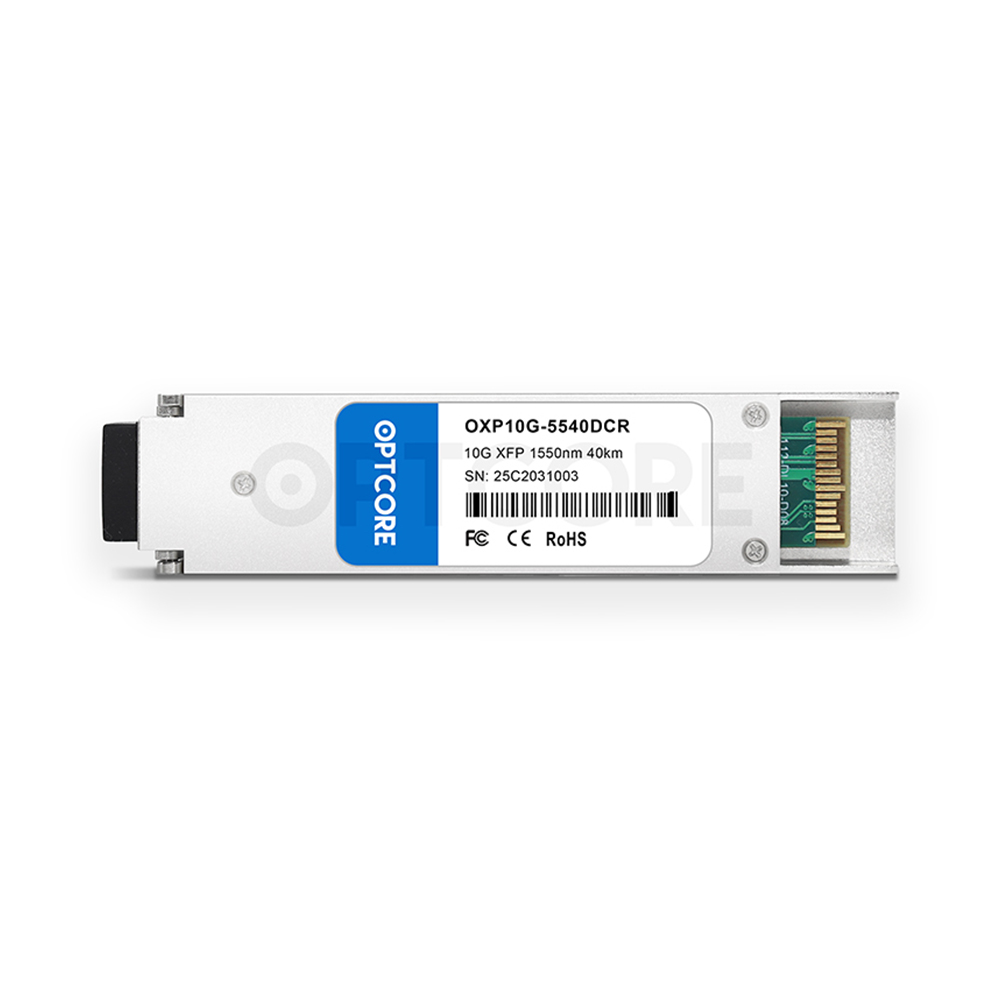

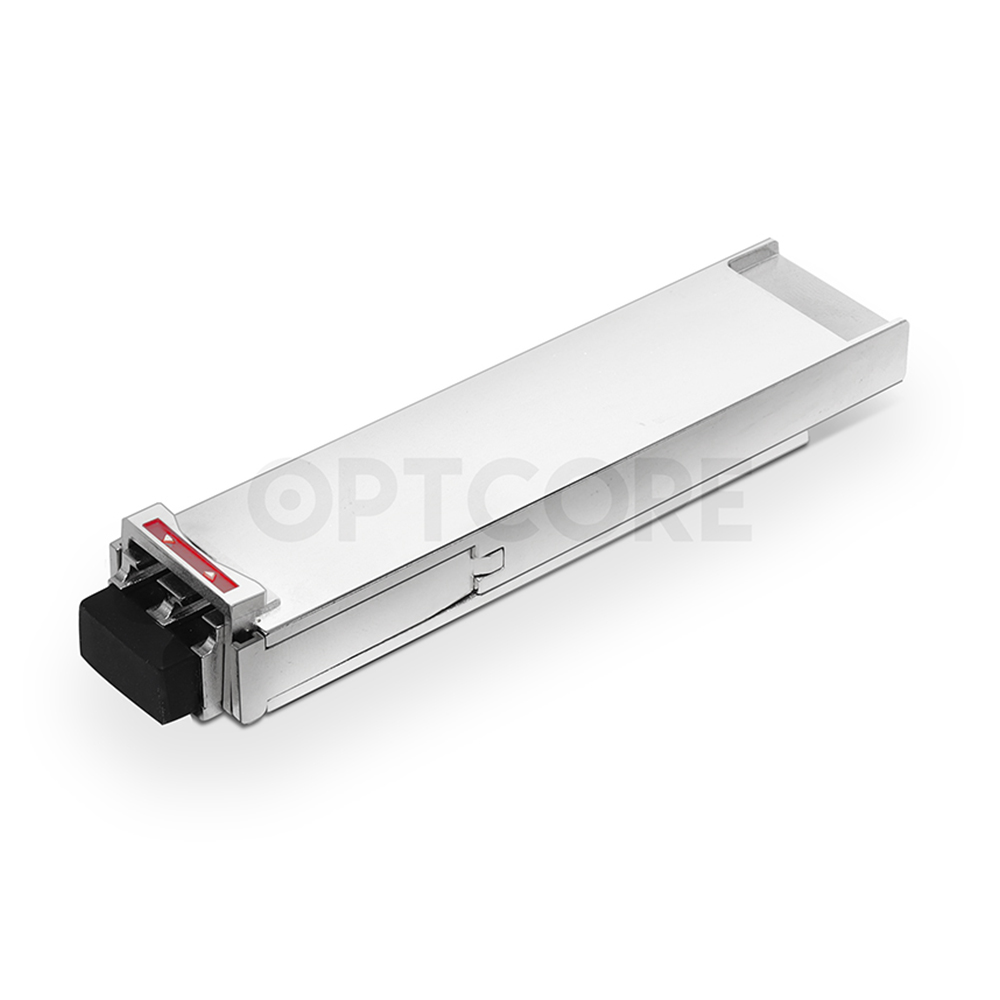

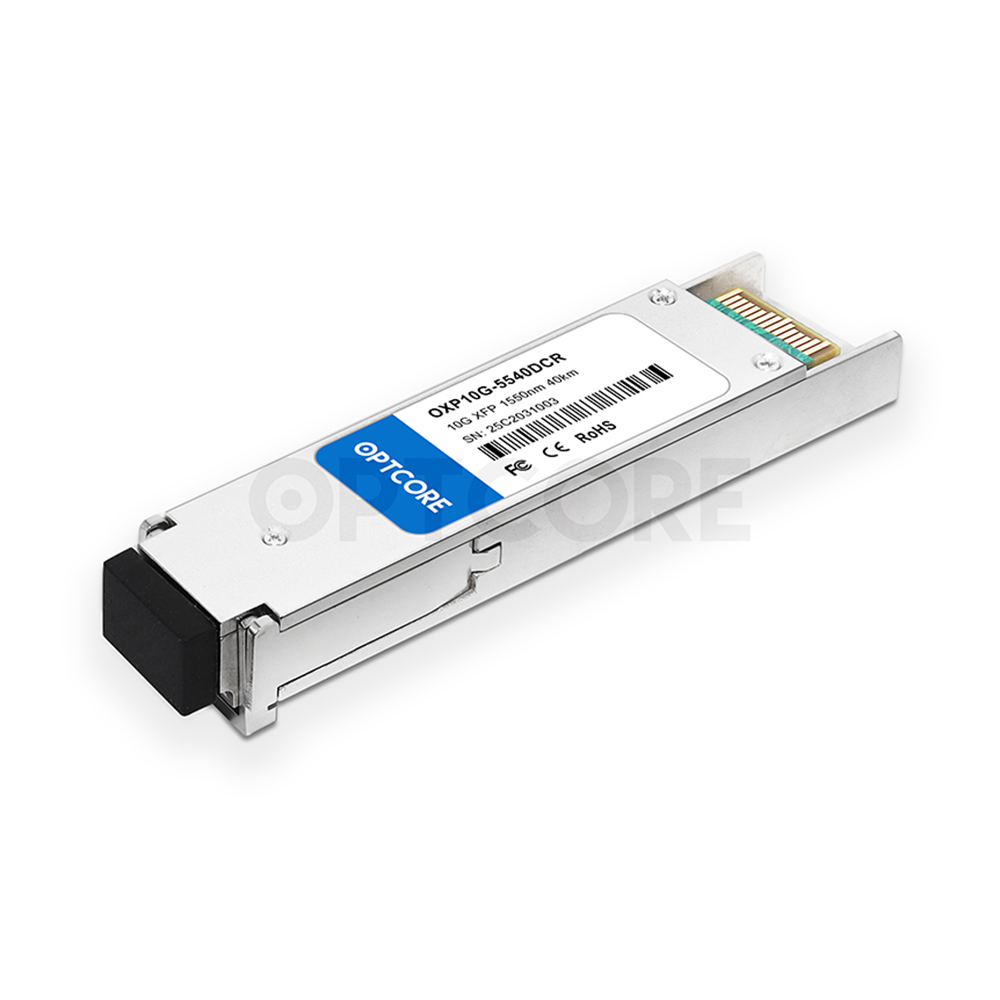

Avaya AA1403013-E6 Compatible 10GBASE-ER XFP Transceiver
US$ 169.00 (Excl. VAT)
10GBASE-ER XFP Module (SMF, 1550nm, 40km, LC, DDMI) for use with Avaya Switches and Routers.
Avaya AA1403013-E6 Compatible 10GBASE-ER XFP Module (Single mode, 1550nm, 40km, LC, DDMI)
This XFP module is suitable for use with Alcatel-Lucent network equipment and is equivalent to Avaya part number AA1403013-E6. It supports data-rate of 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW) over single mode fiber cable. The module is programmed to works with a wide range of Avaya Switches and Routers, allowing it to be an ideal equivalent to a high-cost Avaya original XFP transceiver.
Features
• Functionally identical to Avaya AA1403013-E6
• Hot-pluggable XFP footprint
• Duplex LC fiber connector
• 10Gb/s serial optical interface compliant to 802.3ae
• Uncooled 1550nm EML transmitter, PIN photo-detector
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | AA1403013-E6 | Optcore Part Number | OXP10G-5540DCR-AVA |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | EML/PIN |
| Transmitter Power | -2 ~ 3 dBm | Extinction ratio | > 6 dB |
| Receiver Sensitivity | < -16 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-ER/10GBASE-EW Ethernet
10G Fibre Channel 10G Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Avaya.
| Weight | 0.05 kg |
|---|
