Allied Telesis AT-XPER80 Compatible 10GBASE-ZR 1550nm 80km XFP Transceiver
US$ 380.00 (Excl. VAT)
Good quality Allied Telesis AT-XPER80 compatible 10GBASE-ZR XFP Transceiver (SMF, 1550nm, 80km, LC, DDM).

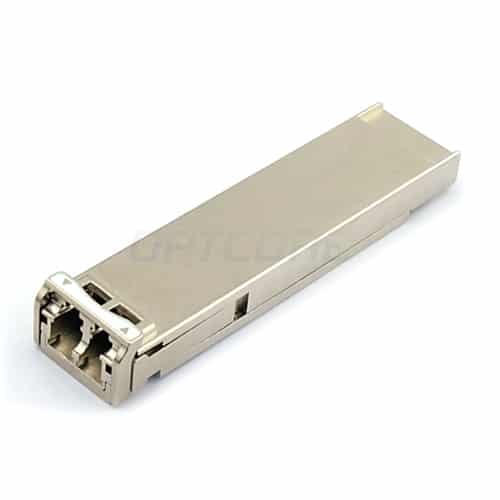

Allied Telesis AT-XPER80 Compatible 10GBASE-ZR SMF 1550nm 80km XFP Optical Transceiver Module
Optcore’s OXP10G-5580DCR-ATE is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fiber Channel. It provides 10-Gigabit connectivity up to 80km on single mode fiber (SMF) at 1550nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Additionally, the OXP10G-5580DCR-ATE XFP transceiver is programmed to be compatible with a wide range of Allied Telesis network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost Allied Telesis AT-XPER80 10GBASE-ZR XFP module.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ER/EW
• 1550nm EML transmitter, APD receiver
• Distance up to 80km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | AT-XPER80 | Optcore Part Number | OXP10G-5580DCR-ATE |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | EML/APD |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 7 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > -7 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• SwitchBlade 4000 Layer 3 Modular Switch – ATSB104- XX – AT-SB4442
• SwitchBlade 4000 Layer 3 Modular Switch – ATSB108- XX – AT-SB4442
• SwitchBlade 4000 Series – AT-SB4004
• SwitchBlade 4000 Series – AT-SB4151
• SwitchBlade 4000 Series – AT-SB4162
• SwitchBlade 4000 Series – AT-SB4215
• SwitchBlade 4000 Series – AT-SB4352
• SwitchBlade 4000 Series – AT-SB4412
• SwitchBlade 4000 Series – AT-SB4442
• SwitchBlade 4000 Series – AT-SB4008
• SwitchBlade 4000 Series – AT-SB4152
• SwitchBlade 4000 Series – AT-SB4211A
• SwitchBlade 4000 Series – AT-SB4311
• SwitchBlade 4000 Series – AT-SB4411A
• SwitchBlade 4000 Series – AT-SB4441A
• SwitchBlade 4000 Series – AT-SB4541
• x600 Series Intelligent Layer 3+ Switch – AT-x600-24Ts
• x600 Series Intelligent Layer 3+ Switch – AT-x600-24Ts-POE
• x600 Series Intelligent Layer 3+ Switch – AT-x600-24Ts-POE+
• x600 Series Intelligent Layer 3+ Switch – AT-x600-24Ts/XP
• x600 Series Intelligent Layer 3+ Switch – AT-x600-48Ts
• x900 Advanced Layer 3 Switch Series – AT-x900-12XT/S-yy
• x900 Advanced Layer 3 Switch Series – AT-x900-12XT/S-yy – AT-XEM-12S
• x900 Advanced Layer 3 Switch Series – AT-x900-12XT/S-yy- AT-XEM-12Sv2
• x900 Advanced Layer 3 Switch Series – AT-x900-24XS-xx
• x900 Advanced Layer 3 Switch Series – AT-x900-24XS-xx – AT-XEM-12S
• x900 Advanced Layer 3 Switch Series – AT-x900-24XS-xx- AT-XEM-12Sv2
• x900 Advanced Layer 3 Switch Series – AT-x900-24XT-N-85 – AT-XEM-12S
• x900 Advanced Layer 3 Switch Series – AT-x900-24XT-N-85- AT-XEM-12Sv2
• x900 Advanced Layer 3 Switch Series – AT-x900-24XT-xx – AT-XEM-12S
• x900 Advanced Layer 3 Switch Series – AT-x900-24XT-xx – AT-XEM-12Sv2
• x900 Advanced Layer 3 Switch Series – AT-x900-48FE
• x900 Advanced Layer 3 Switch Series – AT-x900-48FS
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Allied Telesis.
