8Gb/s Fibre Channel 1310nm 10km XFP LR Transceiver
US$ 62.00 (Excl. VAT)
Good quality 8G Fibre Channel XFP LR Transceiver Module (SMF, 1310nm, 10km, LC, DDM).
Available on backorder

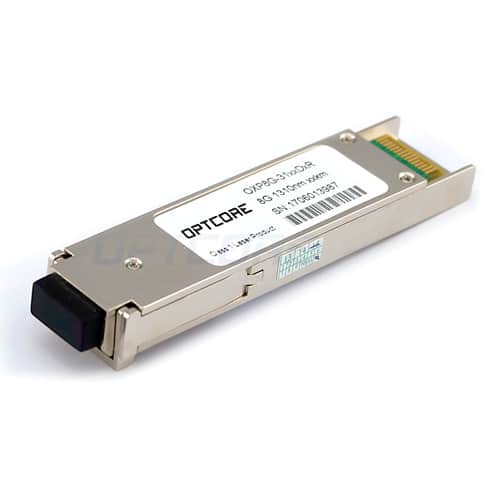

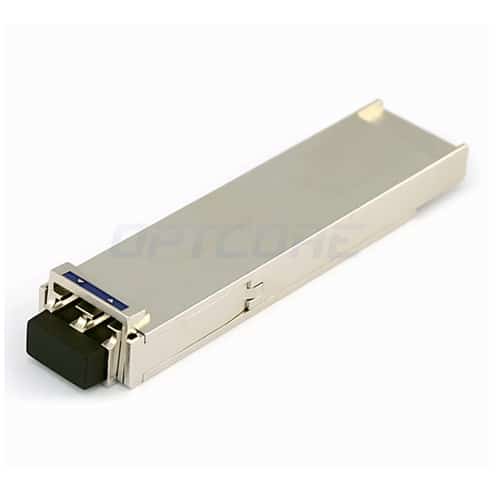

8Gb/s Fibre Channel 1310nm 10km XFP LR Optical Transceiver Module
Optcore’s OXP8G-3110DCR is a high performance and cost-effective XFP LR transceiver module for 8 Gigabit Fibre Channel (8GFC) applications, which provides links up to 10km over single mode fiber. This 8G XFP transceiver module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into duplex LC optical connector. The OXP8G-3110DCR transceiver module complies with XFP MSA specifications and Fiber Channel FC-PI-4 800-SM-LC-L specifications. It’s suitable for use with SAN switches, routers, network interface cards (NICs) and other storage networking equipment that support XFP slot.
The 8G fiber channel XFP LR transceiver module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All SFP+ transceivers module are Class 1 laser products comply with FDA/CDRH and IEC-60825 standards.
Features
• Hot-pluggable XFP footprint
• Up to 8.5 Gb/s Data Link
• 1310nm DFB laser and PIN receiver
• Distance up to 10km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single +3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OXP8G-3110DCR |
| Form Factor | XFP | Data Rate | 8.5 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters 2G/4G/8G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.05 kg |
|---|
