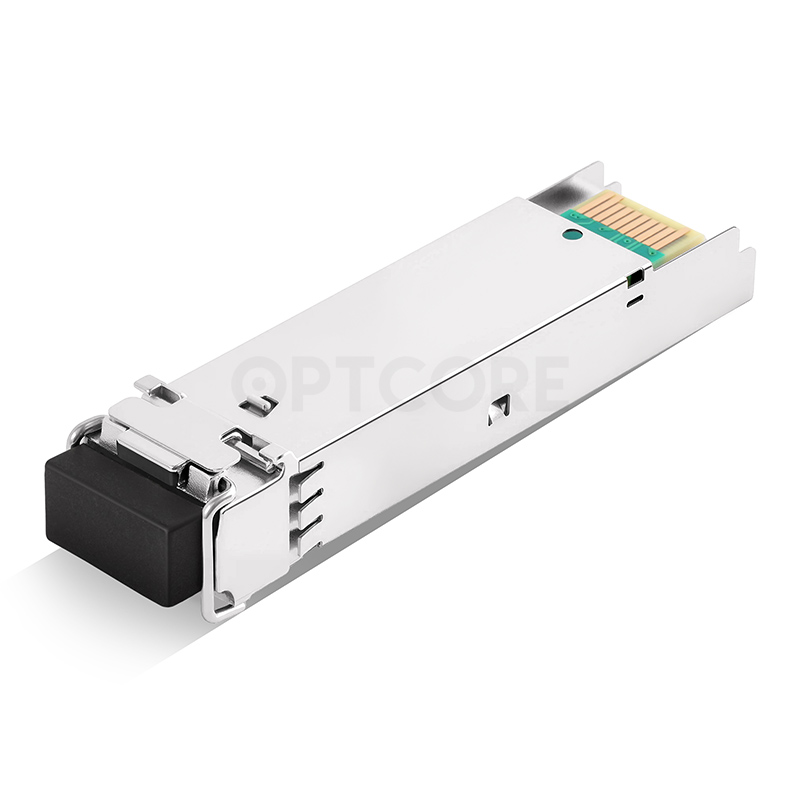

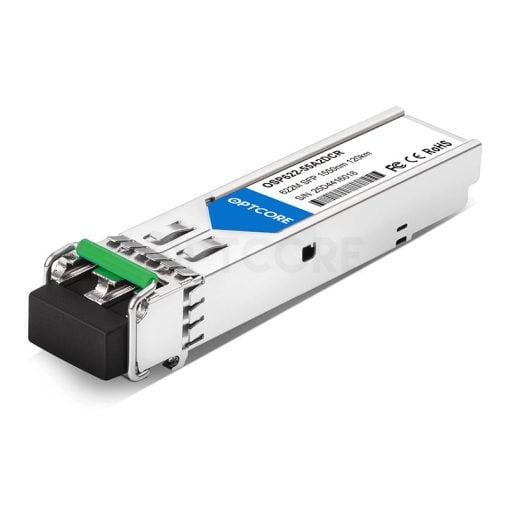

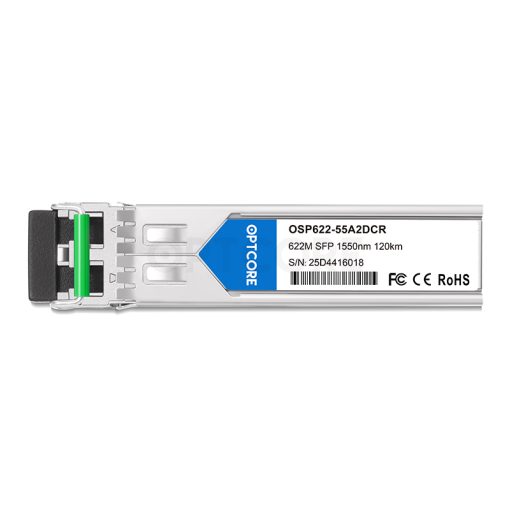

Optcore 622Mbps SDH STM-4&SONET OC-12 SFP 1550nm 120km Transceiver
US$ 59.00 (Excl. VAT)
Good quality 622Mbps SFP Transceiver Module for SDH STM-4/SONET OC-12 (SMF, 1550nm, 120km, LC, Optional DDM).
622Mbps SMF 1550nm 120km SFP Optical Transceiver Module for SDH STM-4/SONET OC-12
Optcore’s OSP622-55A2DCR is a high-performance small form factor pluggable (SFP) transceiver module for duplex optical data
communications such as SDH STM-4/SONET OC-12 and 622Mb/s ATM ultra long reach the application. This SFP transceiver module provides 120km transmission distance over single mode fiber at a nominal wavelength of 1550nm. The transmitter section uses a 1550nm DFB laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed APD photodiode (PD) and trans-impedance preamplifier. The 622Mbps SFP module series is fully compliant with SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.
Features
• Hot-Pluggable SFP package with LC Duplex Connector
• Compliant with SFP MSA standard specification
• Support 622Mb/s data links
• Up to 120km on 9/125µm single mode fiber
• 1550nm DFB laser transmitter and APD receiver
• +3.3V single power supply
• Low EMI and excellent ESD protection
• ROHS compliant and Lead-Free
• Optional Digital Diagnostic Monitor Interface
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP622-55A2DCR |
| Form Factor | SFP (Mini-GBIC) | Data Rate | STM-4/OC-3 622Mb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 120 km | Optical Components | DFB/APD |
| Transmitter Power | 0～5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -32 dBm | Receiver Overload | > -8 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application |
SONET OC-12 LR-2 SDH STM-4 L4.2 622Mb/s ATM Other optical transmission systems |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OSP622-55A2NCR | 622Mb/s SFP Optical Transceiver, Single mode, 1550nm, 120km, LC, 0ºC~+70ºC |
| OSP622-55A2DCR | 622Mb/s SFP Optical Transceiver, Single mode, 1550nm, 120km, LC, DDM, 0ºC~+70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
