52Mbps Multimode 850nm 2km 1×9 TTL Transceiver
Price range: US$ 15.90 through US$ 16.30 (Excl. VAT)
Good quality 52Mbps TTL 1×9 Optical Transceiver (MMF, 850nm, 2km, Duplex SC/FC/ST, 3.3V or 5V).
52Mbps Multimode 850nm 2km Duplex SC/FC/ST 1×9 TTL Fiber Optical Transceiver Module
The OPT52-852xxxR family of 1×9 optical transceivers from Optcore provides the network system designer and manufacturers with products to implement a range of SONET/SDH equipment designs at the low data rate of 52 Mbps. This fiber optic transceivers series are supplied in the industry-standard 1×9 SIP package style with a duplex SC, ST, FC, or Pigtails type connector interface. They are high-performance, cost-effective optical transceiver modules with a TTL data interface that supports a data rate of 52Mbps and a 2km transmission distance over multi-mode fiber cable (MMF). The OPT52-852xxxR series TTL 1×9 optical transceivers help you convert copper signals to optical fiber. They are usually used for data communications over fiber like ATM/SONET/SDH applications.
Features
• Duplex SC/ST/FC receptacle multi-mode optical interface
• Industry-standard 1×9 package
• Single +3.3V or +5V Power Supply
• Operating wavelength 850nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate up to 52 Mbps
• Standard TTL/LVTTL signal detection output
• Operating case temperature: 0 ~ +70°C
• Class 1 Laser Product, Compliant with IEC825, FDA21,CFR1040.10 and CFR1040.11
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT52-852xxCR | Form Factor | 1×9 |
| Data Rate | 52 Mb/s | Wavelength | 850 nm |
| Max Distance | 2 km | Fiber Type | Multi Mode (MMF) |
| Voltage | 3.3V or 5V | Optical Components | VCSEL/PIN |
| Transmitter Power | -15 ~ -8 dBm | Extinction ratio | > 10 dB |
| Receiver Sensitivity | < -28 dBm | Connector | Duplex SC,ST or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.02 kg |
| Application | ATM/SONET/SDH equipment interconnect | Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |

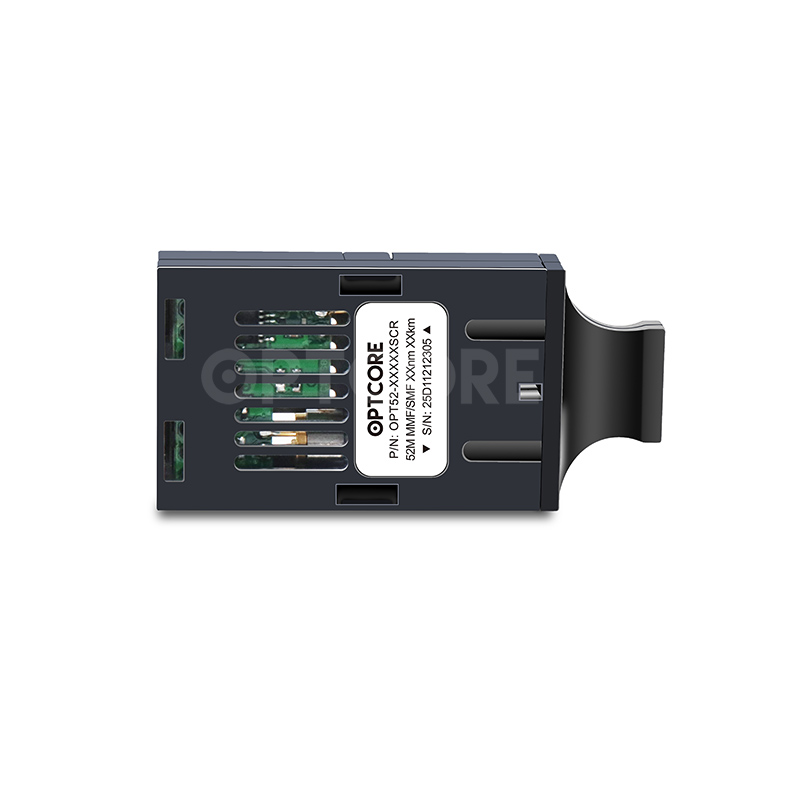

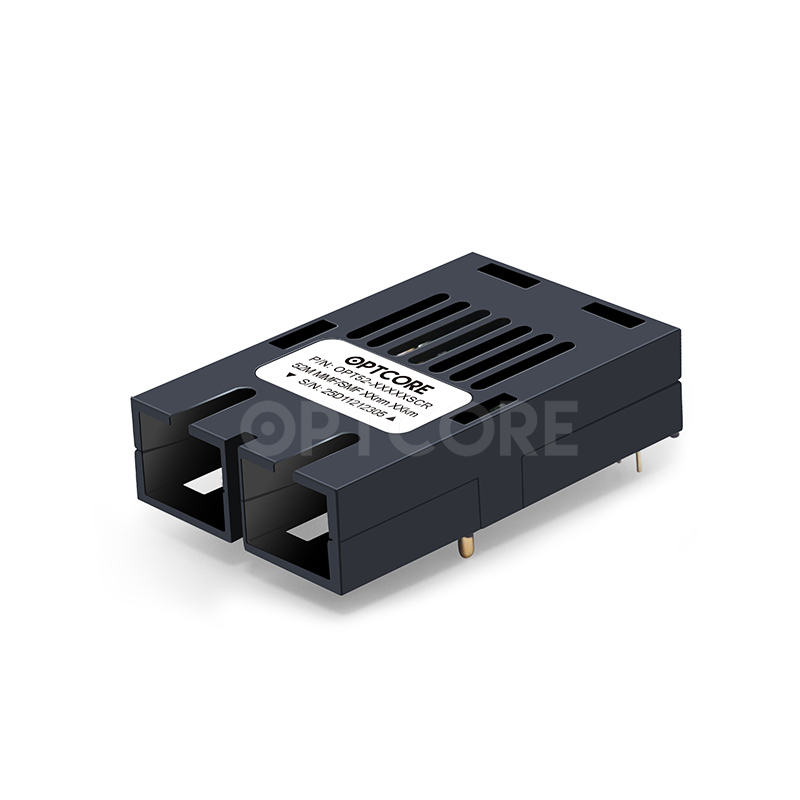

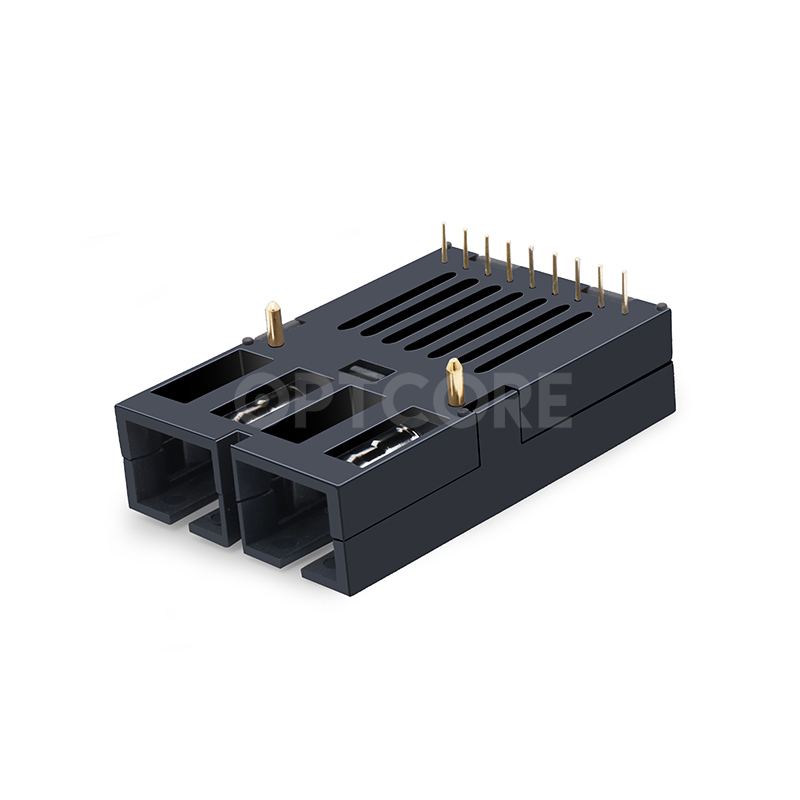

| OPT52-8525SCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 5V, 0ºC~70ºC, SC |

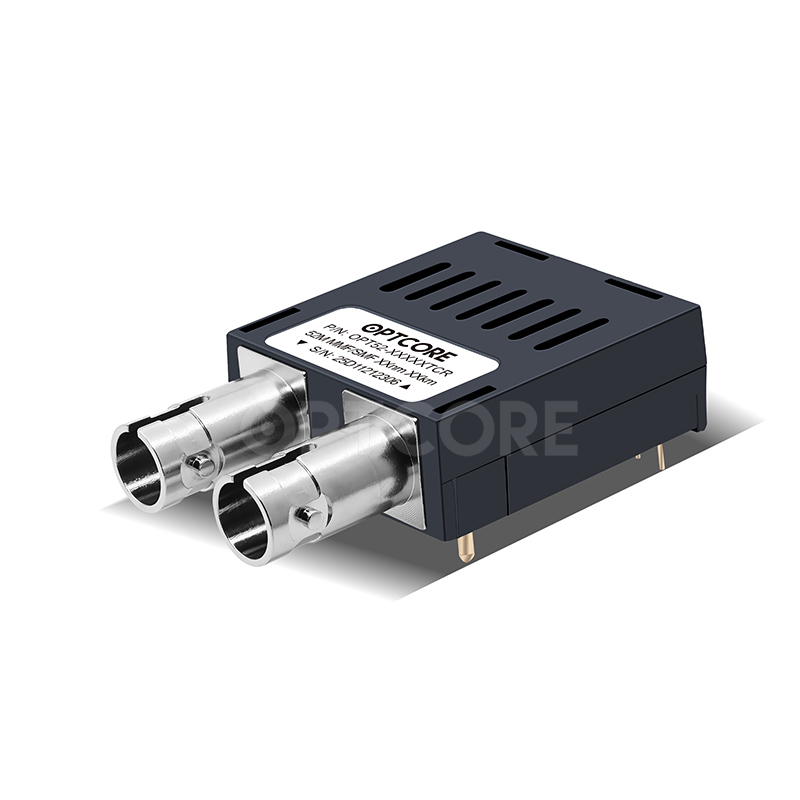

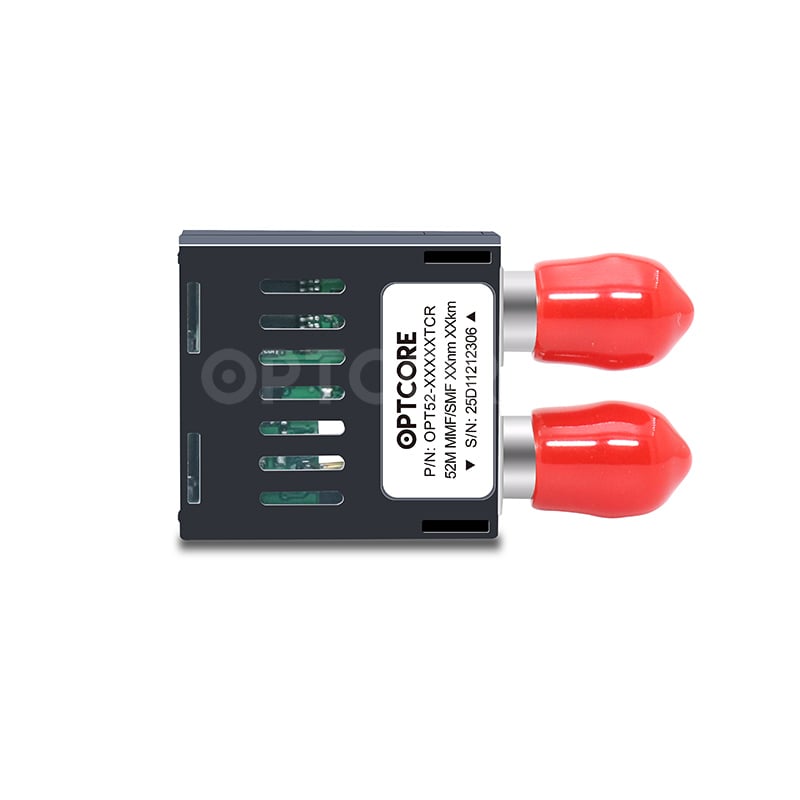

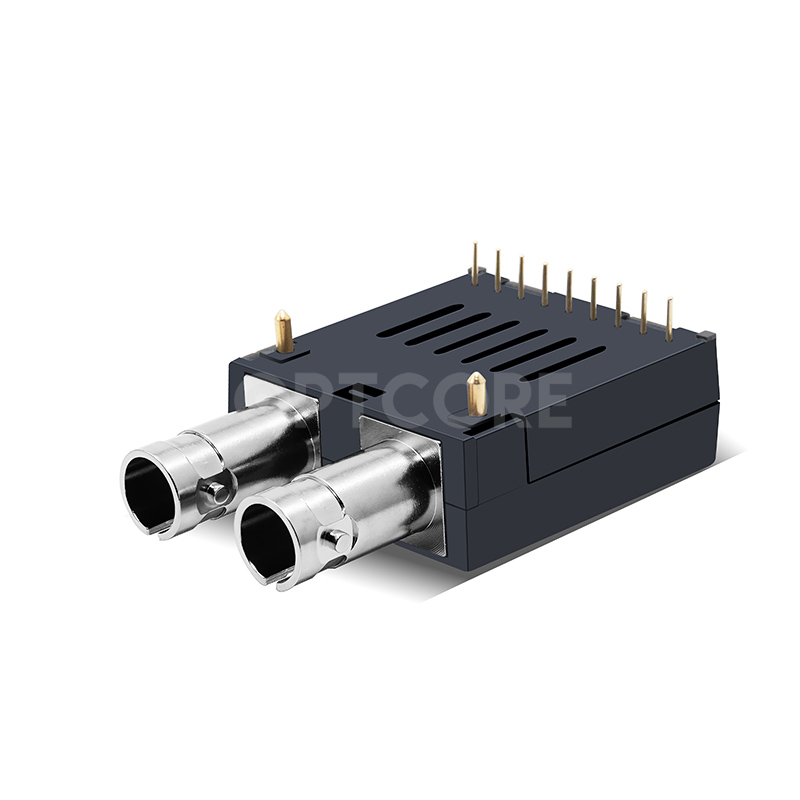

| OPT52-8525TCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 5V, 0ºC~70ºC, ST |

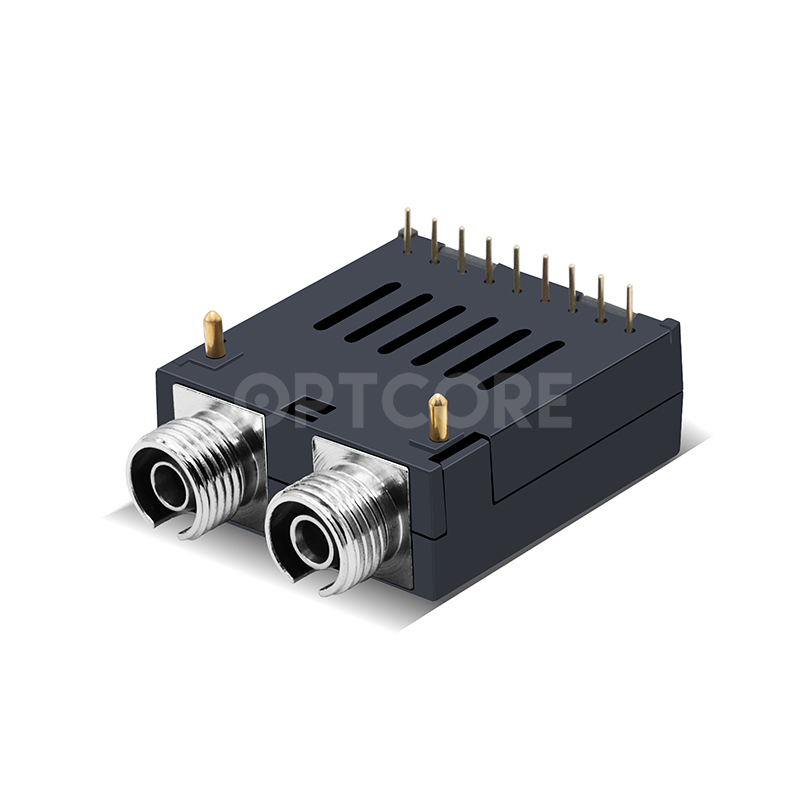

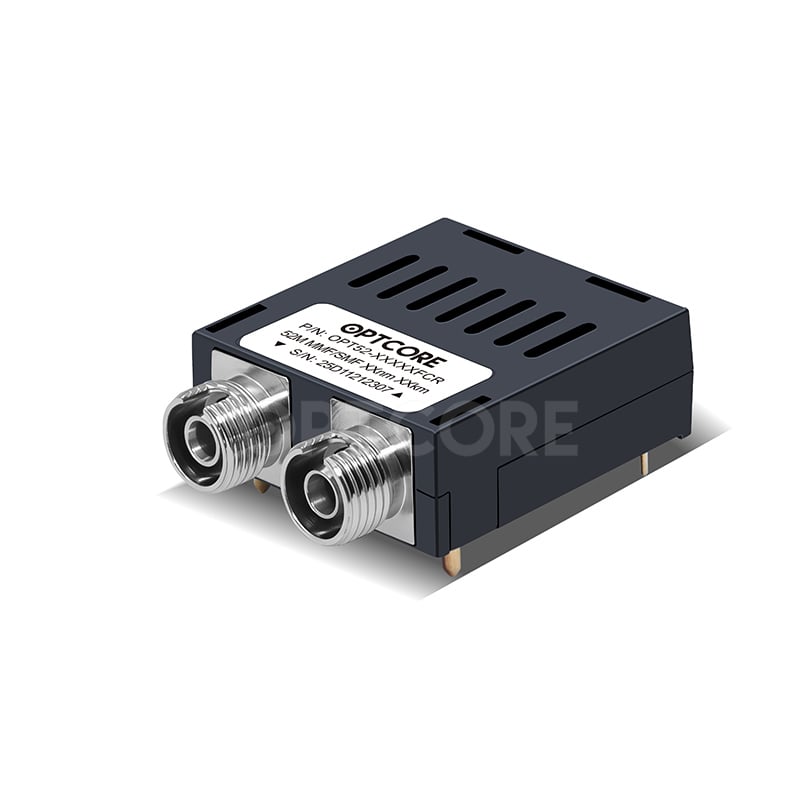

| OPT52-8525FCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 5V, 0ºC~70ºC, FC |
| OPT52-8525PCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 5V, 0ºC~70ºC, FC Pigtail |
| OPT52-8523SCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 3.3V, 0ºC~70ºC, SC |
| OPT52-8523TCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 3.3V, 0ºC~70ºC, ST |
| OPT52-8523FCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 3.3V, 0ºC~70ºC, FC |
| OPT52-8523PCR | 52Mbps 1×9 TTL Transceiver, Multimode, 850nm, 2km, 3.3V, 0ºC~70ºC, FC Pigtail |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
