3G-SDI Video SFP 1310nm 10km Single Channel Optical Transmitter Module
US$ 24.00 (Excl. VAT)
Good quality 3G-SDI Video SFP Single Channel Optical Transmitter(SMF, 1310nm, 10km, LC, MSA Compliant).
Available on backorder

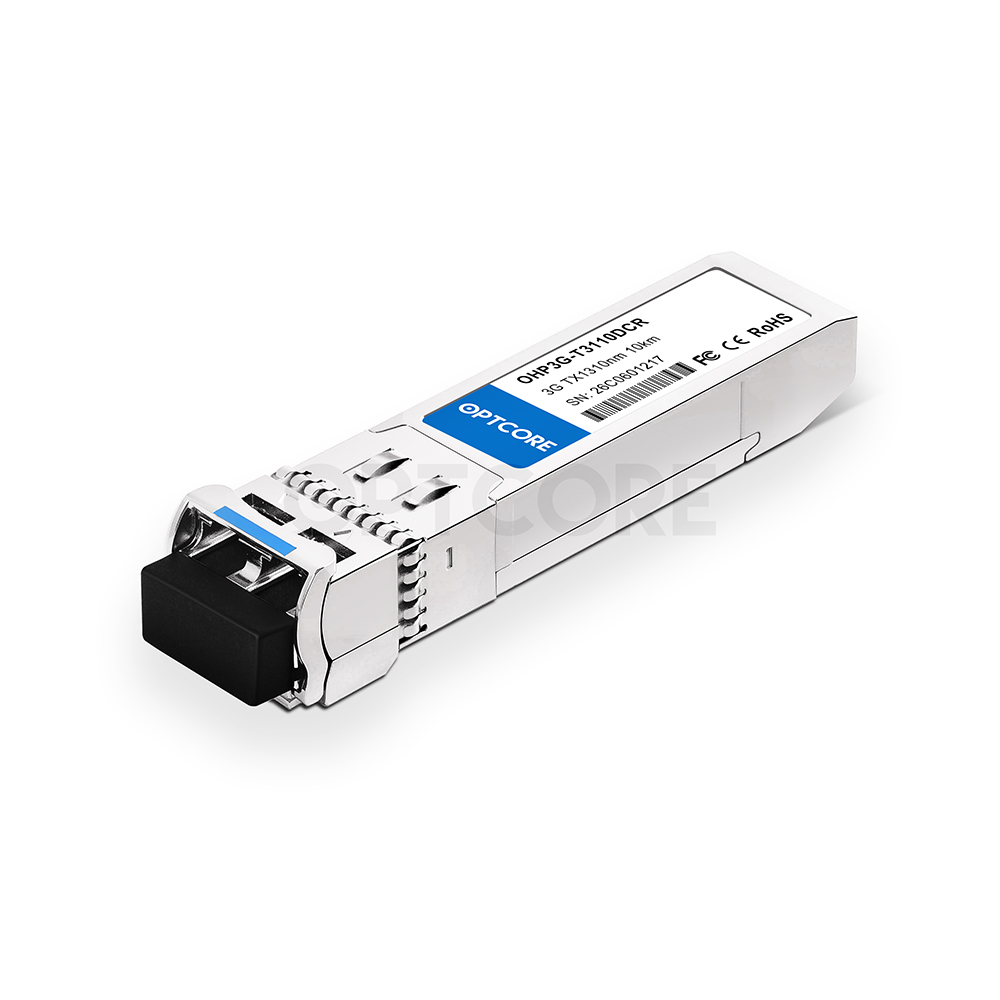

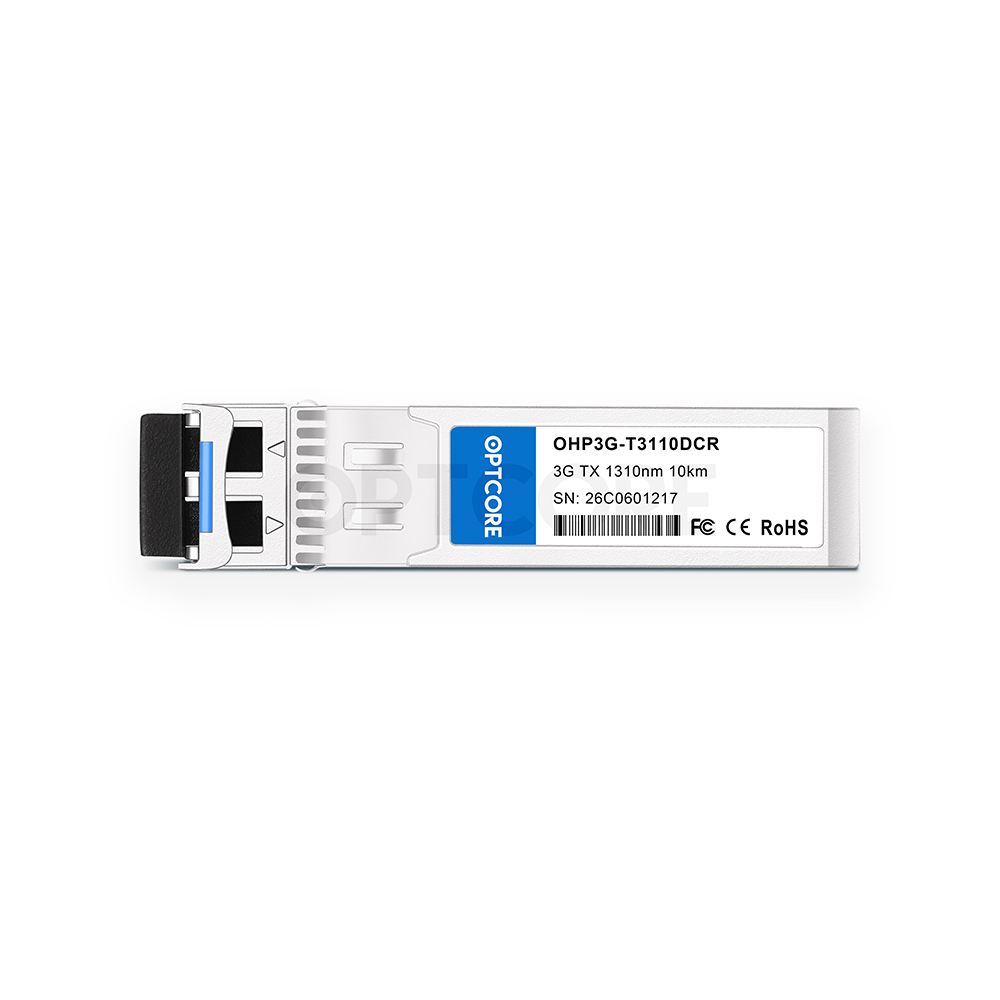

3G-SDI Video SFP Single-Channel Optical Transmitter Module (SMF, 1310nm, 10km, LC, DOM, MSA)
Optcore 3Gb/s HD digital video SMPTE SFP transmitter is a high-performance, cost-effective optical module for single-channel video transmission applications over single-mode fiber (SMF). The optical transmitter module is designed for data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. It provides the maximum transmission distance of 10km over single-mode fiber under worst-case conditions and 3Gbps pathological signals.
The OHP3G-T3110DCR provides extensive operational status monitoring (also called DDMI) through an I2C interface. Output optical power, bias current, supply voltage, and operating temperature are monitored. If a parameter monitored is outside the pre-defined range, the alarm flag associated with the parameter will be raised. The OHP3G-T3110xCR is a Class 1 laser product per FDA 21CFR 1040.10, 1040.11, and IEC-60825 standards.
Features
• SMPTE 297-2006 Compatible Features
• Speed from 50 Mbps to 2.97 Gbps
• Distance up to 10km for 3G-SDI
• Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
• Single 1310nm FP laser
• Hot-pluggable SFP footprint
• SFP MSA compliant
• Digital Diagnostic functions available through the I2C interface
• Single +3.3V power supply
• Low Power Consumption
• Operating case temperature: 0 to +70°C
• RoHS compliant and Lead-Free
General Specification
| Product Series | 3G-SDI Video SFP Transceiver | Part Number | OHP3G-T3110DCR |
| Form Factor | Video SFP Singel Channel Transmitter | Data Rate | 3 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | FP |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 6 dB |
| Receiver Sensitivity | N/A | Receiver Overload | N/A |
| Connector | Single LC | Digital Diagnostic Monitoring | Support as default |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | SMPTE 424M (2.97Gb/s)
SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
Standards Reference | INF-8074i SFP (Small Formfactor Pluggable) Transceiver SFF-8472 Diagnostic Monitoring Interface for Transceiver SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI) SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI) SMPTE 344M-2000 540 Mbps Serial Digital Interface SMPTE 424M-2006 3Gbps Signal/Data Serial Interface (3G-SDI) |
Transmitter Specification
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical | |||||
| Optical Transmit Power | Po | -5 | – | 0 | dBm |
| Optical Center Wavelength | λC | 1260 | 1310 | 1360 | nm |
| Spectral Width (-20dB) | σ | – | – | 4 | nm |
| Extinction Ratio | ER | 6 | – | – | dB |
| Optical Rise Time/Fall Time | tr/tf | – | – | 135 | Ps (1) |
| Electrical | |||||
| Differential Input Voltage | VIH -VIL | 0.3 | – | 2.2 | V |
| TX Disable Input Voltage–Low | TDIS,L | 0 | – | -0.8 | V |
| TX Disable Input Voltage–High | TDIS,H | 2.0 | – | VCC | V |
| TX Disable Assert Time | TASSERT | – | – | 10 | μs |
| TX Disable Deassert Time | TDEASSERT | – | – | 1 | ms |
| TX Fault Output Voltage — Low | TFAULT,L | 0 | – | -0.8 | V |
| TX Fault Output Voltage — High | TFAULT,H | 2.0 | – | VCC | V |

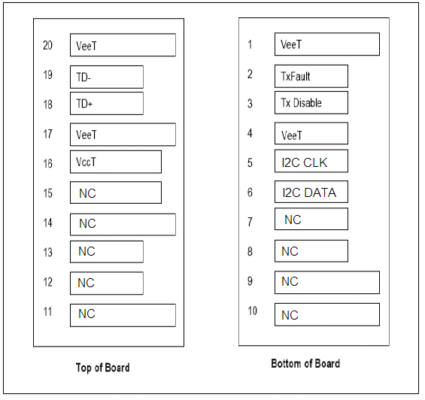

Pin Definition
| Pin No. | Name | Function |
| 1 | VeeT | Transmitter Ground |
| 2 | TX Fault | Transmitter Fault Indication |
| 3 | TX Disable | Transmitter Disable |
| 4 | VeeT | Transmitter Ground |
| 5 | I2C CLK | SCL Serial Clock Signal |
| 6 | I2C DATA | SDA Serial Data Signal |
| 7 | N.C. | Not Connected |
| 8 | N.C. | Not Connected |
| 9 | N.C. | Not Connected |
| 10 | N.C. | Not Connected |
| 11 | N.C. | Not Connected |
| 12 | N.C. | Not Connected |
| 13 | N.C. | Not Connected |
| 14 | N.C. | Not Connected |
| 15 | N.C. | Not Connected |
| 16 | VccT | Transmitter Power |
| 17 | VeeT | Transmitter Ground |
| 18 | TD+ | Transmit Data In |
| 19 | TD- | Inv Transmit Data In |
| 20 | VeeT | Transmitter Ground |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
