3G-SDI Video SFP CWDM 1271~1611nm 40km Transceiver
US$ 99.00 (Excl. VAT)
Good quality 3G-SDI Video SFP CWDM Transceiver (SMF, 1271~1611nm, 40km, LC, MSA Compliant).

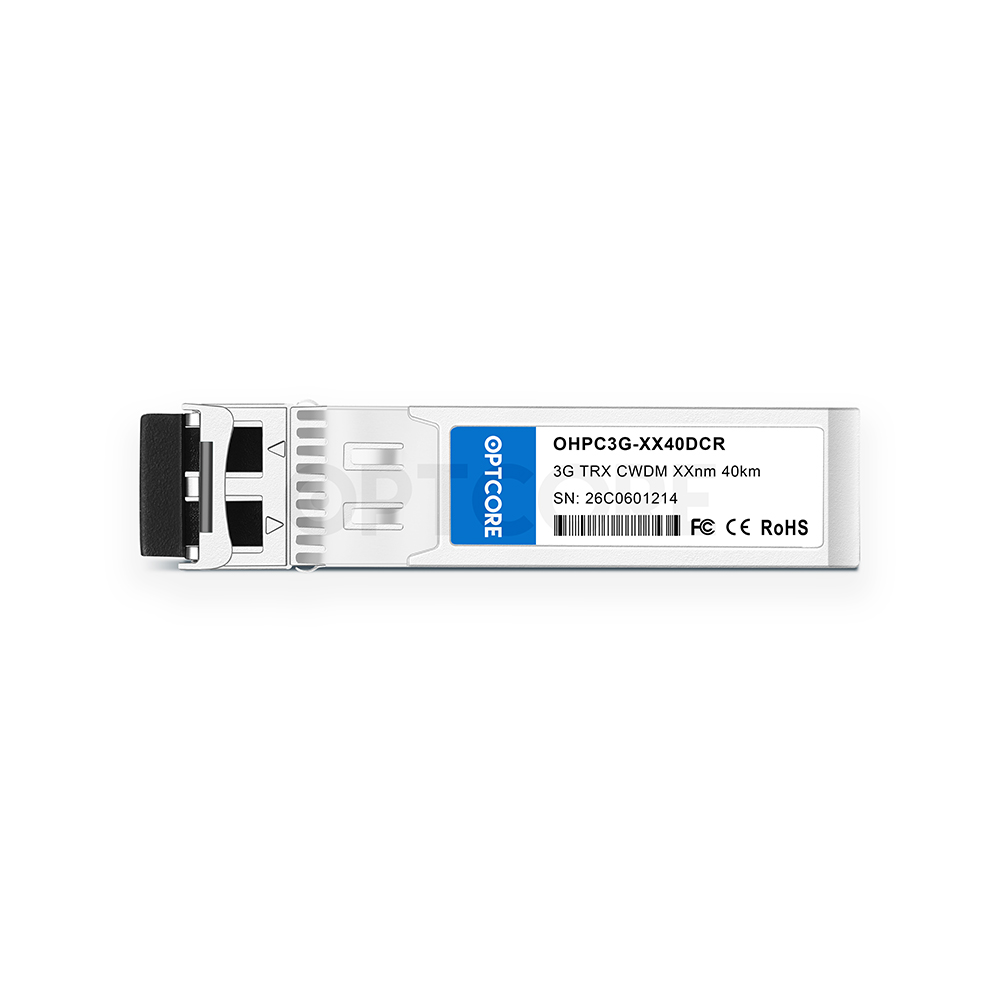

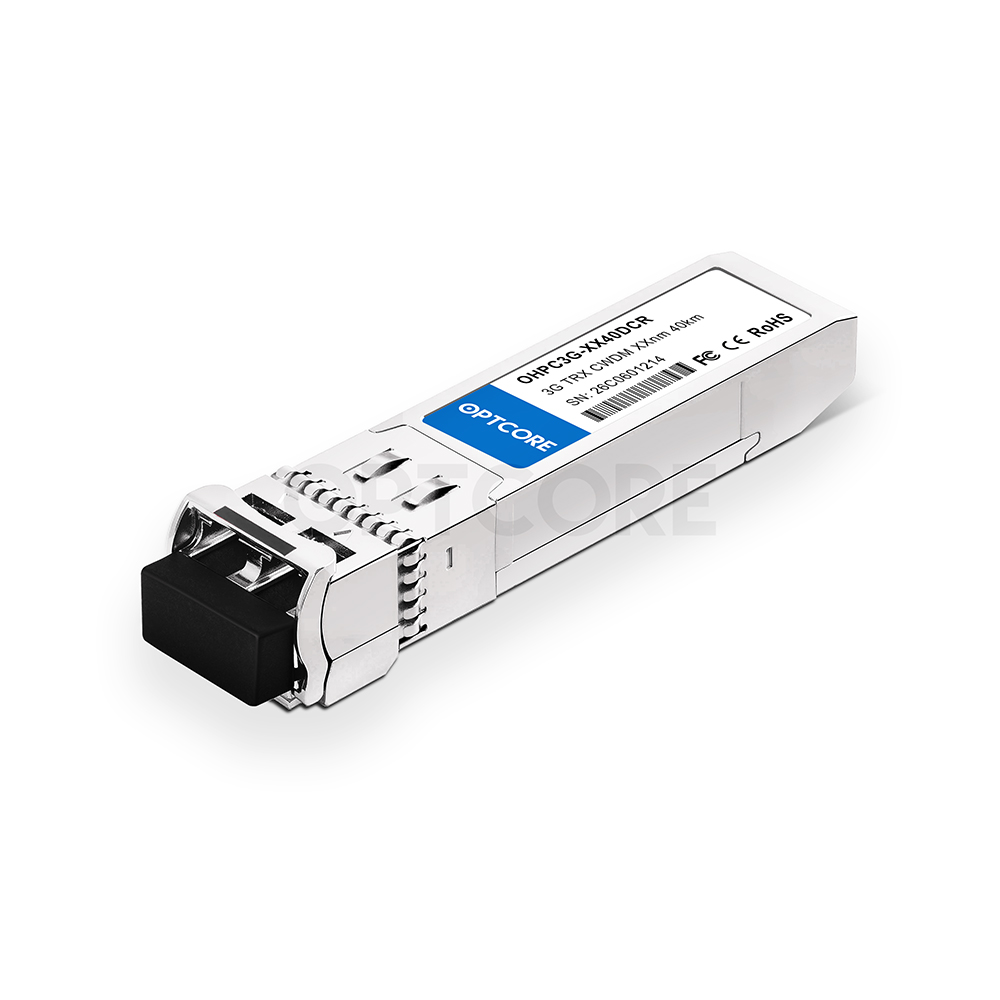

3G-SDI Video SFP CWDM Optical Transceiver Module (SMF, CWDM 1271~1611nm, 40km, LC, DOM, MSA)
Optcore OHPC3G-xx40DCR is a high-performance, cost-effective 3G-SDI CWDM optical transceiver module for long-reach video transmission applications over single-mode fiber (SMF). It provides the data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. It provides the maximum transmission distance of 10km over single-mode fiber at 3Gbps pathological signals. It is available for all 18 CWDM channels from 1271nm to 1611nm wavelengths, this helps the customer to increase the bandwidth of an existing video optical infrastructure without adding new fiber strands. This 3G SDI CWDM video SFP transceiver needs use with CWDM Multiplexer/Demultiplexer (CWDM Mux/Demux) that is separately sold by Optcore. The Pin definition of OHPC3G-xx40DCR is MSA compliant.
The OHPC3G-xx40DCR provides extensive operational status monitoring (also called DDMI) through an I2C interface. Output optical power, bias current, supply voltage, and operating temperature are monitored. If a parameter monitored is outside the pre-defined range, the alarm flag associated with the parameter will be raised. This 3G SDI CWDM video SFP module is Class I Laser products per FDA/CDRH and IEC-60825 standards.
Features
• SMPTE 297-2006 Compatible Features
• Speed from 50 Mbps to 2.97 Gbps
• Distance up to 40km for 3G-SDI
• Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
• 18 Wavelength CWDM DFB Transmitter
• Hot-pluggable SFP footprint
• SFP MSA compliant
• Digital Diagnostic functions available through the I2C interface
• Single +3.3V power supply
• Low Power Consumption
• Operating case temperature: 0 to +70°C
• RoHS compliant and Lead-Free
General Specification
| Product Series | 3G-SDI Video SFP Transceiver | Part Number | OHPC3G-xx40DCR |
| Form Factor | SFP | Data Rate | 3 Gb/s |
| Wavelength | 1271~1611 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/PIN |
| Transmitter Power | -2 ~ 3 dBm | Extinction ratio | > 6 dB |
| Receiver Sensitivity | < -20 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | SMPTE 424M (2.97Gb/s)
SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
Standards Reference | INF-8074i SFP (Small Formfactor Pluggable) Transceiver SFF-8472 Diagnostic Monitoring Interface for Transceiver SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI) SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI) SMPTE 344M-2000 540 Mbps Serial Digital Interface SMPTE 424M-2006 3Gbps Signal/Data Serial Interface (3G-SDI) |
Transmitter Specification
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical | |||||
| Optical Transmit Power | Po | -2 | – | 3 | dBm |
| Optical Center Wavelength | λC | λ-6.5 | λ | λ+6.5 | nm |
| Spectral Width (-20dB) | σ | – | – | 1 | nm |
| Extinction Ratio | ER | 6 | – | – | dB |
| Optical Rise Time/Fall Time | tr/tf | – | – | 135 | Ps (1) |
| Electrical | |||||
| Differential Input Voltage | VIH -VIL | 0.3 | – | 2.2 | V |
| TX Disable Input Voltage–Low | TDIS,L | 0 | – | -0.8 | V |
| TX Disable Input Voltage–High | TDIS,H | 2.0 | – | VCC | V |
| TX Disable Assert Time | TASSERT | – | – | 10 | μs |
| TX Disable Deassert Time | TDEASSERT | – | – | 1 | ms |
| TX Fault Output Voltage — Low | TFAULT,L | 0 | – | -0.8 | V |
| TX Fault Output Voltage — High | TFAULT,H | 2.0 | – | VCC | V |
Receiver Specification
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical | |||||
| Sensitivity for SMPTE-424M 2.97Gb/s | Sen | – | – | -20 | dBm |
| Sensitivity for SMPTE-292M 1.485Gb/s | Sen | – | – | -21 | dBm |
| Maximum Input Power(Saturation) | PMAX | -3 | – | – | dBm |
| Signal Detect — Asserted | Pa | – | – | -20 | dBm |
| Signal Detect — Deasserted | Pd | -35 | – | – | dBm |
| Signal Detect — Hysteresis | Phys | 1 | – | 4 | dB |
| Wavelength of Operation | λ | 1260 | – | 1610 | nm |
| Electrical | |||||
| Differential Output Voltage | VIL –VCC | 0.4 | – | 2 | V |
| Signal Detect Output Voltage– Low | VSIL –VCC | – | – | 0.8 | V |
| Signal Detect Output Voltage– High | VSIH –VCC | 2.0 | – | – | V |
Pin Definition
| Pin No. | Name | Function |
| 1 | VeeT | Transmitter Ground |
| 2 | TX Fault | Transmitter Fault Indication |
| 3 | TX Disable | Transmitter Disable |
| 4 | MOD-DEF2 | Module Definition 2 |
| 5 | MOD-DEF1 | Module Definition 1 |
| 6 | MOD-DEF0 | Module Definition 0 |
| 7 | Rate Select | Not Connected |
| 8 | LOS | Loss of Signal |
| 9 | VeeR | Receiver Ground |
| 10 | VeeR | Receiver Ground |
| 11 | VeeR | Receiver Ground |
| 12 | RD- | Inv. Received Data Out |
| 13 | RD+ | Received Data Out |
| 14 | VeeR | Receiver Ground |
| 15 | VccR | Receiver Power |
| 16 | VccT | Transmitter Power |
| 17 | VeeT | Transmitter Ground |
| 18 | TD+ | Transmit Data In |
| 19 | TD- | Inv Transmit Data In |
| 20 | VeeT | Transmitter Ground |
Ordering Information
| Part number | Description |
| OHPC3G-2740DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1271nm, 40km, LC, DDMI, MSA |
| OHPC3G-2940DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1291nm, 40km, LC, DDMI, MSA |
| OHPC3G-3140DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1311nm, 40km, LC, DDMI, MSA |
| OHPC3G-3340DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1331nm, 40km, LC, DDMI, MSA |
| OHPC3G-3540DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1351nm, 40km, LC, DDMI, MSA |
| OHPC3G-3740DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1371nm, 40km, LC, DDMI, MSA |
| OHPC3G-3940DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1391nm, 40km, LC, DDMI, MSA |
| OHPC3G-4140DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1411nm, 40km, LC, DDMI, MSA |
| OHPC3G-4340DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1431nm, 40km, LC, DDMI, MSA |
| OHPC3G-4540DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1451nm, 40km, LC, DDMI, MSA |
| OHPC3G-4740DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1471nm, 40km, LC, DDMI, MSA |
| OHPC3G-4940DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1491nm, 40km, LC, DDMI, MSA |
| OHPC3G-5140DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1511nm, 40km, LC, DDMI, MSA |
| OHPC3G-5340DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1531nm, 40km, LC, DDMI, MSA |
| OHPC3G-5540DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1551nm, 40km, LC, DDMI, MSA |
| OHPC3G-5740DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1571nm, 40km, LC, DDMI, MSA |
| OHPC3G-5940DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1591nm, 40km, LC, DDMI, MSA |
| OHPC3G-6140DCR | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1611nm, 40km, LC, DDMI, MSA |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
