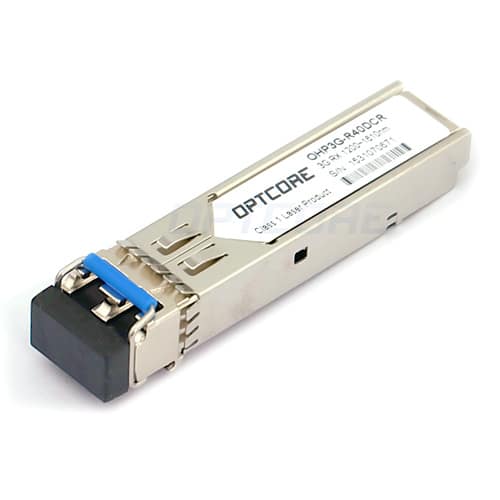

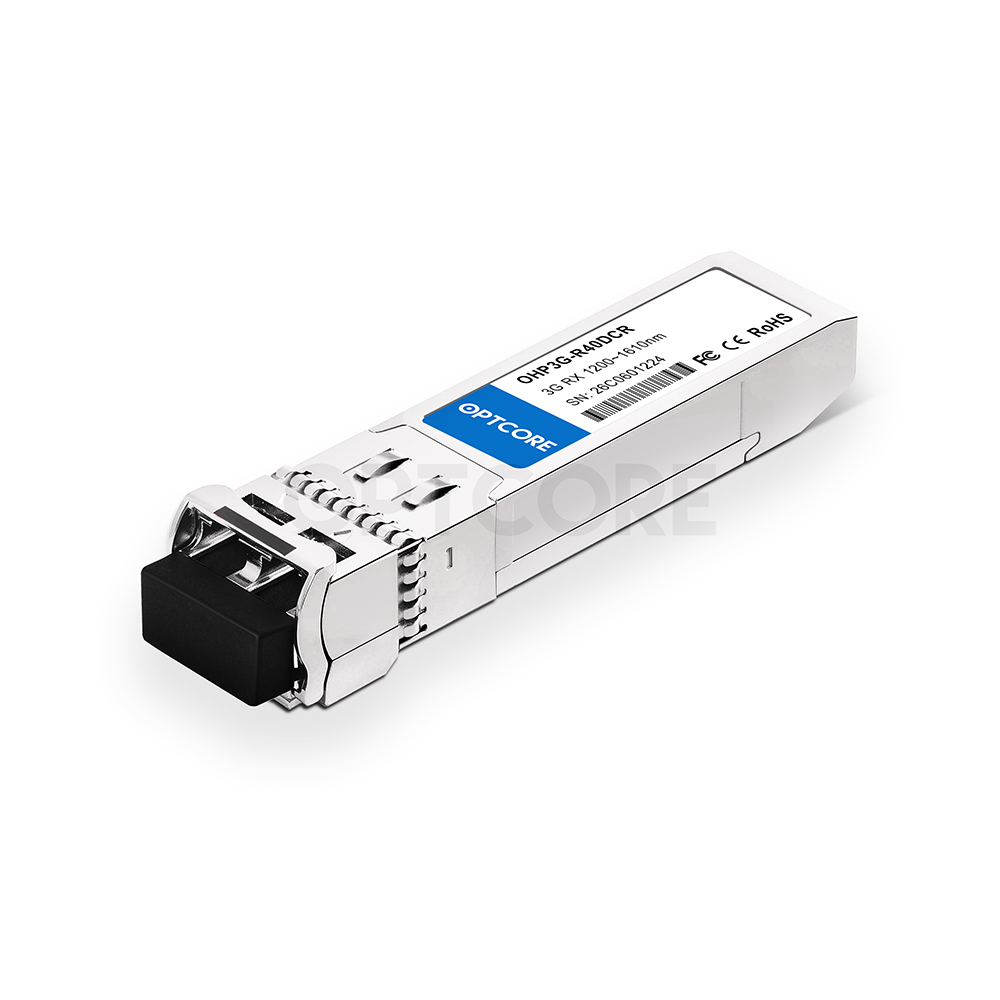

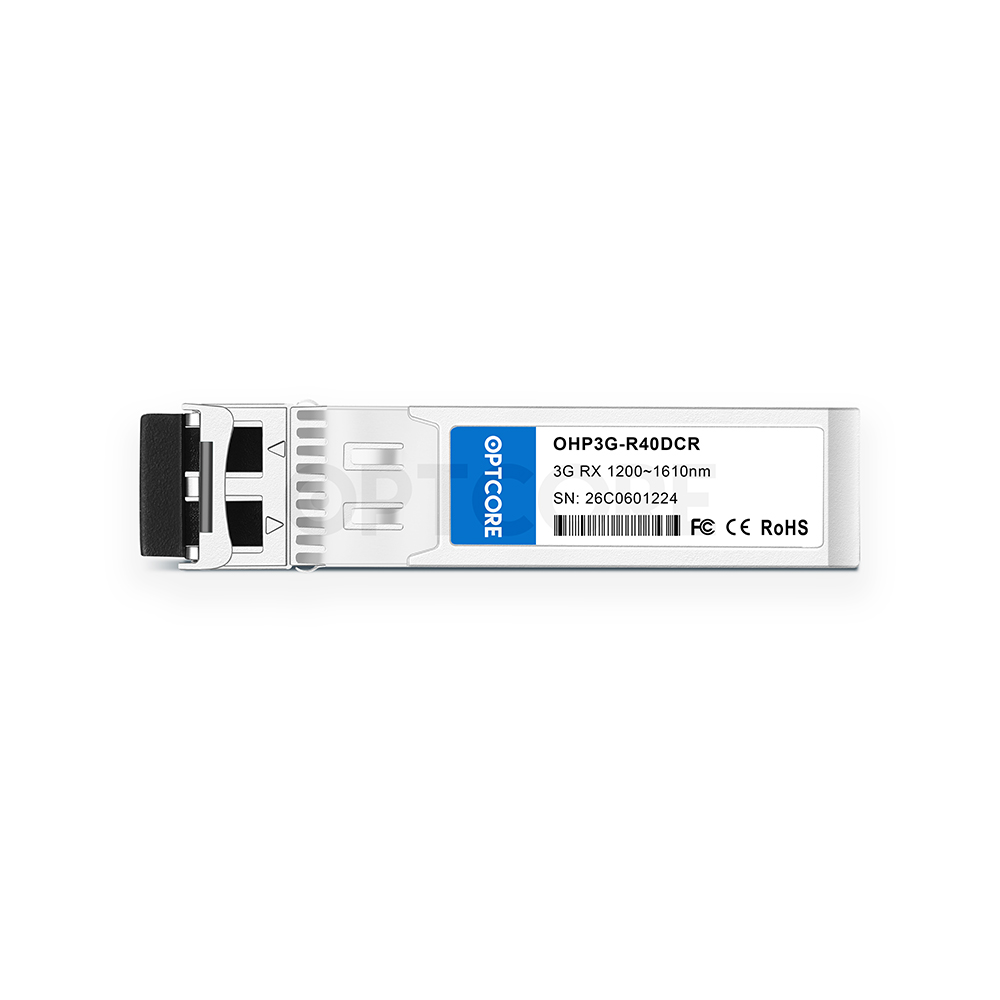

3G-SDI Video SFP 1260~1610nm 40km Single Channel Optical Receiver Module
US$ 46.00 (Excl. VAT)
Good quality 3G-SDI Video SFP Single Channel Optical Receiver (SMF, 1260~1610nm, 40km, LC, MSA Compliant).
Available on backorder
3G-SDI Digital Video SFP Single-Channel Optical Receiver Module (SMF, 1260~1610nm RX, 40km/-18dBm, LC, DOM, MSA Compliant)
Optcore OHP3G-R40DCR is a high-performance, cost-effective 3G-SDI optical receiver module for single-channel video transmission applications over single-mode fiber (SMF). It provides the data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. It provides the maximum transmission distance of 40km over single-mode fiber at 3Gbps pathological signals. The Pin definition of OHP3G-R10DCR is MSA compliant.
The OHP3G-R40DCR provides extensive operational status monitoring (also called DDMI) through an I2C interface. Output optical power, bias current, supply voltage, and operating temperature are monitored. If a parameter monitored is outside the pre-defined range, the alarm flag associated with the parameter will be raised. The OHP3G-R40DCR is a Class I Laser product per FDA/CDRH and IEC-60825 standards.
Features
• SMPTE 297-2006 Compatible Features
• Speed from 50 Mbps to 3Gbps
• Distance up to 40km for 3G-SDI over Single-mode Fiber
• Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
• Single PIN photodetector Receiver
• Hot-pluggable SFP
• Digital Diagnostic functions available through the I2C interface
• Single +3.3V power supply
• Low Power Consumption
• Operating case temperature: 0 to +70°C
• RoHS compliant and Lead-Free
General Specification
| Product Series | 3G-SDI Video SFP Transceiver | Part Number | OHP3G-R40DCR |
| Form Factor | Video SFP Singel Channel Receiver | Data Rate | 3 Gb/s |
| Wavelength | 1260~1610 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | PIN |
| Transmitter Power | N/A | Extinction ratio | N/A |
| Receiver Sensitivity | < -18 dBm | Receiver Overload | > -3 dBm |
| Connector | Single LC | Digital Diagnostic Monitoring | Support as default |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | SMPTE 424M (2.97Gb/s)
SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
Standards Reference | INF-8074i SFP (Small Formfactor Pluggable) Transceiver SFF-8472 Diagnostic Monitoring Interface for Transceiver SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI) SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI) SMPTE 344M-2000 540 Mbps Serial Digital Interface SMPTE 424M-2006 3Gbps Signal/Data Serial Interface (3G-SDI) |
Receiver Specification
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical | |||||
| Sensitivity for SMPTE-424M 2.97Gb/s | Sen | – | – | -20 | dBm |
| Sensitivity for SMPTE-292M 1.485Gb/s | Sen | – | – | -21 | dBm |
| Maximum Input Power(Saturation) | PMAX | -3 | – | – | dBm |
| Signal Detect — Asserted | Pa | – | – | -21 | dBm |
| Signal Detect — Deasserted | Pd | -35 | – | – | dBm |
| Signal Detect — Hysteresis | Phys | 1 | – | 4 | dB |
| Wavelength of Operation | λ | 1260 | – | 1610 | nm |
| Electrical | |||||
| Differential Output Voltage | VIL –VCC | 0.4 | – | 2 | V |
| Signal Detect Output Voltage– Low | VSIL –VCC | – | – | 0.8 | V |
| Signal Detect Output Voltage– High | VSIH –VCC | 2.0 | – | – | V |
Pin Definition
| Pin No. | Name | Function |
| 1 | VeeT | Transmitter Ground |
| 2 | TX Fault | Transmitter Fault Indication |
| 3 | TX Disable | Transmitter Disable |
| 4 | VeeT | Transmitter Ground |
| 5 | I2C CLK | SCL Serial Clock Signal |
| 6 | I2C DATA | SDA Serial Data Signal |
| 7 | N.C. | Not Connected |
| 8 | N.C. | Not Connected |
| 9 | N.C. | Not Connected |
| 10 | N.C. | Not Connected |
| 11 | N.C. | Not Connected |
| 12 | N.C. | Not Connected |
| 13 | N.C. | Not Connected |
| 14 | N.C. | Not Connected |
| 15 | N.C. | Not Connected |
| 16 | VccT | Transmitter Power |
| 17 | VeeT | Transmitter Ground |
| 18 | TD+ | Transmit Data In |
| 19 | TD- | Inv Transmit Data In |
| 20 | VeeT | Transmitter Ground |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
