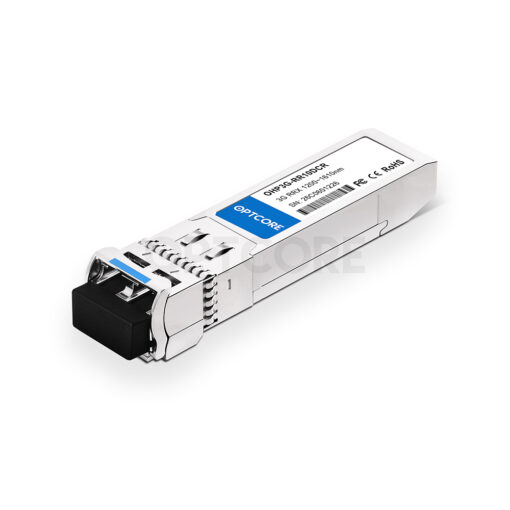

3G-SDI 1260~1610nm 10km Digital Video SFP Dual Channel Optical Receiver Module (Non-MSA)
US$ 88.00 (Excl. VAT)
Good quality 3G-SDI Video SFP Dual Channel Optical Receivers (SMF, 1260~1610nm, 10km, LC, MSA Compliant).
Available on backorder
MSA compliant 3G-SDI SMF 1260~1610nm 10km Digital Video SFP Dual Channel Optical Receiver Module
Optcore OHP3G-RR10XCRN is high performance, cost-effective 3G-SDI optical receiver modules for dual channel video transmission application over single mode fiber (SMF). It provides the data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. It provides the maximum transmission distance of 10km over single mode fiber at 3Gbps pathological signals. The Pin definition of OHP3G-RR10XCRN is Non-MSA compliant.
The OHP3G-RR10DCRN provides extensive operational status monitoring (also called DDMI) through an I2C interface. Output optical power, bias current, supply voltage and operating temperature are monitored. If a parameter monitored is outside the pre-defined range, the alarm flag associated with the parameter will be raised. The OHP3G-RR10XCRN is Class I Laser products per FDA/CDRH and IEC-60825 standards.
Features
• SMPTE 297-2006 Compatible Features
• Speed from 50 Mbps to 3Gbps
• Distance up to 10km for 3G-SDI over Single-mode Fiber
• Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
• Dual PIN photodetector Receiver
• Hot-pluggable SFP
• Non-MSA compliant Pinout
• Digital Diagnostic functions available through the I2C interface
• Single +3.3V power supply
• Low Power Consumption
• Operating case temperature: 0 to +70°C
• RoHS compliant and Lead-Free
General Specification
| Part Number | OHP3G-RR10DCRN (With DDMI) | Part Number | OHP3G-RR10NCRN (Without DDMI) |
| Form Factor | Video SFP Dual Channel Receivers | Data Rate | 3 Gb/s |
| Wavelength | 1260~1610 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | PIN/PIN |
| Transmitter Power | N/A | Extinction ratio | N/A |
| Receiver Sensitivity | < -18 dBm | Receiver Overload | > -3 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Support as default |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | SMPTE 424M (2.97Gb/s)
SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
Standards Reference | INF-8074i SFP (Small Formfactor Pluggable) Transceiver SFF-8472 Diagnostic Monitoring Interface for Transceiver SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI) SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI) SMPTE 344M-2000 540 Mbps Serial Digital Interface SMPTE 424M-2006 3Gbps Signal/Data Serial Interface (3G-SDI) |
Receiver Specification
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical | |||||
| Sensitivity for SMPTE-424M 2.97Gb/s | Sen | – | – | -18 | dBm |
| Sensitivity for SMPTE-292M 1.485Gb/s | Sen | – | – | -19 | dBm |
| Maximum Input Power(Saturation) | PMAX | -3 | – | – | dBm |
| Signal Detect — Asserted | Pa | – | – | -20 | dBm |
| Signal Detect — Deasserted | Pd | -35 | – | – | dBm |
| Signal Detect — Hysteresis | Phys | 1 | – | 4 | dB |
| Wavelength of Operation | λ | 1260 | – | 1610 | nm |
| Electrical | |||||
| Differential Output Voltage | VIL –VCC | 0.4 | – | 2 | V |
| Signal Detect Output Voltage– Low | VSIL –VCC | – | – | 0.8 | V |
| Signal Detect Output Voltage– High | VSIH –VCC | 2.0 | – | – | V |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
