2Mbps 1310nm 20km 1×9 TTL Transceiver
Price range: US$ 15.90 through US$ 16.30 (Excl. VAT)
Good quality 2Mbps Ultra-Low Data Rate 1×9 TTL Optical Transceiver (SMF, 1310nm, 20km, Duplex SC/FC/ST, 3.3V or 5V).
2Mbps 1×9 TTL Transceiver Module (SMF, 1310nm, 20km, SC/FC/ST, 3.3V/5V)
The OPT2-3120xxCR family of 1×9 optical transceivers from Optcore provides the system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 0Mb/s-2Mb/s rate. This series of fiber optic transceivers are supplied in the industry-standard 1×9 SIP package style with a duplex SC, a duplex ST, a duplex FC, or Pigtails type connector interface. The transceivers are high-performance, cost-effective modules with a TTL data interface that supports a data rate of 0~2Mbps and a maximum 20km transmission distance over single mode fiber cable (SMF). The OPT2-3120xxCR series TTL 1×9 optical transceivers help convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converters and Ethernet networks to fiber networks communications like Ethernet converters and switches.
The OPT2-3120xxCR family 1×9 transceiver optics are commercial temperature-grade products. Industrial temperature grade 1×9 transceivers for industrial Ethernet applications in the hardened environment are also available. Click here to learn more about OPT2-3120xxTR (2Mbps SMF 1310nm 20km 1×9 Industrial Transceiver).
Features
• Duplex SC/ST/FC receptacle single mode optical interface
• Single +3.3V or +5V Power Supply
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Standard 1×9 footprint package
• Operating wavelength 1310nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 2Mbps
• Operating case temperature: Standard 0 to +70°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT2-3120xxCR | Form Factor | 1×9 |
| Data Rate | 0~2 Mb/s | Wavelength | 1310 nm |
| Max Distance | 20 km | Fiber Type | Single Mode (SMF) |
| Voltage | 3.3v or 5v | Optical Components | FP/PIN |
| Transmitter Power | -7 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -18 dBm | Connector | Duplex SC, ST or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.02 kg |
| Application | • Industrial Ethernet Applications such as Industrial Ethernet Switches, industrial Ethernet Media Converters, Industrial Fiber Converters • Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter, industrial RS-232 to RS-422 and RS-485 Adapters • RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control,industrial computing |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OPT2-31205SCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 5V, 0ºC~70ºC, SC |
| OPT2-31205TCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 5V, 0ºC~70ºC, ST |
| OPT2-31205FCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 5V, 0ºC~70ºC, FC |
| OPT2-31205PCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 5V, 0ºC~70ºC, FC Pigtail |

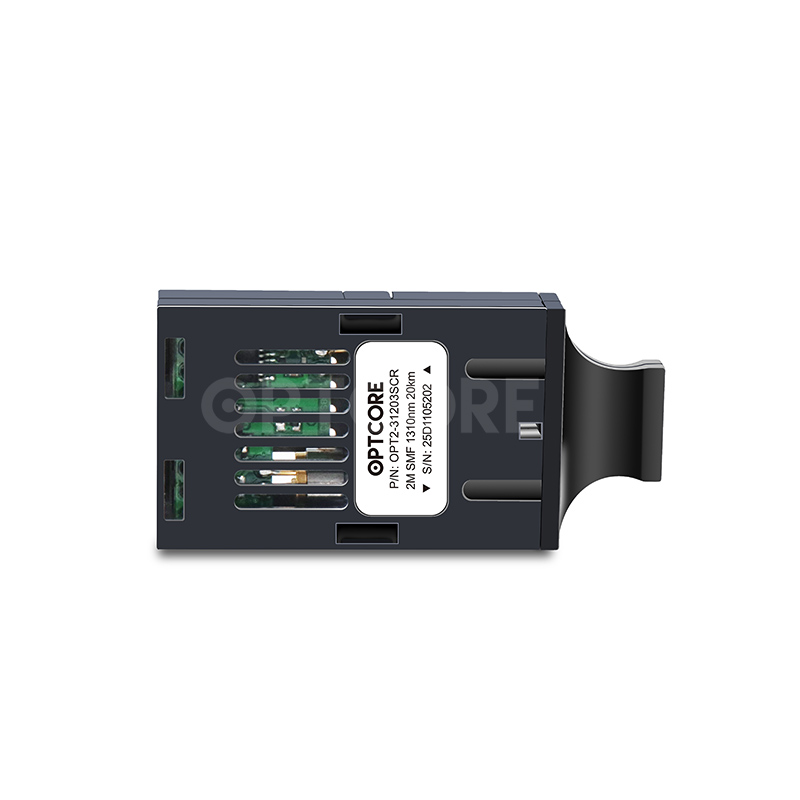

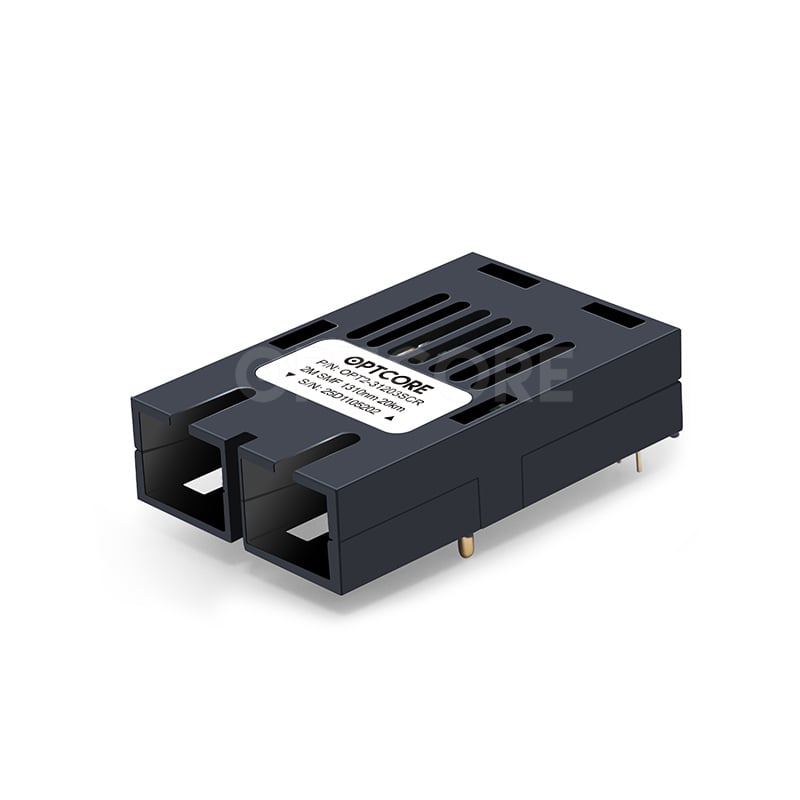

| OPT2-31203SCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 3.3V, 0ºC~70ºC, SC |

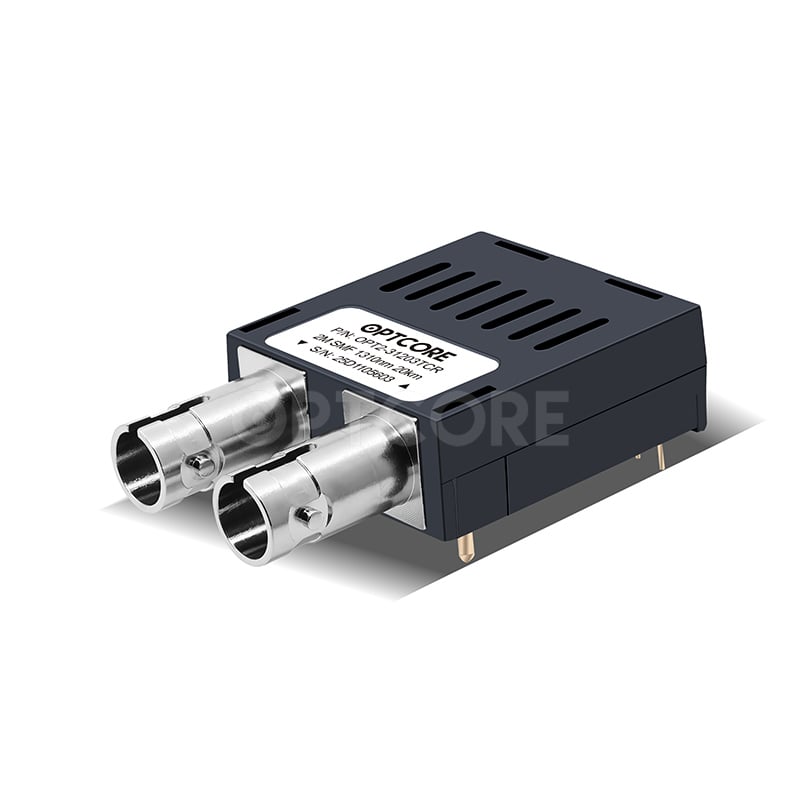

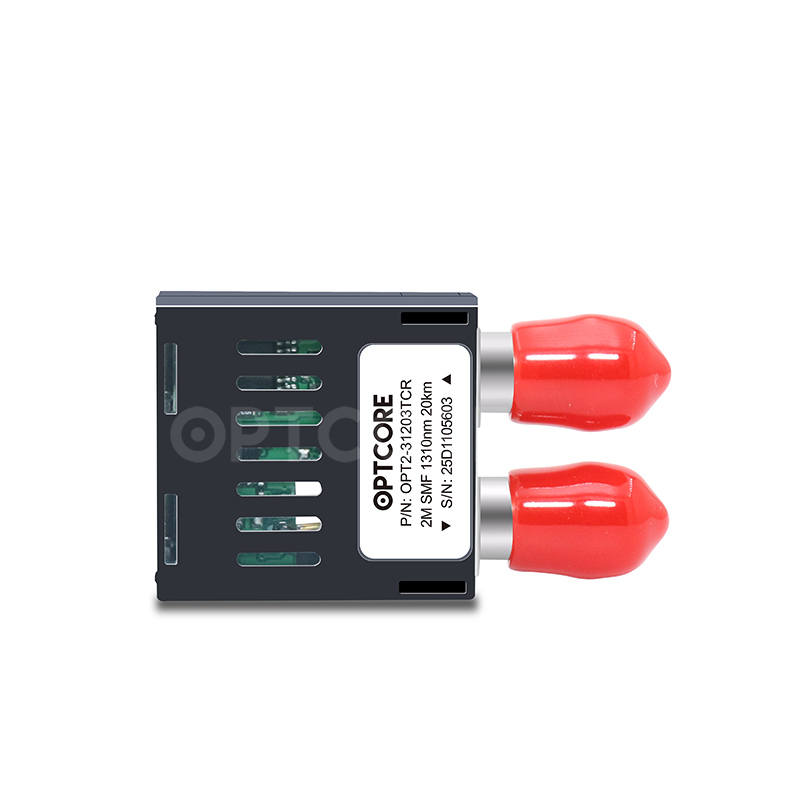

| OPT2-31203TCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 3.3V, 0ºC~70ºC, ST |

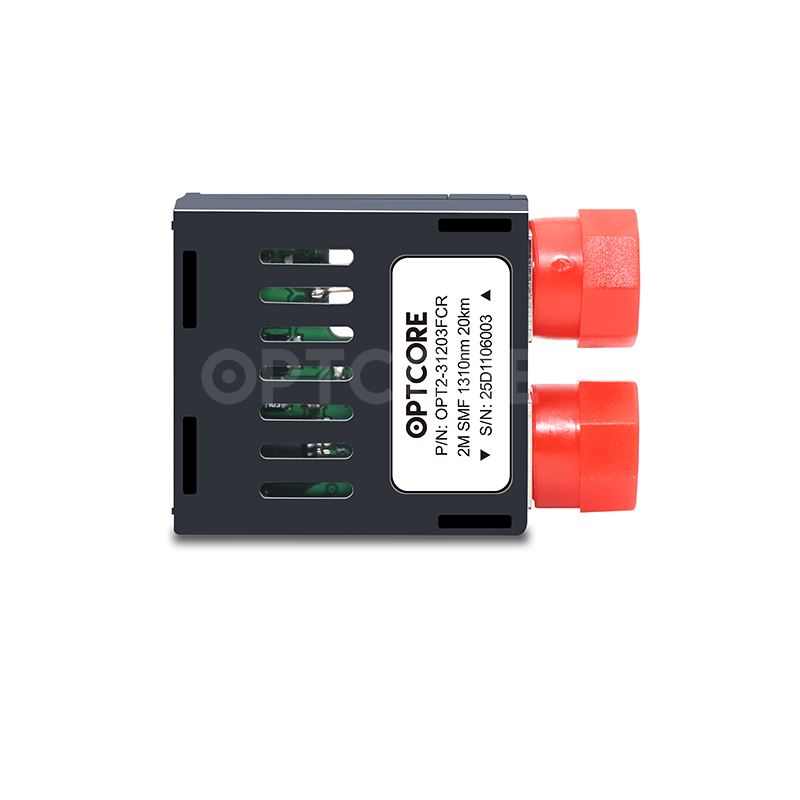

| OPT2-31203FCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 3.3V, 0ºC~70ºC, FC |
| OPT2-31203PCR | TTL 1×9 Transceiver, Single Mode, 1310nm, 2Mbps, 20km, 3.3V, 0ºC~70ºC, FC Pigtail |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
