2Mbps Multimode 850nm 1km 1×9 TTL Transceiver
Price range: US$ 15.90 through US$ 16.50 (Excl. VAT)
Good quality 2Mbps Ultra-Low Data Rate TTL 1×9 Optical Transceiver (MMF, 850nm, 1km, Duplex SC/FC/ST, 3.3V/5V).
2Mbps Multimode 1×9 TTL Transceiver Module (MMF, 850nm, 1km, SC/FC/ST, 3.3V/5V, 0°C~70°C)
The OPT2-851xxCR family of 1×9 optical transceivers from Optcore provides the network system designer and manufacturers with products to implement a range of industrial control and special low data rate Ethernet designs 0Mb/s-2Mb/s rate. These fiber optic transceiver series are supplied in the industry-standard 1×9 SIP package style with a duplex SC, ST, FC, or Pigtails-type connector interface. They are high-performance, cost-effective optical transceiver modules with a TTL data interface that supports data rates of 0~2Mbps and 1km transmission distance over multi-mode fiber cable (MMF). The OPT2-851xxCR series TTL 1×9 optical transceivers help convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converters, Industrial Ethernet networks, to fiber network communications such as industrial Ethernet converters and industrial Ethernet switches.
The OPT2-851xxCR family 1×9 TTL transceiver optics are commercial temperature-grade products. Industrial temperature grade 1×9 transceivers for industrial Ethernet applications in the hardened environment are also available, click here to learn more about OPT2-851xxTR (2Mbps MMF 850nm 1km 1×9 Industrial Transceiver).
Features

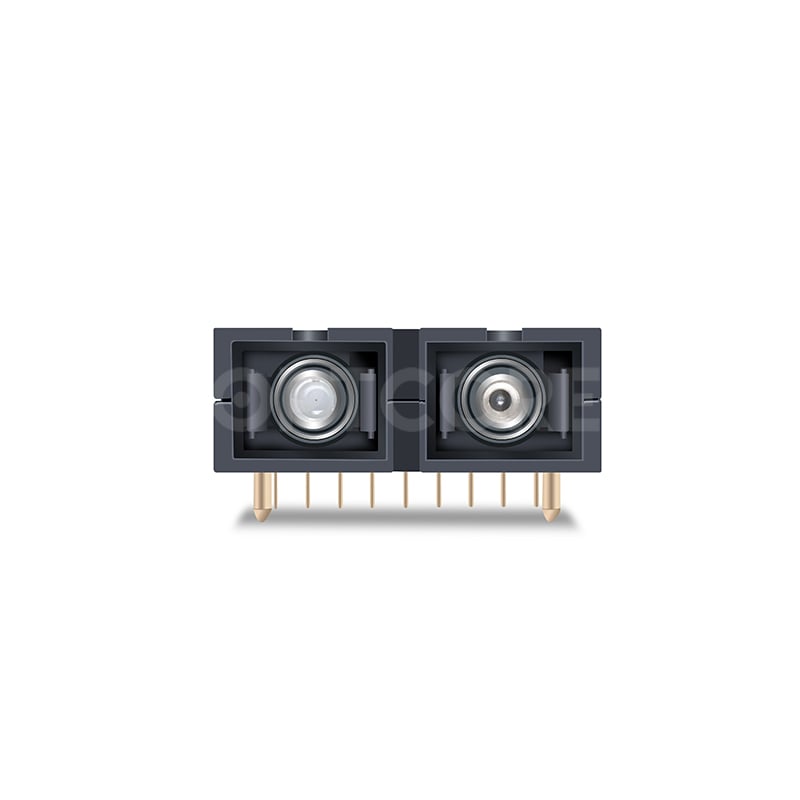

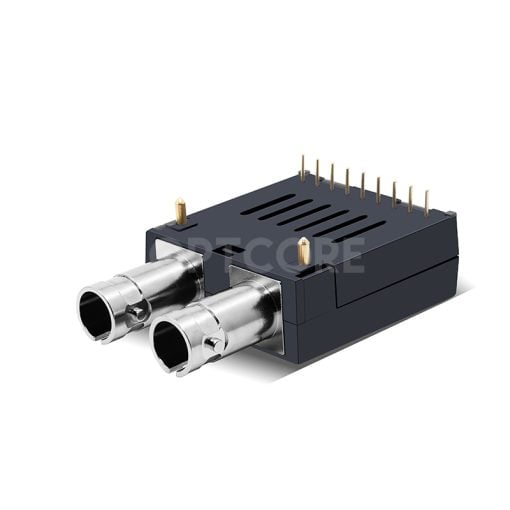

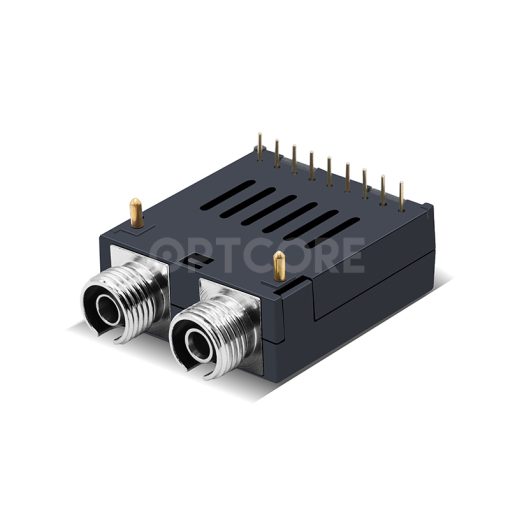

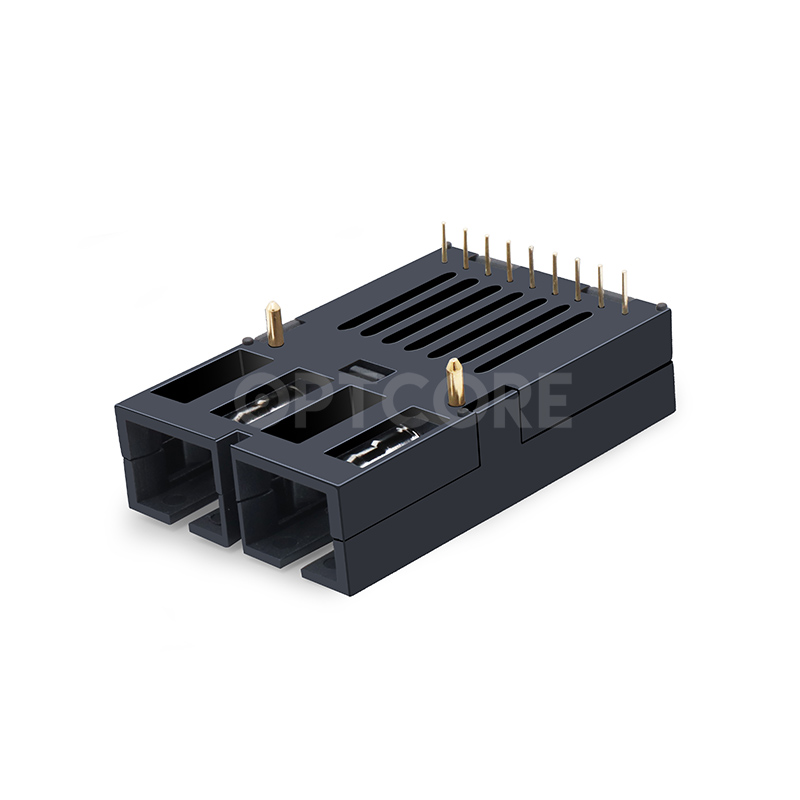

• Duplex SC/ST/FC receptacle multi-mode optical interface
• 1×9 SIP package
• Single +3.3V or +5V Power Supply
• Operating wavelength 850nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 2Mbps
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Compliant with RS485 function
• Operating case temperature: 0 to +70°C
• Class 1 Laser Product, Compliant with IEC825, FDA21,CFR1040.10 and CFR1040.11
• ROHS-compliant and Lead-Free
Specification
| Part Number | OPT2-851xxCR | Form Factor | 1×9 |
| Data Rate | 0~2 Mb/s | Wavelength | 850 nm |
| Max Distance | 1 km | Fiber Type | Multimode (MMF) |
| Voltage | 3.3V or 5V | Optical Components | VCSEL/PIN |
| Transmitter Power | -12 ~ -6 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -16 dBm | Connector | Duplex SC, ST or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.02 kg |
| Application | • Industrial Ethernet Applications such as Industrial Ethernet Switches, Industrial Ethernet Media Converters, Industrial Fiber Converters • Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter, industrial RS-232 to RS-422 and RS-485 Adapters • RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control,industrial computing |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OPT2-8515SCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,5V,0ºC~70ºC,SC |
| OPT2-8515TCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,5V,0ºC~70ºC,ST |
| OPT2-8515FCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,5V,0ºC~70ºC,FC |
| OPT2-8515PCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,5V,0ºC~70ºC,FC Pigtail |
| OPT2-8513SCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,3.3V,0ºC~70ºC,SC |

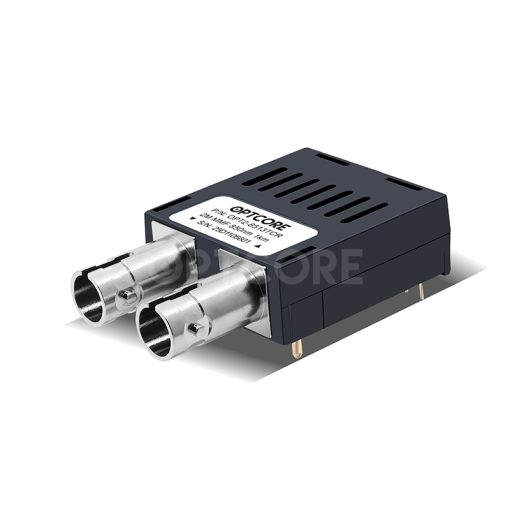

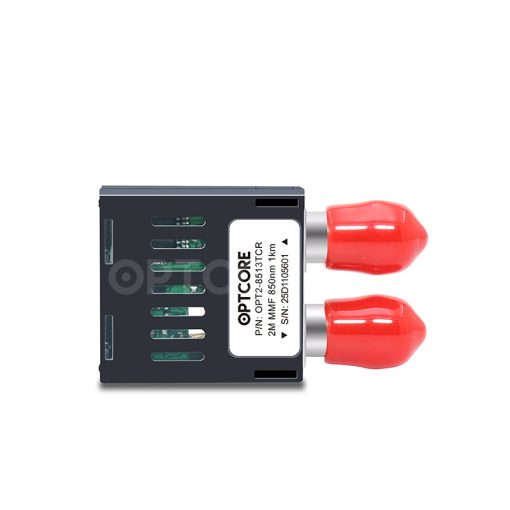

| OPT2-8513TCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,3.3V,0ºC~70ºC,ST |

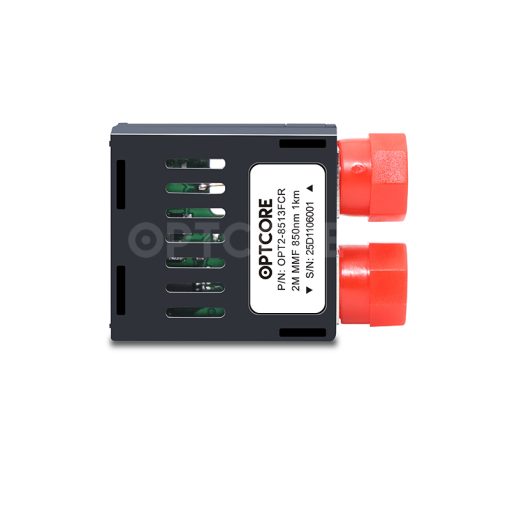

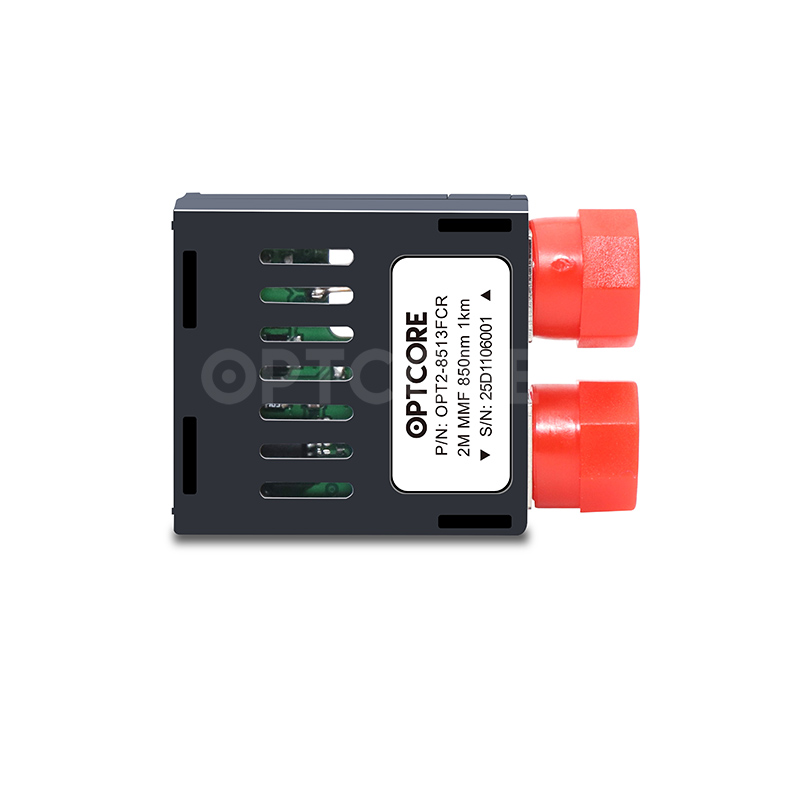

| OPT2-8513FCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,3.3V,0ºC~70ºC,FC |
| OPT2-8513PCR | TTL 1×9 Transceiver,Multimode,850nm,2Mbps,1km,3.3V,0ºC~70ºC,FC Pigtail |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
