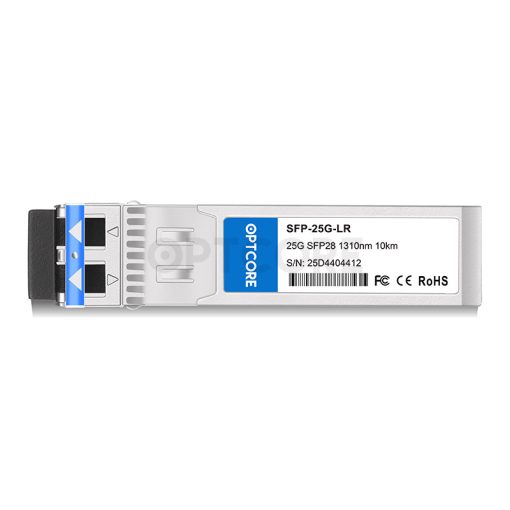

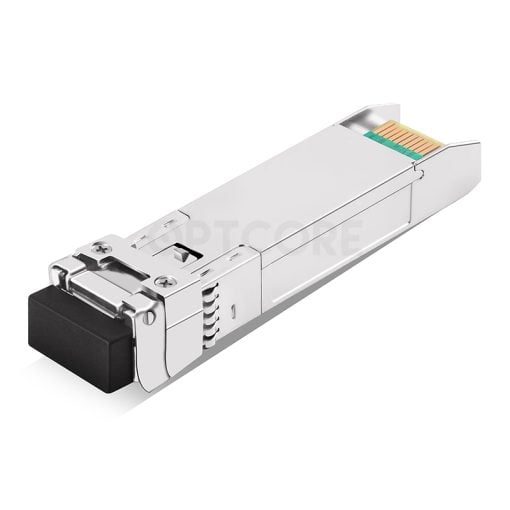

Brocade 25G-SFP28-LR Compatible 25G SFP28 1310nm 10km Transceiver
US$ 27.00 (Excl. VAT)
25G SFP28 LR Transceiver for use with Brocade 25GbE switches and routers.
Brocade 25G-SFP28-LR Compatible 25G SFP28 LR Transceiver (SMF, 1310nm, 10km, LC, DDM)
This 25G-SFP28-LR Compatible 25G SFP28 LR Transceiver is designed for use with Brocade 25 Gigabit Ethernet connectivity in data center and high-performance computing networks applications. It is programmed and tested to perform identical to original Brocade 25G-SFP28-LR 25GBASE-LR SFP28 transceiver and provide a cost-effective replacement. This 25G optics module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into LC Duplex optical connector, providing links up to 10km over single-mode fiber.
Features
• Functionally similar to Brocade 25G-SFP28-LR
• Support for 25Gb/s data rate
• 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single mode fiber
• LC Duplex connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | 25G-SFP28-LR | Optcore Part Number | SFP-25G-LR-BRO |
| Form Factor | SFP28 | Data Rate | 25 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Receiver Sensitivity | < -10 dBm | Receiver Overload | > 3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 25GBASE-LR Ethernet | Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Brocade.
| Weight | 0.03 kg |
|---|
