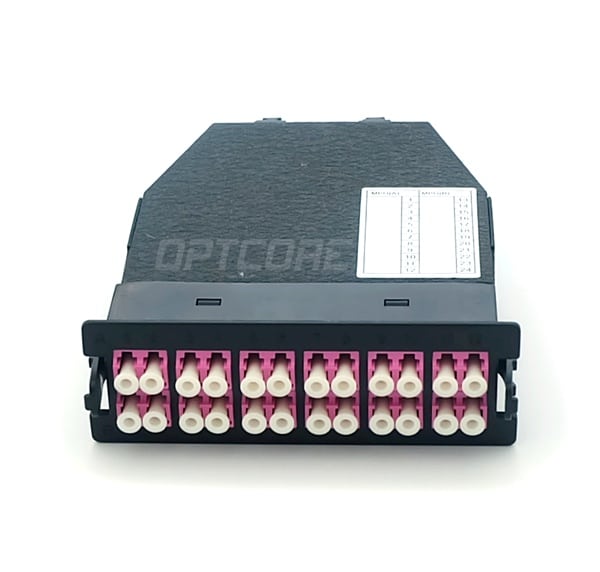

MPO-24 to 12x LC Duplex 50/125 Multimode OM4 Fiber Optic Cassette, Type A
US$ 99.00 (Excl. VAT)
Optcore offers good quality 24 Fibers MPO to 12x LC Duplex Fiber Optic Cassette(40GB OM4, Plug & Play Design, UPC Polish).
24 Fibers MPO to 12x LC Duplex Fiber Optic Cassette (50/125 Multimode OM4, Male to Female, 1 RU)
Optcore MPO Fiber Optic Cassette Module is designed for the secure transition between MPO and LC discrete connectors. It’s suitable for high-density backplane and data center cabling which offers excellent benefits in terms of on-site installation time and space saving. This Fiber Optic Cassette Module kit includes 1x pre-terminated MPO-24 to 12x LC Duplex 50/125 40G OM4 fiber optic harness cable, an MPO adapter in back, 12x LC duplex adapters in the front and the cassette module that the fiber is routed and connected inside of it. The MPO cassette module is built with high-quality components to ensure overall network reliability. This compact and modular MPO cassette module provide you a quick, reliable, high performance and efficient way to deploy up to 12x LC duplex fiber ports pairs in a single module, allowing for maximum density in limited spaces. The cassette module can be mounted in 1U, 2U, 3U or 4U 19” multi-slot MPO fiber panel or enclosure.
Features
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• Simplifies cable management and allows for higher density
• Suitable for MPO application
• 40GB 50/125 multimode OM4 fiber
• Cassettes can be easily mounted on the patch panel, designed for MPO/MTP ultra high-density panel system
• Easy to use and install
• RoHS compliant
Specification
| Fiber Type | 40G 50/125µm OM4 | Fiber Count | 24-Fiber |
| Front Connector Type | 12x LC Duplex | Rear Connector Type | 1x MPO-24 Male (Pinned) |
| Dimensions (WxDxH) | 130×112×30mm | Test Wavelength | 850 nm |
| Insertion Loss | MPO≤0.5dB, LC≤0.3dB | Return Loss | MPO≥20dB, LC≥30dB |
| Polarity | Type A | Durability | ≥500 times |
| MPO Connector | Key up to Key down | Polish | UPC |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Data Centre Infrastructure Fiber Optic Network Infrastructure High-Density Fiber Management |
Ordering Information
| Optcore Part Number | Description |
| MC-1MPO24/M-12xDLC-24OM4-A | MPO Fiber Optic Cassette, 1x MPO-24 Male to 12x LC/UPC Duplex, 24 Fibers 40G 50/125 OM4, Type A, Key up-Key down |
Download
| Weight | 0.4 kg |
|---|
