LC-SC 40/100GB OM4 Multimode LSZH Duplex Fiber Patch Cable
Price range: US$ 3.90 through US$ 24.00 (Excl. VAT)

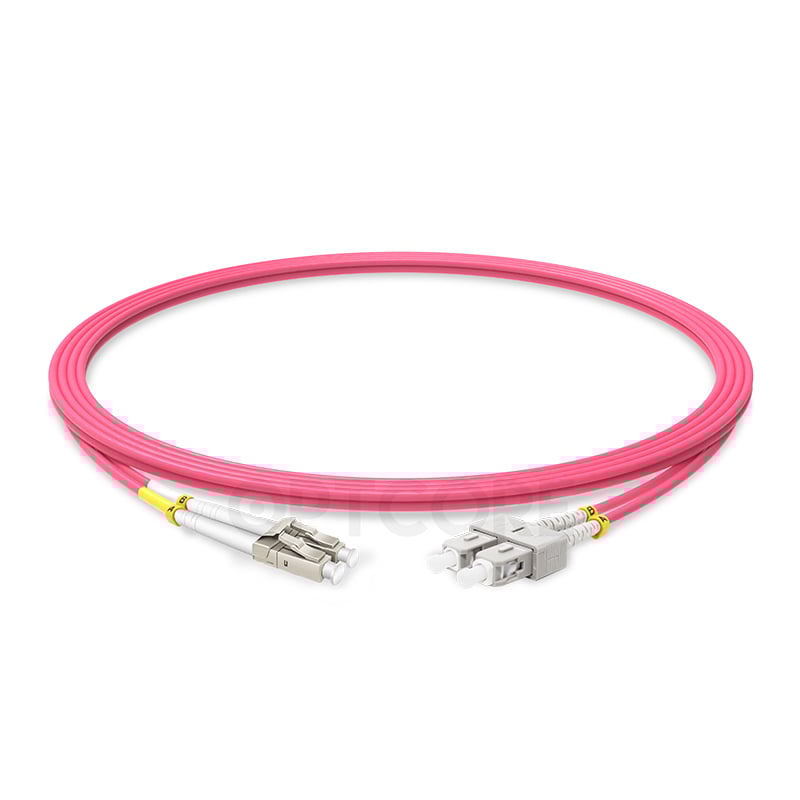

Each LC to SC Multimode 50/125µm OM4 Duplex Fiber Patch (UPC Polish, 2.0mm, LSZH, Magenta) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.
Customized OM4 Patch CableLC to SC Duplex 40G/100G OM4 Multimode Fiber Optic Patch Cable (Laser Optimized 50/125µm, 2.0mm, UPC, LSZH, Aqua)
Optcore’s LC to SC duplex OM4 multimode fiber optic patch cable is laser-optimized, high bandwidth 50µm multimode fiber (LOMMF) cable for use with 40G/100G Ethernet applications. This LC to SC OM4 fiber patch cable features an extremely high bandwidth of 4700MHz*km, providing more than double times bandwidth over 50/125µm 10G OM3 multimode fiber -2000MHz.km. The OM4 fiber patch cable was explicitly developed for VSCEL laser transmission and allowed 40G link distances of up to 150 Meters or 100G link distances of up to 100 Meters. This cable is entirely backward compatible with your existing 50/125 equipment as well as with 10 Gigabit Ethernet applications. OM4 fiber patch cable gives the cabling infrastructure user better performance to support longer distances or more connections. It provides a cost-effective way of avoiding expensive single-mode 40G/100G transceiver optics.
The OM4 fiber patch cable is manufactured with high-quality optical fiber and LC-SC ceramic connectors. It is strictly tested for low insertion and return loss to ensure superior performance and quality. The cable jacket is LSZH (Low-Smoke, Zero-Halogen) flame retardant to ensure minimal smoke, toxicity, and corrosion. It is ideal for 10GBase-SR, 40GBase-SR BiDi, SFP+, and QSFP+ transceivers connection.
Features
• Low insertion loss
• High back reflection loss
• Laser-optimized multimode fiber (LOMMF)
• Provides an upgrade path from 10 Gbps to 40 Gbps and beyond
• Backward compatible with legacy LAN’s
• Low-Smoke, Zero Halogen (LSZH) jacket
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 50/125μm OM4 Multimode | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC to SC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH (Low-Smoke, Zero-Halogen) | Jacket Color | Magenta |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application | 10/40/100 Gigabit Ethernet, Data Storage, Legacy LANs |
Ordering Information
| Optcore Part Number | Description |
| LC-SC-OM4-D1M-20-LS | 1M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D2M-20-LS | 2M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D3M-20-LS | 3M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D4M-20-LS | 4M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D5M-20-LS | 5M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D6M-20-LS | 6M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D7M-20-LS | 7M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D8M-20-LS | 8M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D9M-20-LS | 9M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D10M-20-LS | 10M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D15M-20-LS | 15M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D20M-20-LS | 20M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D30M-20-LS | 30M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-D50M-20-LS | 50M LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-SC-OM4-DxM-20-LS | Custom Length xM LC to SC Duplex OM4 Multimode Fiber Patch Cable (2.0mm, LSZH) |
Download
| Weight | N/A |
|---|
