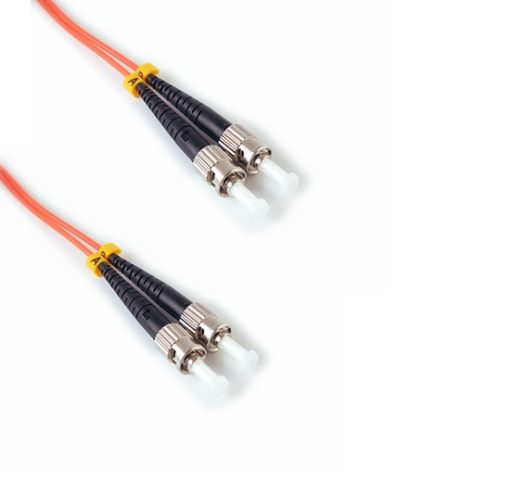

ST-ST 50/125 OM2 Multimode PVC (OFNR) Duplex Fiber Patch Cable
Price range: US$ 3.20 through US$ 11.90 (Excl. VAT)
Each ST-ST Multimode 50/125μm OM2 Duplex Fiber Patch Cable (UPC Polish, 2.0mm, PVC, Orange) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.
Customized OM2 Patch CableST to ST 50/125μm OM2 Multimode Duplex Fiber Patch Cable (50/125µm, 2.0mm, UPC, OFNR, Orange)
Optcore offers an extensive line of ST to ST 50/125μm OM2 multimode duplex fiber optic patch cables with many choices of different length, jacket material, polish, and cable diameter. This LC to ST OM2 fiber optic patch cable supports longer transmission distances with lower loss than a 62.5/125µm OM1 fiber cable. It is manufactured with high-quality optical fiber and ceramic connectors, and are strictly tested for insertion and return loss to ensure superior performance for cabling installs. It provides an ideal fiber cabling solution with an extremely competitive price for applications in data centers, enterprise networks, telecom room, host servers, storage networks.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• Boots in a variety of colors
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | Multimode OM2 50/125µm | Fiber Count | Duplex (2-fiber) |
| Connector Type | ST to ST | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Orange |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| ST-ST-OM2-D1M-20-PV | 1M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D2M-20-PV | 2M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D3M-20-PV | 3M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D4M-20-PV | 4M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D5M-20-PV | 5M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D6M-20-PV | 6M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D7M-20-PV | 7M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D8M-20-PV | 8M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D9M-20-PV | 9M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D10M-20-PV | 10M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D15M-20-PV | 15M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D20M-20-PV | 20M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D30M-20-PV | 30M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-D50M-20-PV | 50M ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM2-DxM-20-PV | Custom Length xM ST to ST Duplex 50/125μm OM2 Multimode Fiber Patch Cable (2.0mm, PVC) |
Download
| Weight | N/A |
|---|---|
| Cable Length | 1m (3.3ft), 2m (6.6ft), 3m (9.8ft), 5m (16.4ft), 7m (23.0ft), 10m (32.8ft), 15m (49.2ft), 20m (65.6ft), 25m (82.0ft), 30m (98.4ft) |
| Fiber Count | |
| Jacket Material |
