(End-of-Sale) SC-SC 9/125 OS2 Singlemode PVC (OFNR) Duplex Fiber Patch Cable
Price range: US$ 2.40 through US$ 27.50 (Excl. VAT)
Optcore Offers High-Quality SC-SC OS2 Singlemode Fiber Patch Cable (Duplex, 9/125μm, PVC, φ2.0mm, UPC Polish).
Note: End-of-Sale and replaced by SC-SC-SM-DxM-LS.

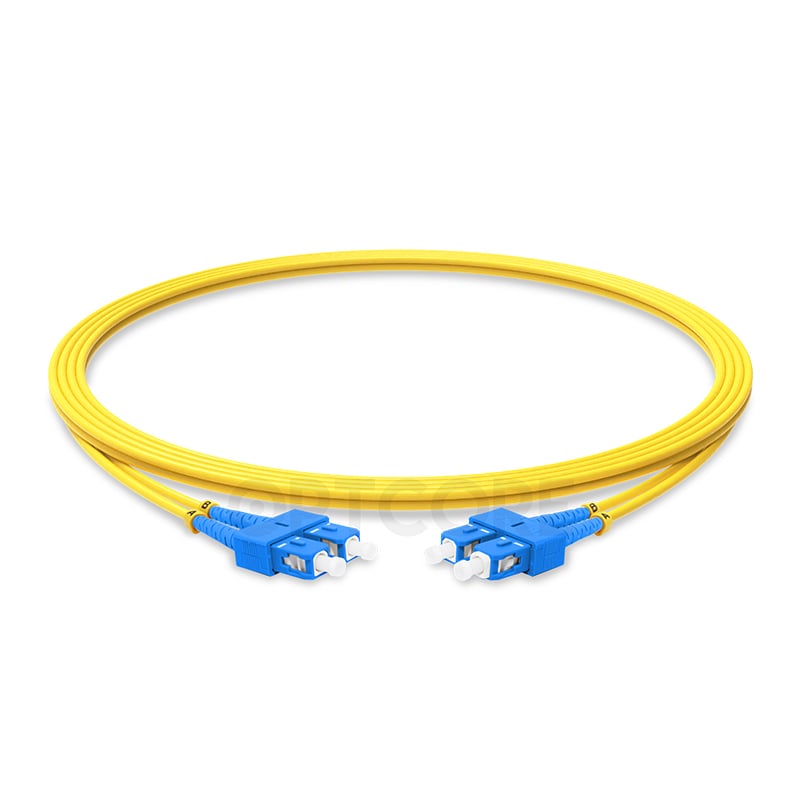

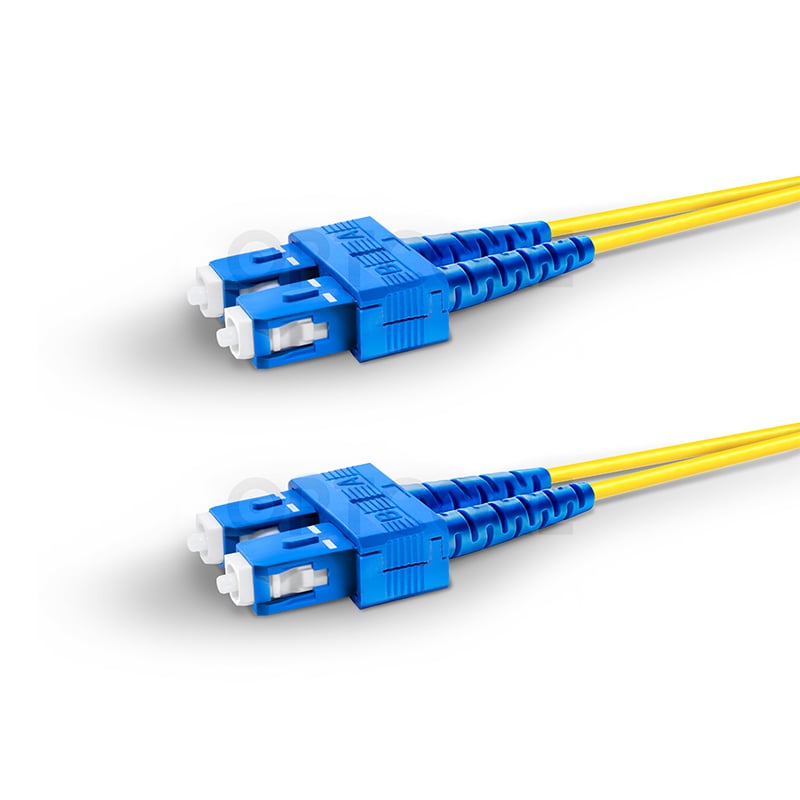

CustomizedSC to SC 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (SC-SC, 2.0mm, UPC, OFNR, Yellow)
Fiber Optic Patch Cable also is known as fiber patch cord, optical cable, or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality fiber patch cables are essential for any high-performance fiber-optic network. Optcore offers an extensive line of SC to SC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different lengths, jacket material, polish, and cable diameter. Those SC to SC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provides an ideal fiber cabling solution with an extremely competitive price for users in data communication and telecommunication networks.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Duplex (2-fiber) |
| Connector Type | SC to SC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| SC-SC-SM-D1M-20-PV | 1M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D2M-20-PV | 2M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D3M-20-PV | 3M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D4M-20-PV | 4M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D5M-20-PV | 5M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D6M-20-PV | 6M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D7M-20-PV | 7M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D8M-20-PV | 8M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D9M-20-PV | 9M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D10M-20-PV | 10M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D15M-20-PV | 15M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D20M-20-PV | 20M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D30M-20-PV | 30M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-D50M-20-PV | 50M SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
| SC-SC-SM-DxM-20-PV | Custom Length xM SC to SC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, PVC) |
Download
| Weight | N/A |
|---|
