Multimode OM4 MPO Female Fiber Loopback Module, 24-Fibers
US$ 42.00 (Excl. VAT)
24-Fiber OM4 MPO fiber loopback tester for fiber optic testing or network restorations.
Multimode OM4 MPO Fiber Loopback Module (24-Fiber, Female, Optional Type A/B/C)
Optcore 24-fiber OM4 MPO loopback is typically used for fiber test and measurement procedures in MPO networking environments. It is designed to effectively test the fiber transmitter capability and receiver sensitivity of network components and systems such as 100GBASE-SR10 CFP/100GBASE-SR10 CXP transceivers that feature an MPO interface. By connecting them to MPO/MTP trunks/patch leads, MPO loopback can facilitate and accelerate the IL testing of optical network segments.
Features
• Designed for testing multimode OM4 fiber optic networking applications
• Factory terminated and tested MPO Interface, female and male types option of connectors
• 24 Core MPO components feature superior optical and mechanical properties
• RoHS Compliant
Specification
| Fiber Type | 50/125µm Multimode OM4 | Fiber Count | 24-Fiber |
| Connector Type | MPO-24 Female | Polish | UPC |
| Cable Length | Default | Cable Diameter | 3 mm |
| Insertion Loss | ≤1.0dB | Return Loss | ≥20dB |
| Polarity | Type A (Suitable for 100G CFP/CXP optics ) Type B Type C |
Durability | ≥500 times |
| Jacket Material | PVC | Jacket Color | N/A |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | 100Gb optical testing, quality control, parallel optics, and Infiniband Multimode OM4 fiber optics applications |

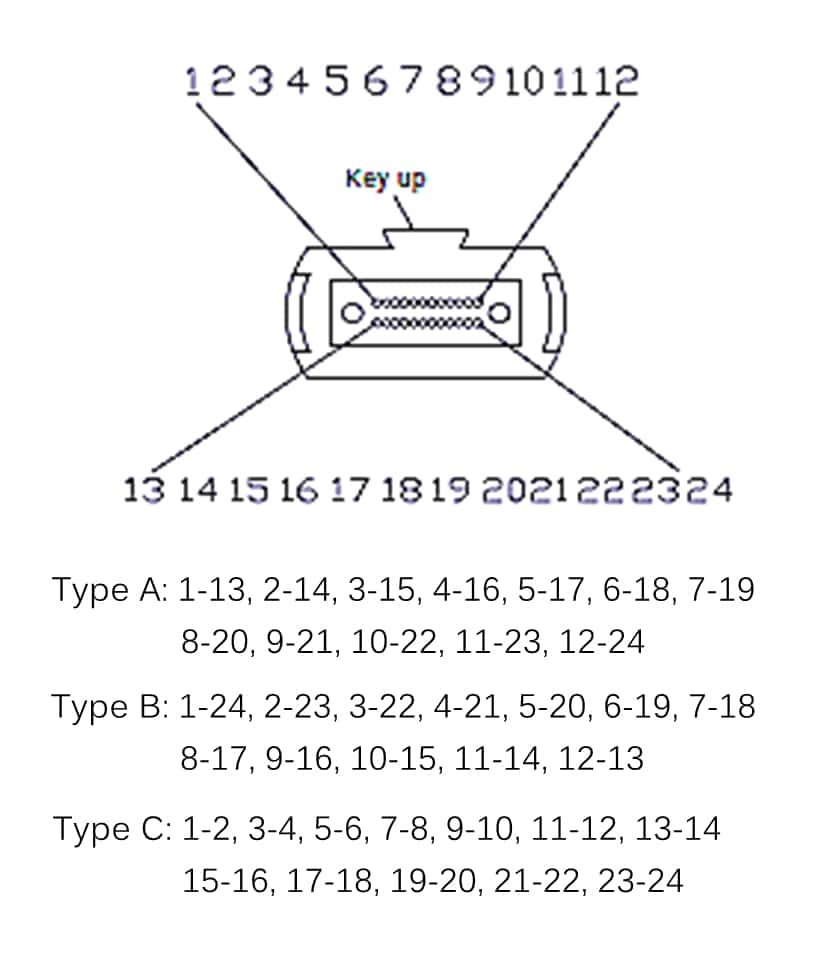

Polarity Type
Ordering Information
| Optcore Part Number | Description |
| FLBM-MPO/F-24OM4-A | OM4 MPO Fiber Loopback Module, 24-Fiber, Female, Type A |
| FLBM-MPO/F-24OM4-B | OM4 MPO Fiber Loopback Module, 24-Fiber, Female, Type B |
| FLBM-MPO/F-24OM4-C | OM4 MPO Fiber Loopback Module, 24-Fiber, Female, Type C |
Download
| Weight | 0.06 kg |
|---|
