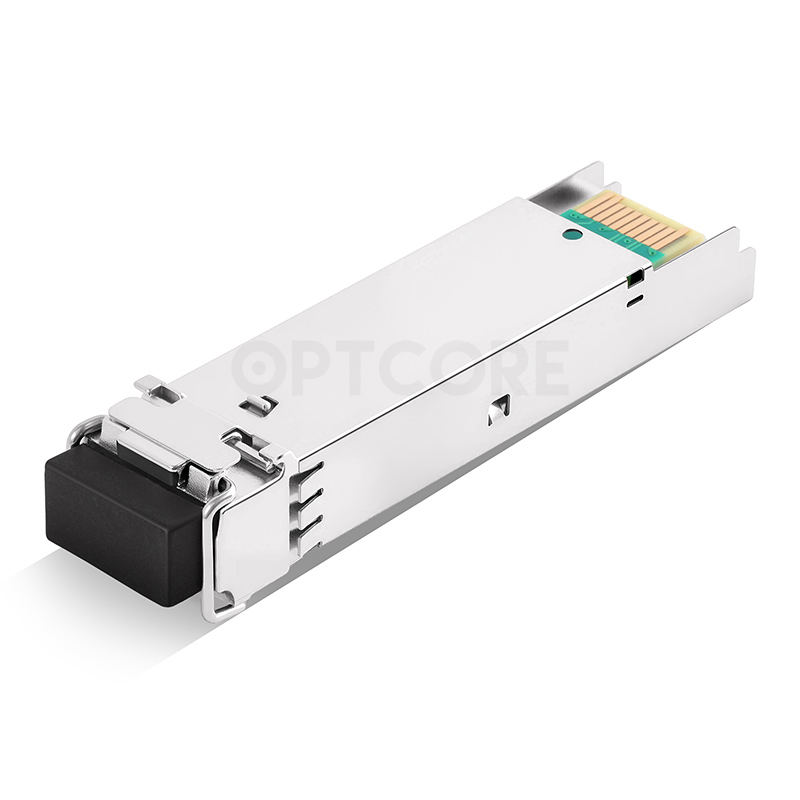

2.5G STM-16/OC48 80km CWDM SFP Transceiver Module

2.5Gbps CWDM 1270~1610nm 80km SFP Optical Transceiver Module for SDH STM-16/SONET OC-48/2x Fibre Channel

Optcore’s OPC2488-xx80DCR is a high performance and cost-effective CWDM (Coarse Wavelength-Division Multiplexing) SFP transceiver module for SDH STM-16/SONET OC-48 and 2x Fibre Channel long reach the application. The 2.5Gbps CWDM SFP module provides high capacity, high bandwidth communication solutions for multiplexed optical networks. This CWDM SFP transceiver module supports an 80km transmission distance on 9/125µm single-mode fiber. It features a highly reliable CWDM DFB transmitter and APD photo-detector into a LC Duplex optical connector. There are 18 center wavelengths available from 1270nm to 1610nm with each step 20nm.

Additionally, the OPC2488-xx80DCR CWDM SFP module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power, and transceiver supply voltage. These parameters are internally calibrated by default.

The 2.5Gbps CWDM SFP transceiver need uses with CWDM Multiplexer and Demultiplexer (CWDM Mux and Demux) that is separately sold by Optcore.

Features

• Support Up to 2.5Gb/s data links
• Hot-pluggable SFP footprint
• Compliant with SFP MSA standard
• Up to 80km on 9/125µm SMF
• 18-Wavelength CWDM DFB transmitter from 1270nm to 1610nm, with step 20nm
• Support Digital diagnostics, compliant with SFF-8472
• Single 3.3V power supply
• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specification

Product Series	Fiber Optical Transceiver	Optcore Part Number	OPC2488-xx80DCR
Form Factor	CWDM SFP	Data Rate	2.5 Gb/s
Wavelength	1270~1610 nm	Fiber Type	SMF
Max Distance	80 km	Optical Components	DFB/APD
Transmitter Power	-2～3dBm	Extinction ratio	> 8.2 dB
Receiver Sensitivity	< -28 dBm	Receiver Overload	> -9 dBm
Connector	LC Duplex	Digital Diagnostic Monitoring	Yes
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C	Weight	0.025 kg
Application	SDH STM-16 switches and routers SONET OC-48 switches and routers 2x Fibre Channel Other Optical Links	Compliance	IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS

Ordering Information

Optcore Part Number	Description
OPC2488-2780DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1270nm, 80km, LC, DDM
OPC2488-2980DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1290nm, 80km, LC, DDM
OPC2488-3180DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1310nm, 80km, LC, DDM
OPC2488-3380DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1330nm, 80km, LC, DDM
OPC2488-3580DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1350nm, 80km, LC, DDM
OPC2488-3780DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1370nm, 80km, LC, DDM
OPC2488-3980DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1390nm, 80km, LC, DDM
OPC2488-4180DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1410nm, 80km, LC, DDM
OPC2488-4380DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1430nm, 80km, LC, DDM
OPC2488-4580DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1450nm, 80km, LC, DDM
OPC2488-4780DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1470nm, 80km, LC, DDM
OPC2488-4980DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1490nm, 80km, LC, DDM
OPC2488-5180DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1510nm, 80km, LC, DDM
OPC2488-5580DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1530nm, 80km, LC, DDM
OPC2488-5380DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1550nm, 80km, LC, DDM
OPC2488-5780DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1570nm, 80km, LC, DDM
OPC2488-5980DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1590nm, 80km, LC, DDM
OPC2488-6180DCR	2.5Gb/s CWDM SFP Transceiver Module, SMF, 1610nm, 80km, LC, DDM

Download

Spec / Datasheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
