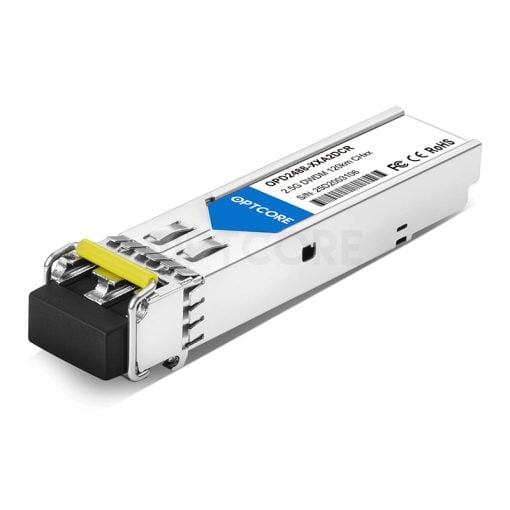

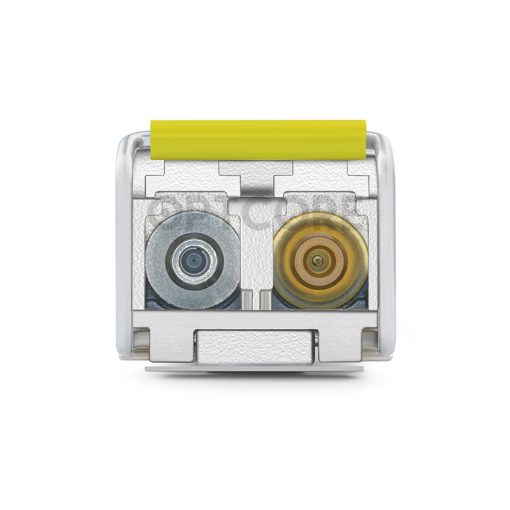

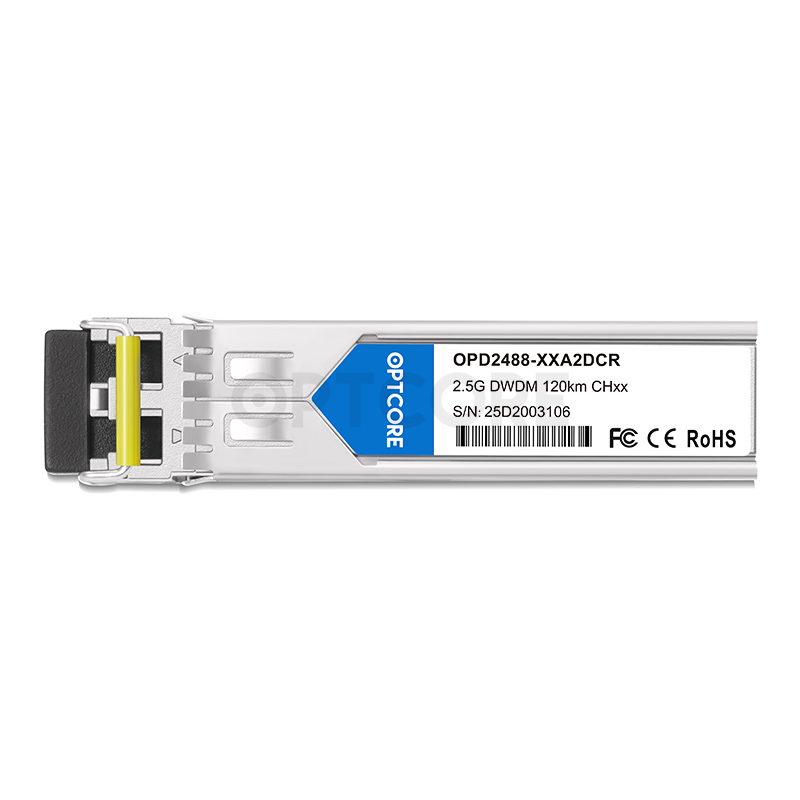

Optcore 2.5G STM-16/OC48 DWDM SFP CH17-CH61 120km Transceiver
US$ 179.00 (Excl. VAT)
Good quality 2.5Gb/s DWDM SFP Transceiver Module (100GHz ITU Grid, C Band, 120km, LC, DDM).
2.5G DWDM SFP Transceiver Module for SDH STM-16 / SONET OC-48 / 2x Fibre Channel (100GHz, CH17~61, 120km, LC, DOM)
Optcore’s OPD2488-xxA2DCR is a high-performance and cost-effective Dense Wavelength-Division Multiplexing SFP transceiver module for SDH STM-16/SONET OC-48 and 2x Fibre Channel long reach (LR-2) application. The 2.5Gbps DWDM SFP module provides high capacity, high bandwidth communication solutions for multiplexed optical networks. This DWDM SFP transceiver module supports a 120km transmission distance of 9/125µm single-mode fiber. It features a highly reliable DWDM DFB transmitter and APD photo-detector into a duplex LC optical connector.
Additionally, the OPD2488-xxA2DCR DWDM SFP module has been integrated with an enhanced digital diagnostic monitoring interface (DDM) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power, and transceiver supply voltage. These parameters are internally calibrated by default.
The 2.5Gbps DWDM SFP transceiver need uses with DWDM Multiplexer and Demultiplexer (DWDM Mux and Demux) that is separately sold by Optcore.
Features
• Hot-pluggable SFP footprint
• Up to 2.5Gb/s data links
• Compliant with SFP MSA standard
• DWDM DFB transmitter and APD receiver
• Up to 120km on 9/125µm SMF
• 100GHz ITU Grid, C Band
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Reduce the cost of leasing or laying fiber
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
• Use with DWDM MUX/DEMUX, combined DWDM optics solution
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OPD2488-xxA2DCR |
| Form Factor | DWDM SFP | Data Rate | 2.5 Gb/s |
| Wavelength | 100GHz ITU Grid, C Band | Fiber Type | SMF |
| Max Distance | 120 km | Optical Components | DWDM DFB/APD |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -29 dBm | Receiver Overload | > -9 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | C Band DWDM networks SONET/SDH OC48/STM-16 networks 2x Fiber channel over DWDM Gigabit Ethernet over DWDM |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part Number | Description | ITU Channel |
Frequency(THz) |
Wavelength(nm) |
| OPD2488-17A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1563.86nm, 120km, LC | 17 | 191.7 | 1563.86 |
| OPD2488-18A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1563.05nm, 120km, LC | 18 | 191.8 | 1563.05 |
| OPD2488-19A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1562.23nm, 120km, LC | 19 | 191.9 | 1562.23 |
| OPD2488-20A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1561.42nm, 120km, LC | 20 | 192.0 | 1561.42 |
| OPD2488-21A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1560.61nm, 120km, LC | 21 | 192.1 | 1560.61 |
| OPD2488-22A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1559.79nm, 120km, LC | 22 | 192.2 | 1559.79 |
| OPD2488-23A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1558.98nm, 120km, LC | 23 | 192.3 | 1558.98 |
| OPD2488-24A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1558.17nm, 120km, LC | 24 | 192.4 | 1558.17 |
| OPD2488-25A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1557.36nm, 120km, LC | 25 | 192.5 | 1557.36 |
| OPD2488-26A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1556.55nm, 120km, LC | 26 | 192.6 | 1556.55 |
| OPD2488-27A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1555.75nm, 120km, LC | 27 | 192.7 | 1555.75 |
| OPD2488-28A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1554.94nm, 120km, LC | 28 | 192.8 | 1554.94 |
| OPD2488-29A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1554.13nm, 120km, LC | 29 | 192.9 | 1554.13 |
| OPD2488-30A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1553.33nm, 120km, LC | 30 | 193.0 | 1553.33 |
| OPD2488-31A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1552.52nm, 120km, LC | 31 | 193.1 | 1552.52 |
| OPD2488-32A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1551.72nm, 120km, LC | 32 | 193.2 | 1551.72 |
| OPD2488-33A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1550.92nm, 120km, LC | 33 | 193.3 | 1550.92 |
| OPD2488-34A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1550.12nm, 120km, LC | 34 | 193.4 | 1550.12 |
| OPD2488-35A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1549.32nm, 120km, LC | 35 | 193.5 | 1549.32 |
| OPD2488-36A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1548.51nm, 120km, LC | 36 | 193.6 | 1548.51 |
| OPD2488-37A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1547.72nm, 120km, LC | 37 | 193.7 | 1547.72 |
| OPD2488-38A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1546.92nm, 120km, LC | 38 | 193.8 | 1546.92 |
| OPD2488-39A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1546.12nm, 120km, LC | 39 | 193.9 | 1546.12 |
| OPD2488-40A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1545.32nm, 120km, LC | 40 | 194.0 | 1545.32 |
| OPD2488-41A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1544.53nm, 120km, LC | 41 | 194.1 | 1544.53 |
| OPD2488-42A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1543.73nm, 120km, LC | 42 | 194.2 | 1543.73 |
| OPD2488-43A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1542.94nm, 120km, LC | 43 | 194.3 | 1542.94 |
| OPD2488-44A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1542.14nm, 120km, LC | 44 | 194.4 | 1542.14 |
| OPD2488-45A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1541.35nm, 120km, LC | 45 | 194.5 | 1541.35 |
| OPD2488-46A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1540.56nm, 120km, LC | 46 | 194.6 | 1540.56 |
| OPD2488-47A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1539.77nm, 120km, LC | 47 | 194.7 | 1539.77 |
| OPD2488-48A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1538.98nm, 120km, LC | 48 | 194.8 | 1538.98 |
| OPD2488-49A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1538.19nm, 120km, LC | 49 | 194.9 | 1538.19 |
| OPD2488-50A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1537.4nm, 120km, LC | 50 | 195.0 | 1537.4 |
| OPD2488-51A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1536.61nm, 120km, LC | 51 | 195.1 | 1536.61 |
| OPD2488-52A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1535.82nm, 120km, LC | 52 | 195.2 | 1535.82 |
| OPD2488-53A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1535.04nm, 120km, LC | 53 | 195.3 | 1535.04 |
| OPD2488-54A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1534.25nm, 120km, LC | 54 | 195.4 | 1534.25 |
| OPD2488-55A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1533.47nm, 120km, LC | 55 | 195.5 | 1533.47 |
| OPD2488-56A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1532.68nm, 120km, LC | 56 | 195.6 | 1532.68 |
| OPD2488-57A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1531.9nm, 120km, LC | 57 | 195.7 | 1531.9 |
| OPD2488-58A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1531.12nm, 120km, LC | 58 | 195.8 | 1531.12 |
| OPD2488-59A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1530.33nm, 120km, LC | 59 | 195.9 | 1530.33 |
| OPD2488-60A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1529.55nm, 120km, LC | 60 | 196.0 | 1529.55 |
| OPD2488-61A2DCR | 2.5Gb/s DWDM SFP Optical Transceiver, SMF, 1528.77nm, 120km, LC | 61 | 196.1 | 1528.77 |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
