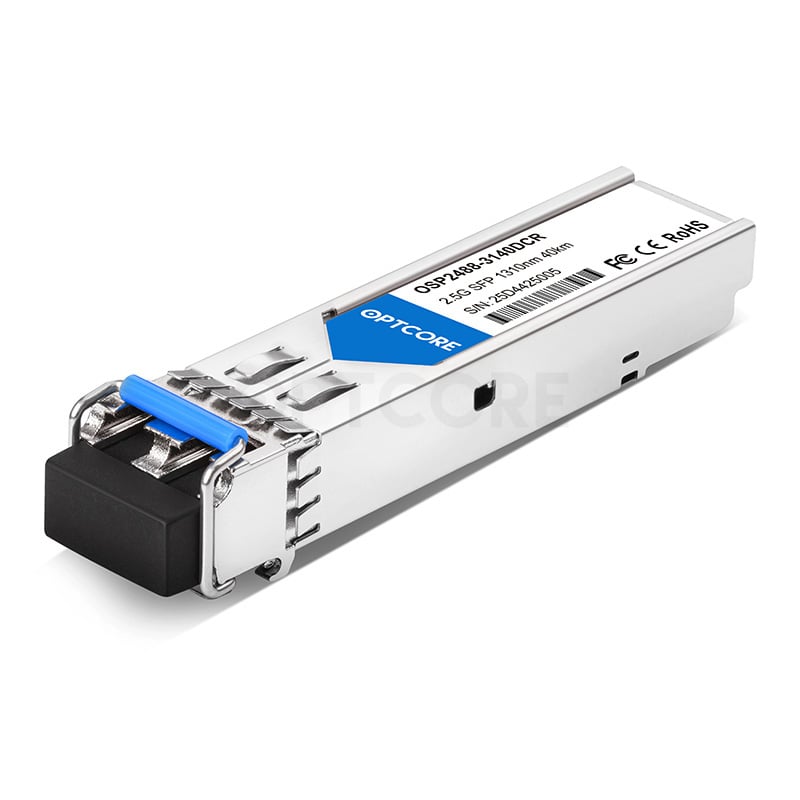

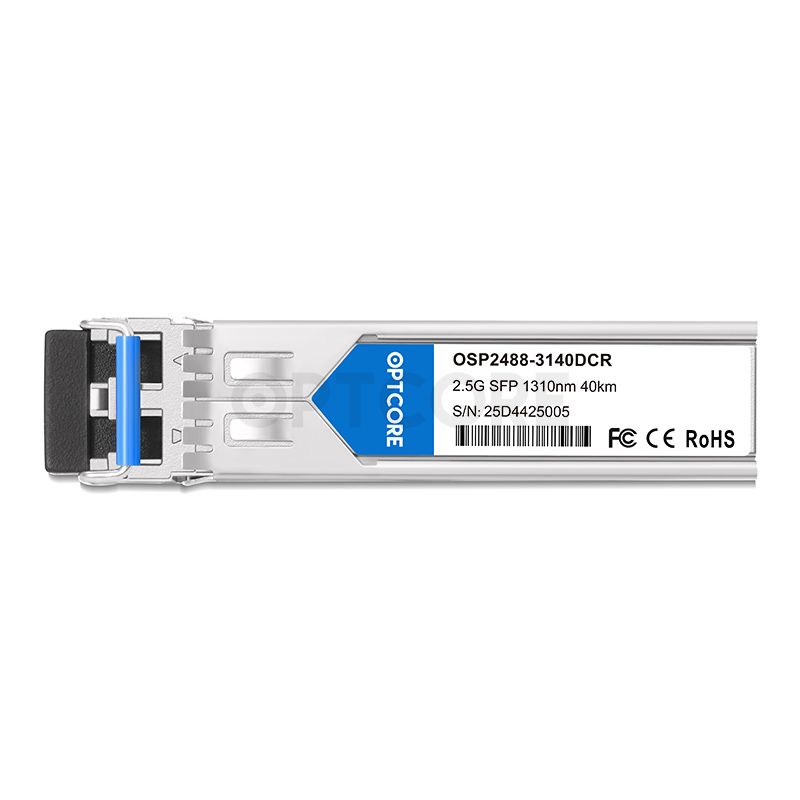

Optcore 2.5G Single-mode 1310nm 40km LR-1 SFP Transceiver
US$ 54.00 (Excl. VAT)
Good quality 2.5Gbps SFP Transceiver Module for SDH STM-16/SONET OC-48 (SMF, 1310nm, 40km, LC, DDM).
2.5G Single-mode 1310nm 40km SFP Transceiver Module for SDH STM-16 L-16.1/SONET OC-48 LR-1/2x Fibre Channel
Optcore’s OSP2488-3140DCR is a high-performance small form factor pluggable SFP module for 2.5Gb/s serial optical data communications such as SDH STM-16 L-16.1/SONET OC-48 LR-1/2x Fibre Channel application. This SFP transceiver module provides a 40km transmission distance over single mode fiber at a nominal wavelength of 1310nm. The transmitter section incorporates a 1310nm DFB laser that is class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed APD photodetector and trans-impedance preamplifier.
Additionally, the OSP2488-3140DCR SFP module also features a digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, and laser average output power, and received optical power. These parameters are internally calibrated by default.
Features
• Hot-pluggable SFP footprint
• Up to 2.5Gb/s data links
• Compliant with SFP MSA standard
• 1310nm DFB laser transmitter and APD receiver
• Up to 40km on 9/125µm SMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP2488-3140DCR |
| Form Factor | SFP (Mini-GBIC) | Data Rate | 2.5 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/APD |
| Transmitter Power | -2～3 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -28 dBm | Receiver Overload | > -9 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application |
SDH STM-16 switches and routers SONET OC-48 switches and routers 2x Fibre Channel Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OSP2488-3140DCR | 2.5Gb/s SFP Optical Transceiver, Single mode, 1310nm, 40km, LC, DDM, 0ºC~+70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
