2.5G Single mode 1310nm 2km 1×9 Transceiver
US$ 20.00 (Excl. VAT)
Good quality 2.5Gbps 1×9 Optical Transceiver (SMF, 1310nm, 2km, SC/FC/ST, 3.3V or 5V).

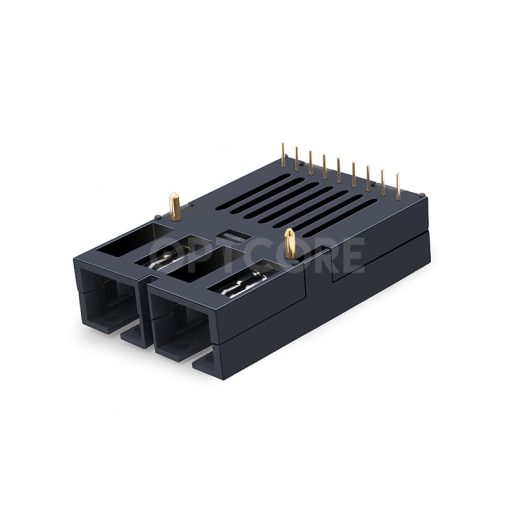

2.5Gbps Single mode 1×9 Optical Transceiver Module (SMF, 1310nm, 2km, SC/ST/FC, 3.3V/5V)
The OPT2488-312xxCR series are high-performance and cost-effective 1×9 optical transceivers for high-speed serial optical communication that require data rates of 2.5Gb/s. They are suitable for SDH STM-16 and SONET OC-48 short-reach applications. This series of 1×9 optical transceivers provide a 2km transmission distance over single mode fiber at a nominal wavelength of 1310nm.
Each 1×9 transceiver module consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable 1310 nm FP Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates a high-speed PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.

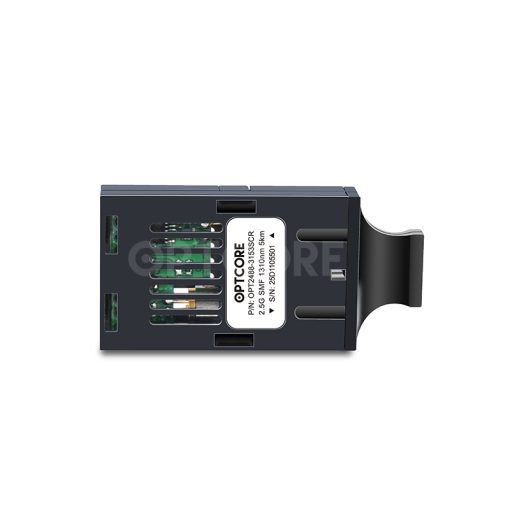

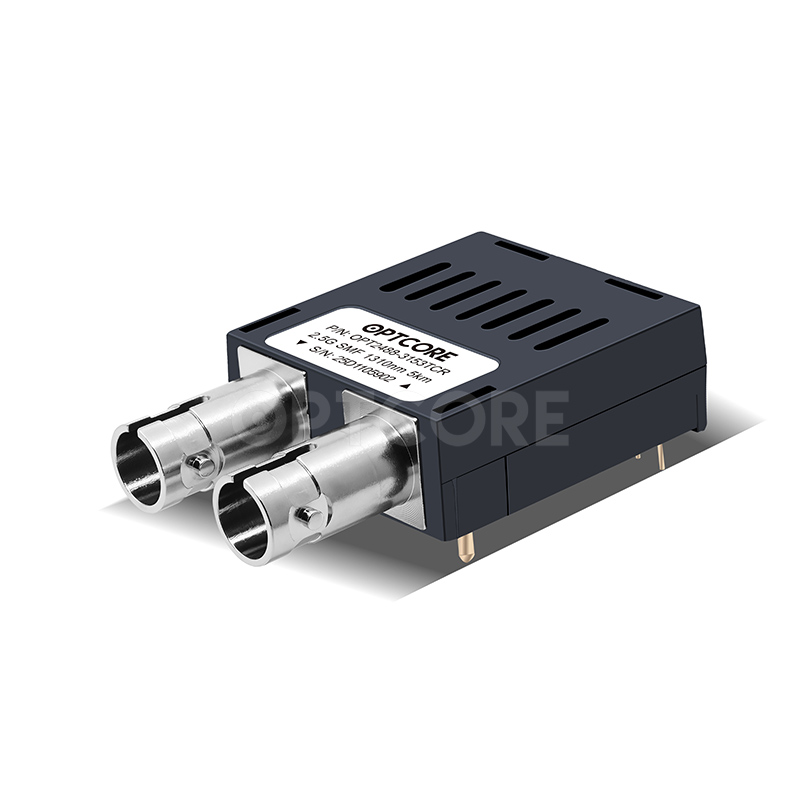

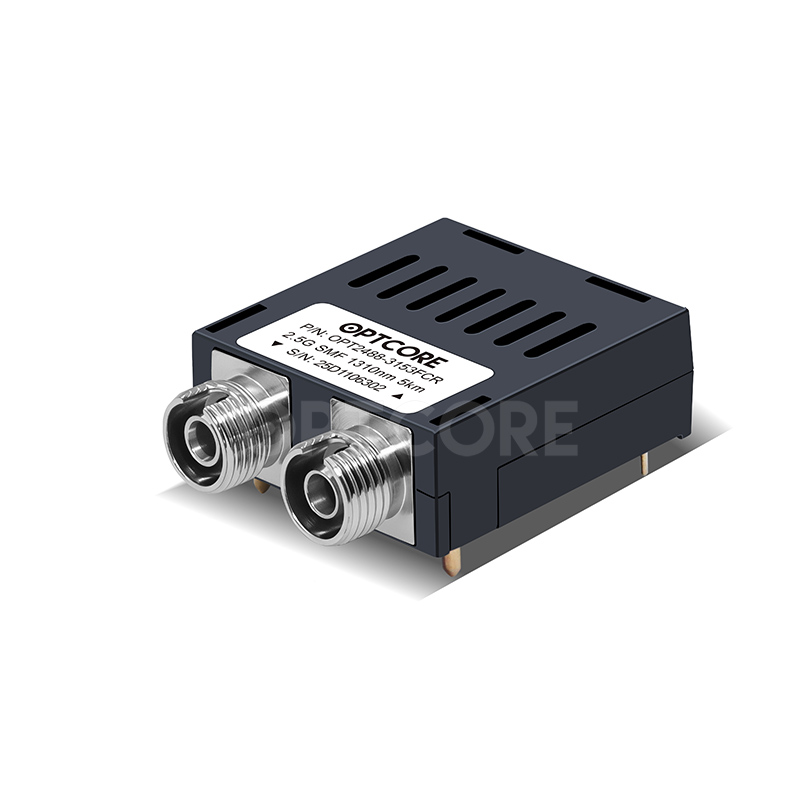

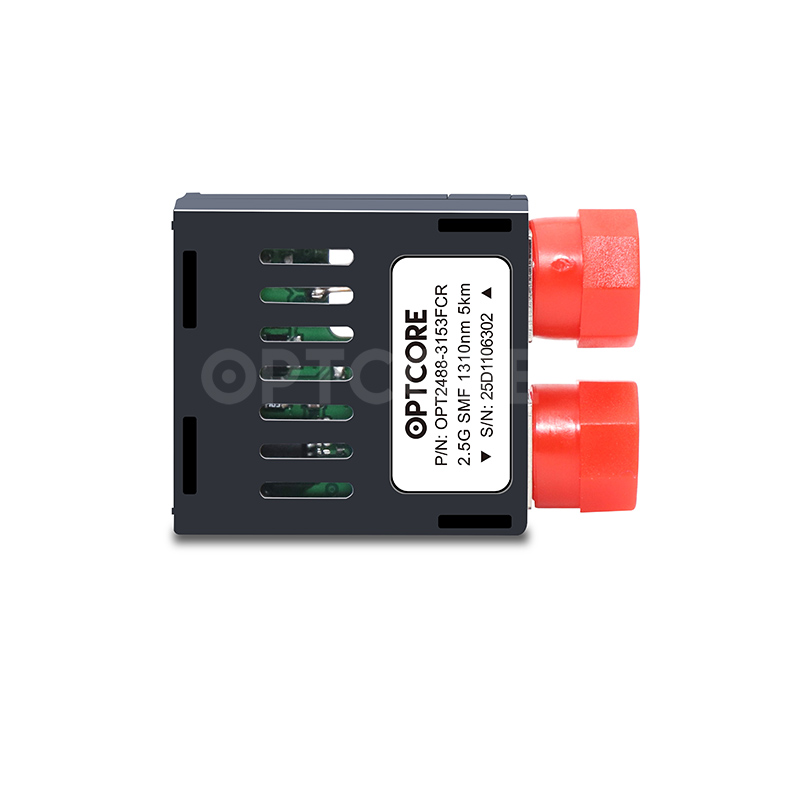

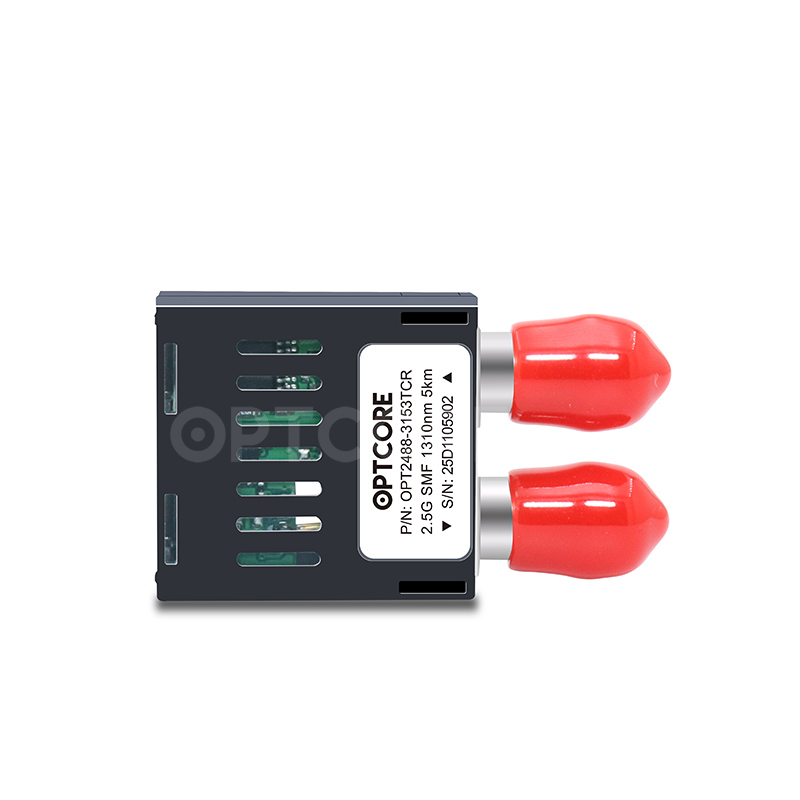

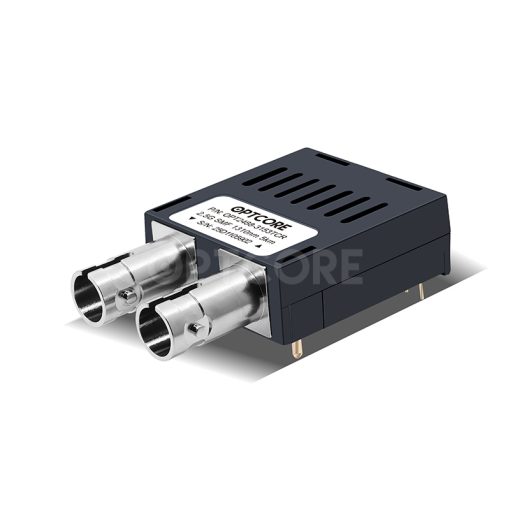

The OPT2488-312xxCR series 1×9 transceiver provides with choice of duplex SC, FC, or ST receptacles for different clients.
Features

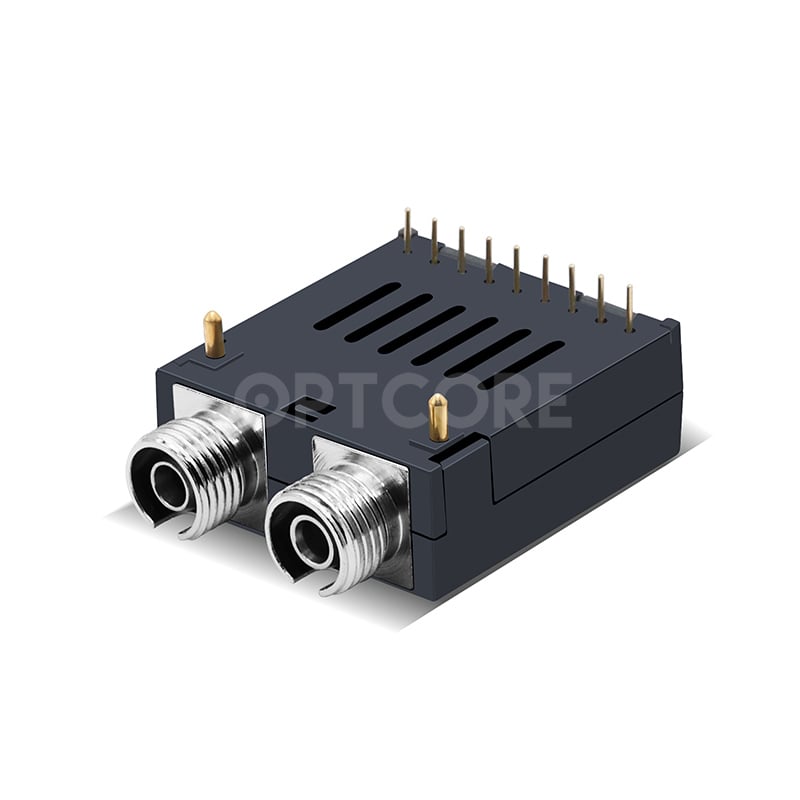

• Industry Standard 1×9 footprint package
• Up to 2.5Gbps data links

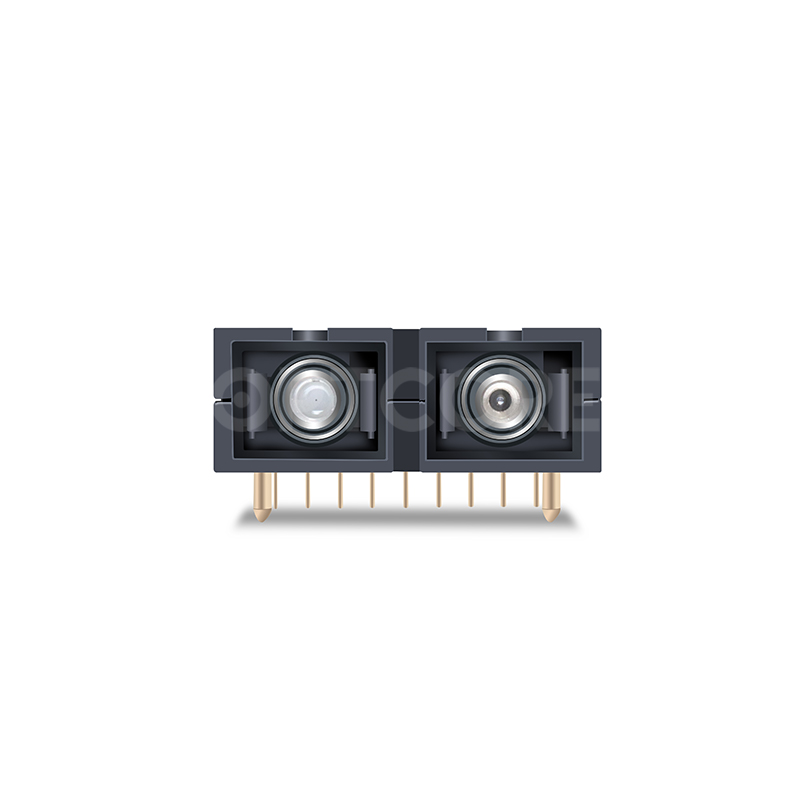

• Duplex SC, ST or FC connector
• Single +3.3V or +5V Power Supply
• Operating wavelength 1310nm
• Up to 2km over single mode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: 0 to +70°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT2488-312xxCR | Form Factor | 1×9 |
| Data Rate | 2.5 Gb/s | Wavelength | 1310 nm |
| Max Distance | 2 km | Fiber Type | SMF |
| Voltage | 3.3V or 5V | Optical Components | FP/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -18 dBm | Connector | Duplex SC,ST or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | SDH STM-16 switches and routers SONET OC-48 switches and routers 2x Fibre Channel Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OPT2488-3123SCR | 2.5Gbps 1×9 Optical Transceiver, Single mode, 1310nm, 2km, 3.3V, SC Connector, 0ºC ~ +70ºC |
| OPT2488-3123TCR | 2.5Gbps 1×9 Optical Transceiver, Single mode, 1310nm, 2km, 3.3V, ST Connector, 0ºC ~ +70ºC |
| OPT2488-3123FCR | 2.5Gbps 1×9 Optical Transceiver, Single mode, 1310nm, 2km, 3.3V, FC Connector, 0ºC ~ +70ºC |
| OPT2488-3125SCR | 2.5Gbps 1×9 Optical Transceiver, Single mode, 1310nm, 2km, 5V, SC Connector, 0ºC ~ +70ºC |
| OPT2488-3125TCR | 2.5Gbps 1×9 Optical Transceiver, Single mode, 1310nm, 2km, 5V, ST Connector, 0ºC ~ +70ºC |
| OPT2488-3125FCR | 2.5Gbps 1×9 Optical Transceiver, Single mode, 1310nm, 2km, 5V, FC Connector, 0ºC ~ +70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
