Optcore 2.5G Single-mode 1310nm 20km IR-1 SFP Transceiver

2.5G Single-mode 1310nm 20km  SFP Transceiver Module for SDH STM-16 S-16.1/SONET OC-48 IR-1/2x Fibre Channel

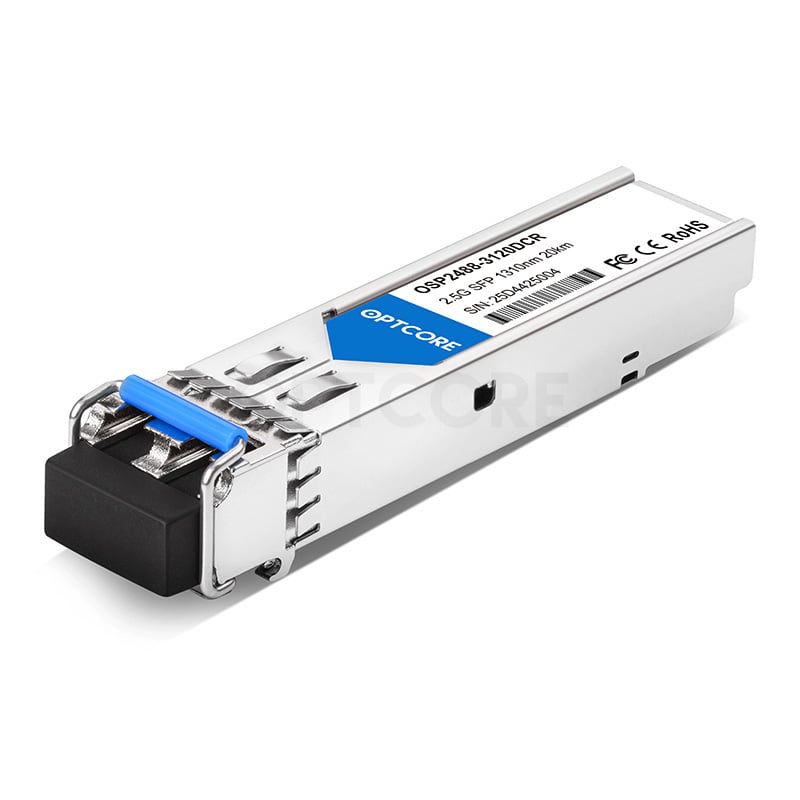

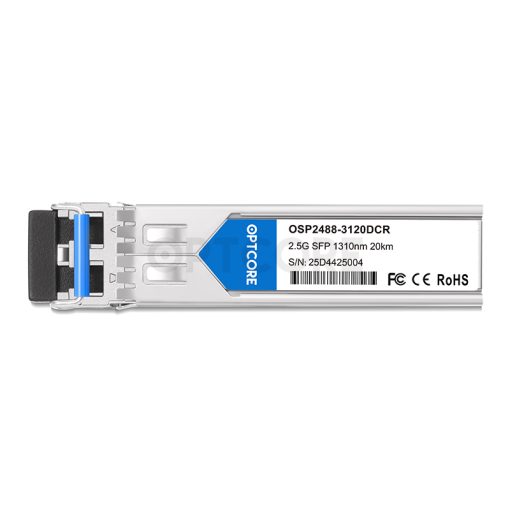

Optcore’s OSP2488-3120DCR is a high-performance small form factor pluggable SFP module for 2.5Gb/s serial optical data communications such as SDH STM-16 S-16.1/SONET OC-48 IR-1/2x Fibre Channel application. This SFP transceiver module provides 20km transmission distance over single mode fiber at a nominal wavelength of 1310nm. The transmitter section incorporates a 1310nm DFB laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed InGaAs PIN photodiode (PD) and trans-impedance preamplifier. The 2.5Gb/s SFP module series is fully compliant with SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.

Additionally, the OSP2488-3120DCR SFP module also features a digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, laser average output power and received optical power. These parameters are internally calibrated by default.

Features

• Hot-pluggable SFP footprint
• Up to 2.5Gb/s data links
• Compliant with SFP MSA standard
• 1310nm DFB laser transmitter and InGaAs PIN receiver
• Up to 20km on 9/125µm SMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specification

Ordering Information

Download

Spec / Datasheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
