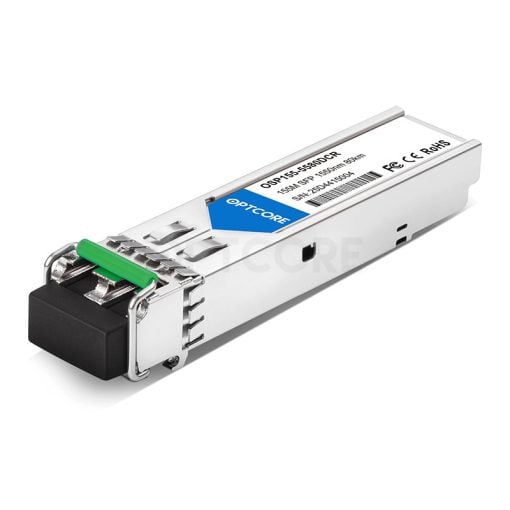

Generic Compatible 155Mbps SMF 1550nm 80km SFP Transceiver for Fast Ethernet/STM-1/OC-3
US$ 20.00 (Excl. VAT)
Good quality 155Mbps SFP Transceiver Module for Fast Ethernet/SDH STM-1/SONET OC-3 (SMF, 1550nm, 80km, LC).
155Mbps SMF 1550nm 80km SFP Optical Transceiver Module for Fast Ethernet/SDH STM-1/SONET OC-3
Optcore’s OSP155-5580xCR is a high-performance small form factor pluggable (SFP) transceiver module for duplex optical data communications such as Fast Ethernet and SDH STM-1/SONET OC-3. This SFP module provides 80km transmission distance over single-mode fiber at a nominal wavelength of 1550nm. The transmitter section uses a 1550nm DFB laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed InGaAs PIN photodiode (PD) integrated with a trans-impedance preamplifier (TIA). The 155Mbps SFP module series is fully compliant with SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.
Features
• Hot-Pluggable SFP package with LC Duplex Connector
• Compliant with SFP MSA standard specification
• Support up to 155Mb/s data links
• Up to 80km on 9/125µm SMF
• 1550nm DFB laser transmitter and InGaAs PIN receiver
• +3.3V single power supply
• Low EMI and excellent ESD protection
• ROHS compliant and Lead-Free
• Optional Digital Diagnostic Monitor Interface
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP155-5580xCR |
| Form Factor | SFP | Data Rate | 155Mb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 10 dB |
| Receiver Sensitivity | < -32 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes or No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | Fast Ethernet SDH STM-1 SONET OC-3 Other optical transmission systems |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OSP155-5580DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1550nm, 80km, LC, 0ºC~+70ºC |
| OSP155-5580DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1550nm, 80km, LC, DDM, 0ºC~+70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
