155Mbps Singlemode 1550nm 80km 1×9 Industrial Transceiver
US$ 24.00 (Excl. VAT)
Good quality 155Mbps 1×9 Industrial Transceiver (SMF, 1550nm, 80km, SC/FC/ST, 3.3V or 5V).
155Mbps 1×9 Industrial Optical Transceiver (SMF, 1550nm, 80km, SC/ST/FC, 3.3V/5V, -40~85°C)
The OPT155-5580xxTR series is the high-performance, and cost-effective single mode 1×9 industrial optical transceiver for serial optical communication long reach applications in harsh environments. They are suitable for 100BASE-ZX Fast Ethernet, SDH STM-1, SONET OC-3, and ATM (Asynchronous Transfer Mode) designs at the 155Mb/s rate. This series 1×9 industrial transceiver module provides an 80km transmission distance over single mode fiber at a nominal wavelength of 1550nm.
Each 1×9 industrial transceiver module consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable 1550 nm DFB Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates an efficient InGaAs/InP PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.
The OPT155-5580xxTR series provides a choice of duplex SC, FC, or ST connectors for different clients.
Features
• Industry Standard 1×9 package
• Up to 155Mb/s data links
• Duplex SC, ST, or FC connector
• Single +3.3V or +5V Power Supply
• Operating wavelength 1550nm
• Up to 80 km over single-mode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: -40 to +85°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT155-5580xxTR | Form Factor | 1×9 Package |
| Data Rate | 155 Mb/s | Wavelength | 1550 nm |
| Max Distance | 80 km | Fiber Type | Single Mode (SMF) |
| Voltage | 3.3V or 5V | Optical Components | DFB/PIN |
| Transmitter Power | -8 ~ -3 dBm | Extinction ratio | > 10 dB |
| Receiver Sensitivity | < -37 dBm | Connector | Duplex SC, ST or FC |
| Environment | Operating: -40°C to 85°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | ATM 155 Mbps Links SONET OC-3 SDH STM-1 Industrial Fast Ethernet 100 Mb/s Links Industrial Ethernet media converters |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |

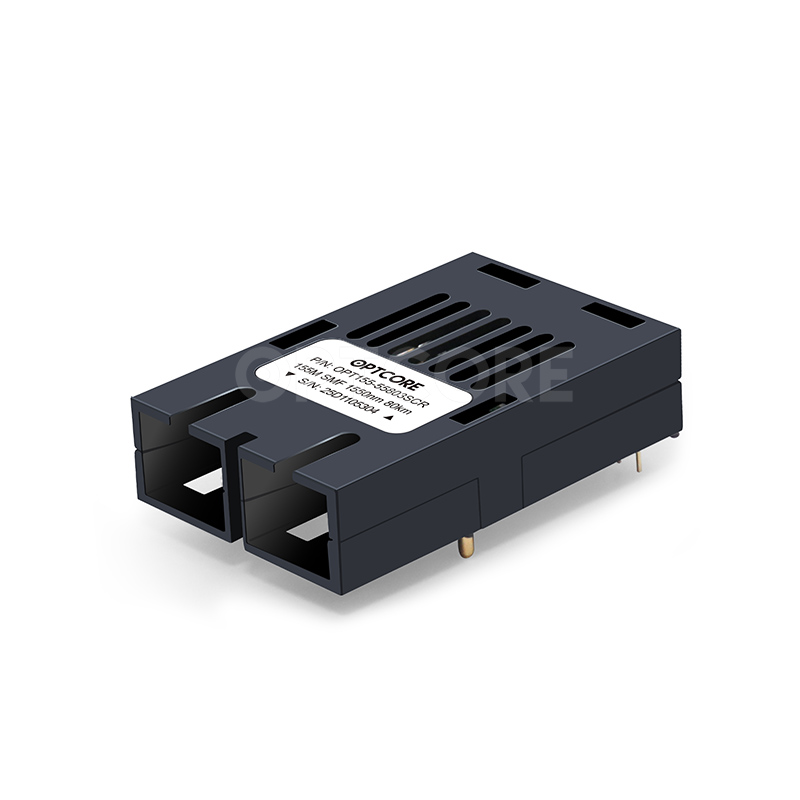

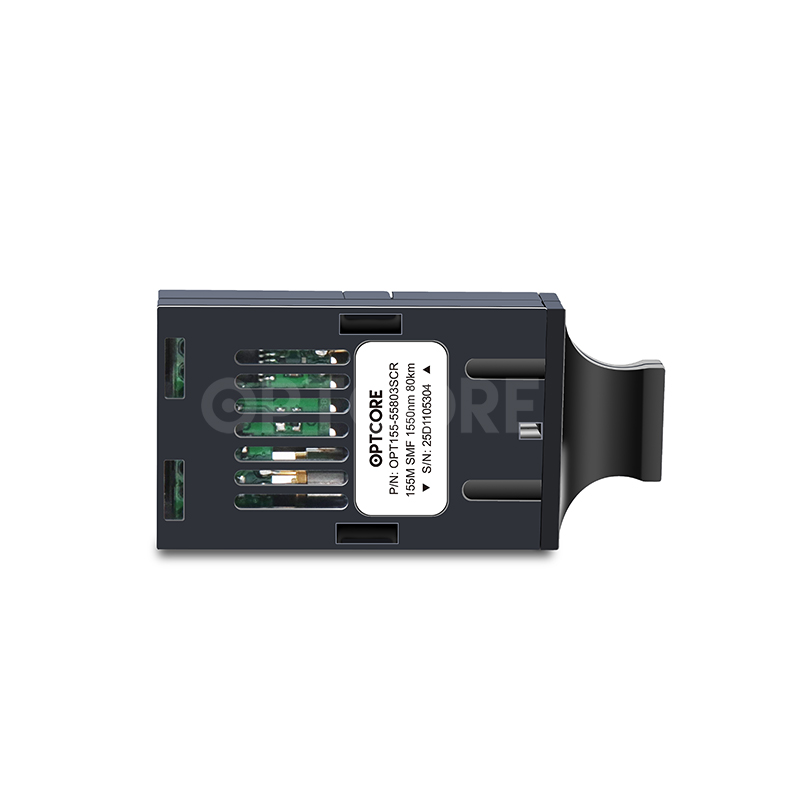

| OPT155-55803STR | 155Mbps 1×9 Industrial Transceiver, Singlemode, 1550nm, 80km, 3.3V, SC Connector, -40ºC ~ +85ºC |

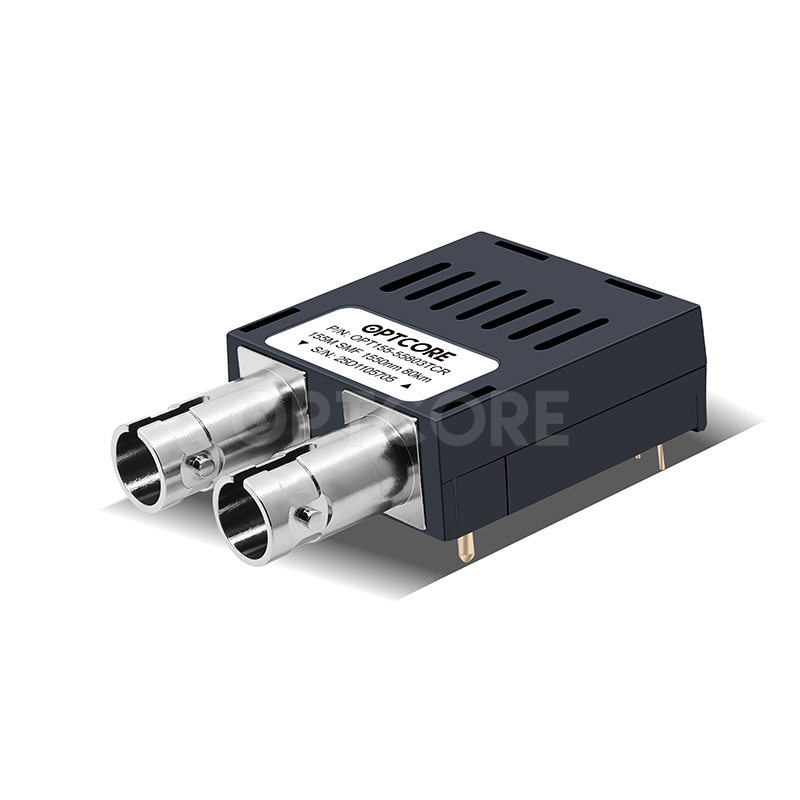

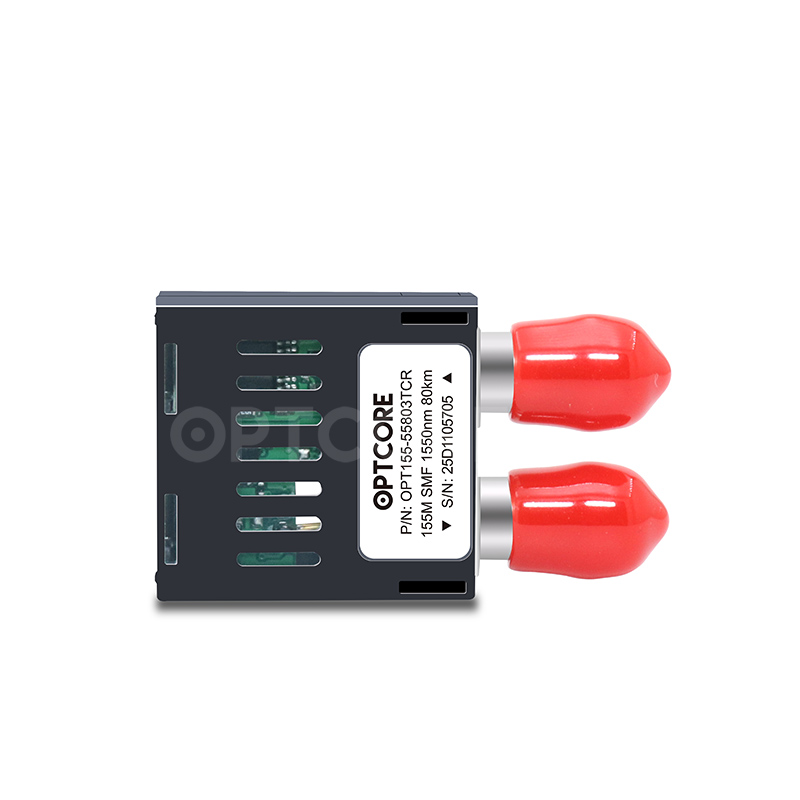

| OPT155-55803TTR | 155Mbps 1×9 Industrial Transceiver, Singlemode, 1550nm, 80km, 3.3V, ST Connector, -40ºC ~ +85ºC |

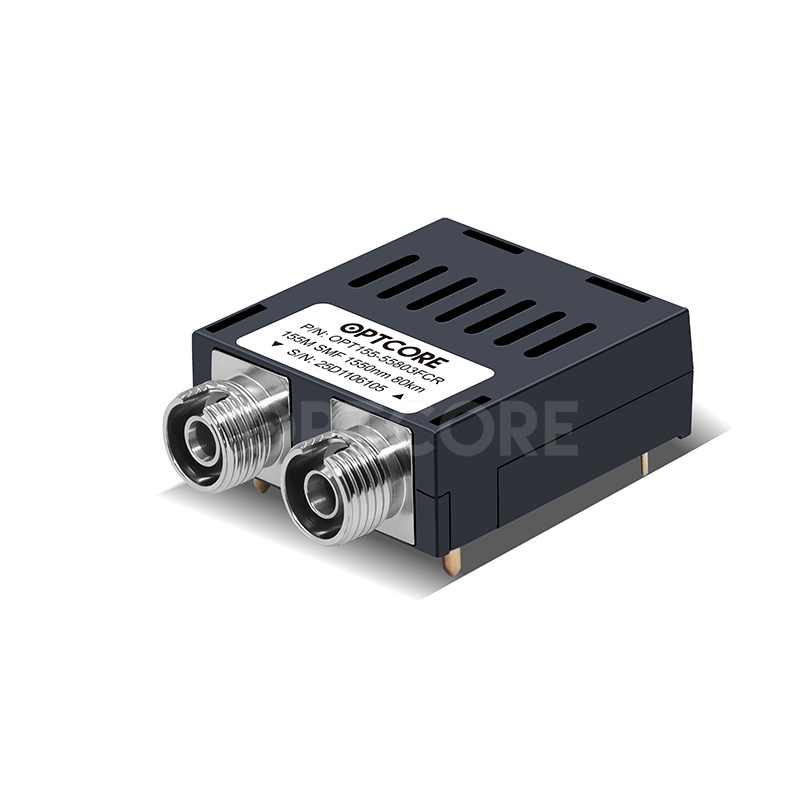

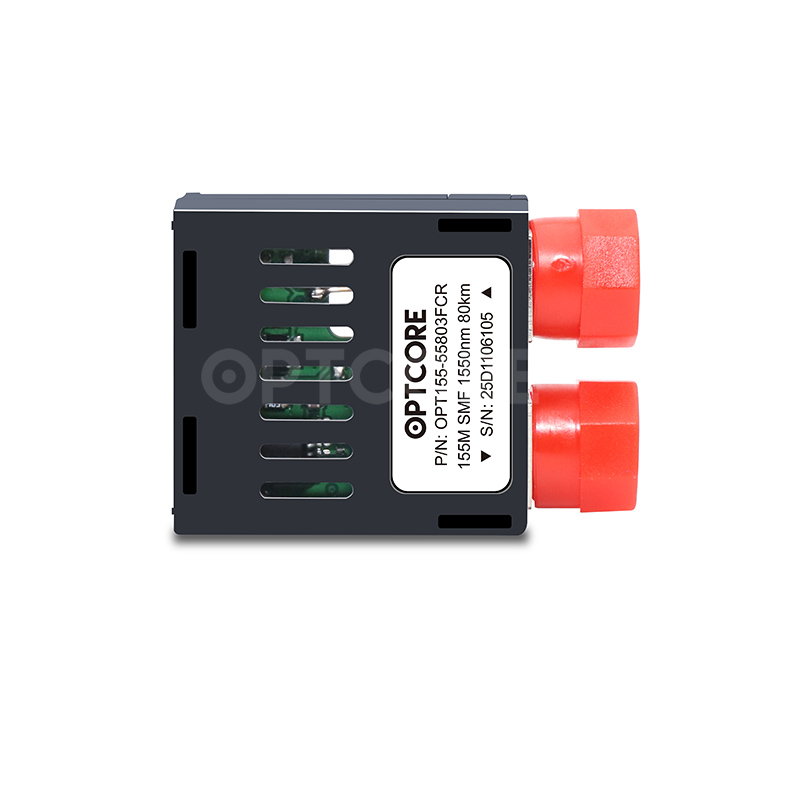

| OPT155-55803FTR | 155Mbps 1×9 Industrial Transceiver, Singlemode, 1550nm, 80km, 3.3V, FC Connector, -40ºC ~ +85ºC |
| OPT155-55805STR | 155Mbps 1×9 Industrial Transceiver, Singlemode, 1550nm, 80km, 5V, SC Connector, -40ºC ~ +85ºC |
| OPT155-55805TTR | 155Mbps 1×9 Industrial Transceiver, Singlemode, 1550nm, 80km, 5V, ST Connector, -40ºC ~ +85ºC |
| OPT155-55805FTR | 155Mbps 1×9 Industrial Transceiver, Singlemode, 1550nm, 80km, 5V, FC Connector, -40ºC ~ +85ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
