(End-of-Sale) 155Mbps Singlemode 1310nm 80km 1×9 Industrial Transceiver

155Mbps 1×9 Industrial Optical Transceiver (SMF, 1310nm, 80km, SC/ST/FC, 3.3V/5V, -40~85°C)

The OPT155-3180xxTR series is the high-performance, and cost-effective single-mode 1×9 industrial optical transceiver for serial optical communication long reach applications in harsh environments. They are suitable for Fast Ethernet, SDH STM-1, SONET OC-3, and ATM (Asynchronous Transfer Mode) designs at the 155Mb/s rate. This series 1×9 industrial transceiver module provides an 80km transmission distance over single-mode fiber at a nominal wavelength of 1310nm.

Each 1×9 transceiver module consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable 1310 nm DFB Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates an efficient InGaAs/InP PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.

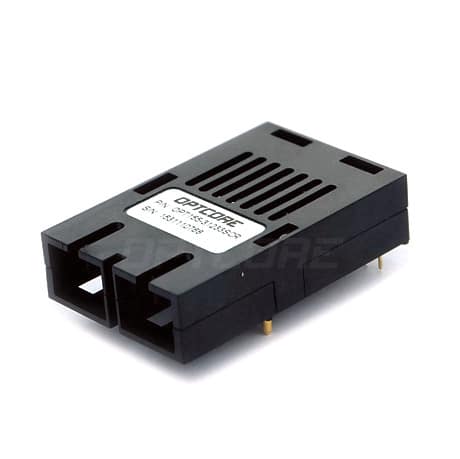

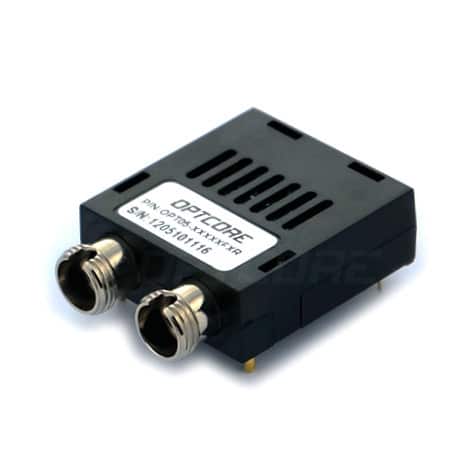

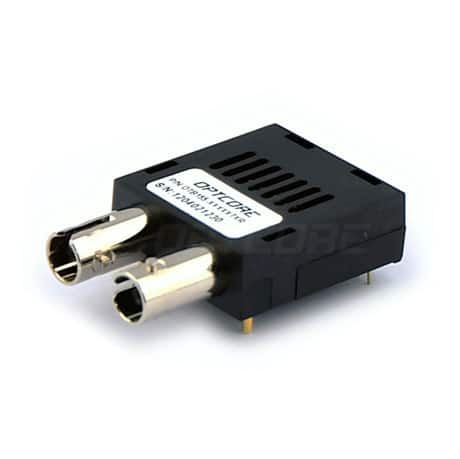

The OPT155-3180xxCR series provide with choice of duplex SC, FC, or ST connector for the different client.

Features

• Industry Standard 1×9 package
• Up to 155Mb/s data links
• Duplex SC, ST, or FC connector
• Single +3.3V or +5V Power Supply
• Operating wavelength 1310nm
• Up to 80 km over single-mode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: -40 to +85°C
• ROHS compliant and Lead-Free

Specification

Ordering Information

Download

 OPT155-3180xxTR   Data Sheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
