155Mbps Multimode 850nm 2km SC/FC/ST 1×9 Transceiver
Price range: US$ 7.90 through US$ 8.40 (Excl. VAT)
Good quality 155Mbps 1×9 Optical Transceiver (MMF, 850nm, 2km, SC/FC/ST, 3.3V or 5V).
155Mbps Multimode1x9 Fiber Optical Transceiver (MMF, 850nm, 2km, SC/FC/ST, 3.3V/5V)
The OPT155-852xxCR series is the high-performance and cost-effective multi-mode 1×9 optical transceiver for serial optical communication applications. They are suitable for Fast Ethernet, SDH STM-1, SONET OC-3, and ATM (Asynchronous Transfer Mode) designs at the 155Mb/s rate. This series 1X9 transceiver module provides a 2km transmission distance over multi-mode fiber at a nominal wavelength of 850nm.
Each 1×9 transceiver module consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable 850 nm VCSEL Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates an efficient InGaAs/InP PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.
The OPT155-852xxCR series 1×9 transceiver provides with choice of duplex SC, FC, or ST connectors for the different clients.
Features
• Industry Standard 1×9 package
• Up to 155Mb/s data links
• Duplex SC, ST, or FC connector
• Single +3.3V or +5V Power Supply
• Operating wavelength 850nm
• Up to 2 km over multimode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: 0 to +70°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT155-852xxCR | Form Factor | 1×9 |
| Data Rate | 155 Mb/s | Wavelength | 850 nm |
| Max Distance | 2 km | Fiber Type | Multi-Mode (MMF) |
| Voltage | 3.3V or 5V | Optical Components | VCSEL/PIN |
| Transmitter Power | -10 ~ -3 dBm | Extinction ratio | > 10 dB |
| Receiver Sensitivity | < -30 dBm | Connector | Duplex SC,ST or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | ATM 155 Mbps Links SONET OC-3 SDH STM-1 Fast Ethernet 100 Mb/s Links Fiber media converters |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |

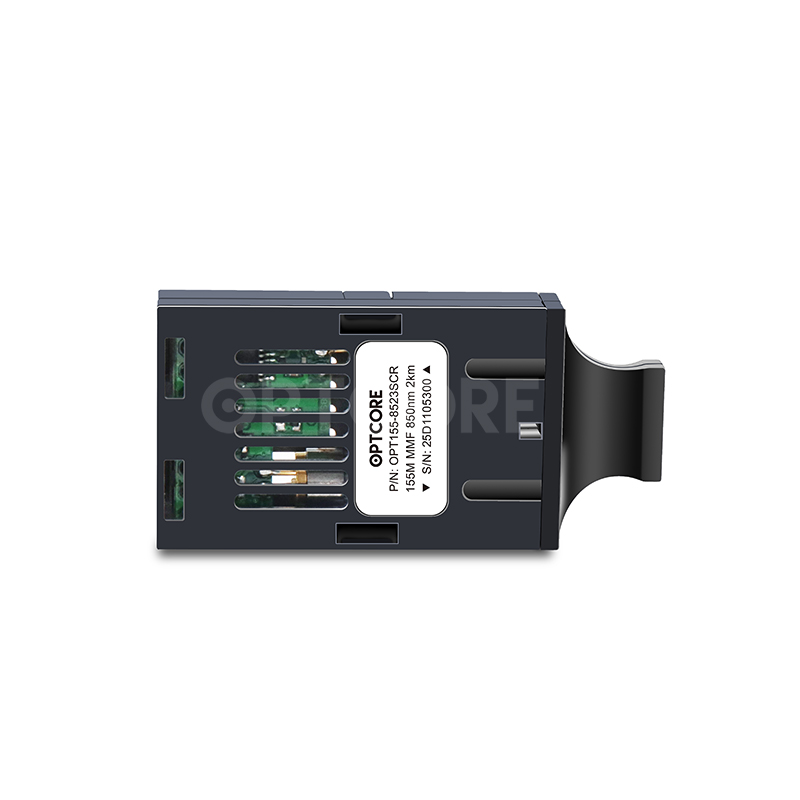

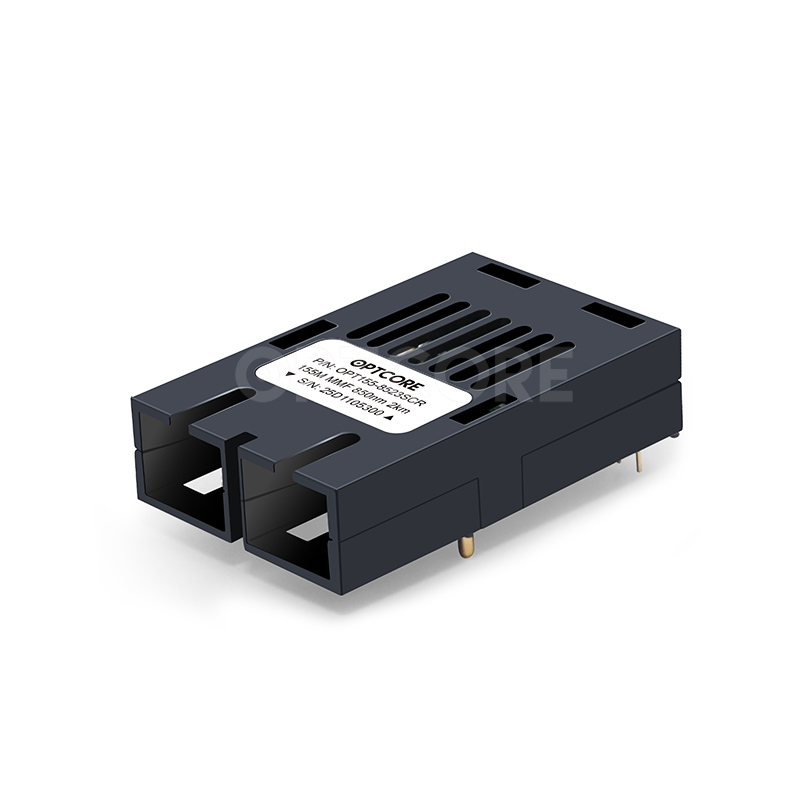

| OPT155-8523SCR | 155Mbps 1×9 Optical Transceiver, Multimode, 850nm, 2km, 3.3V, SC Connector, 0ºC ~ +70ºC |

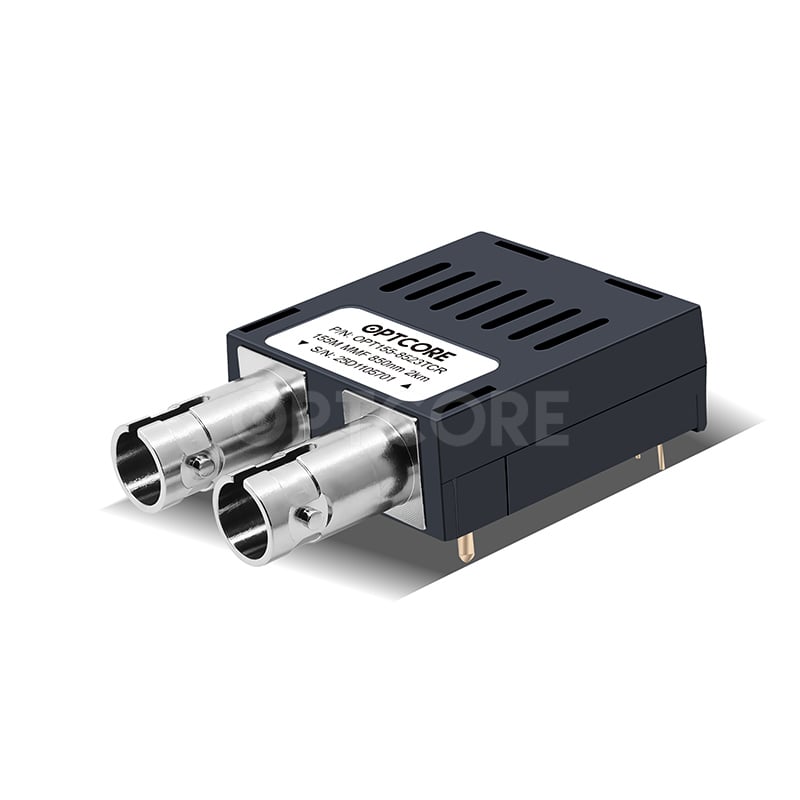

| OPT155-8523TCR | 155Mbps 1×9 Optical Transceiver, Multimode, 850nm, 2km, 3.3V, ST Connector, 0ºC ~ +70ºC |

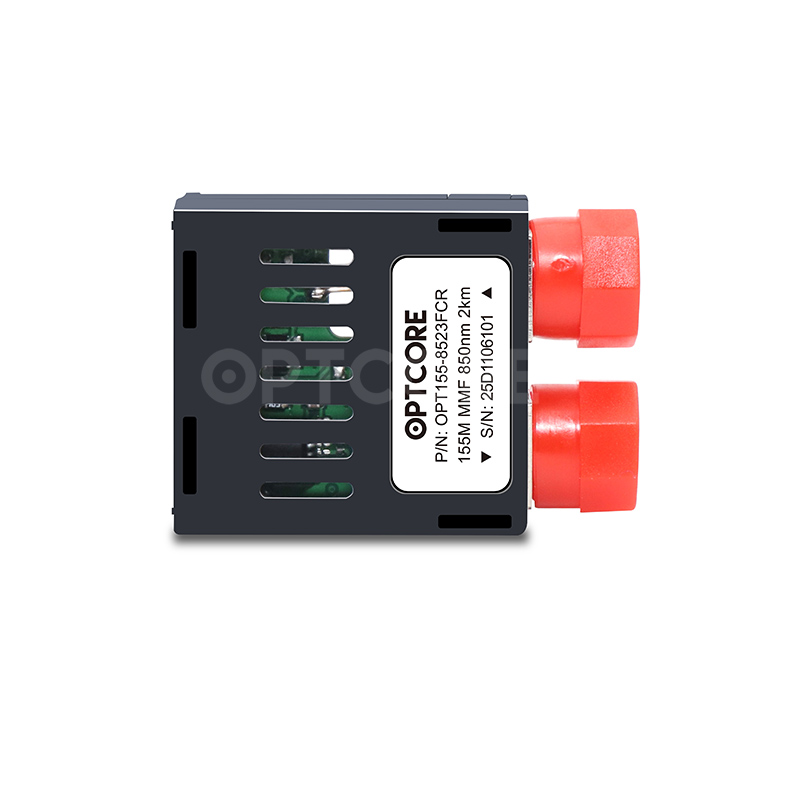

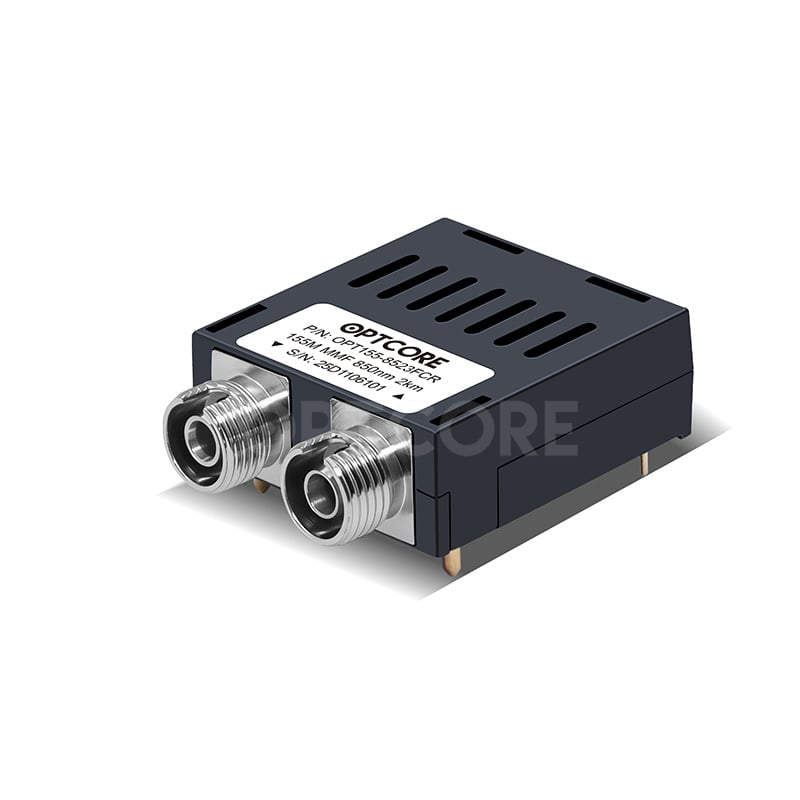

| OPT155-8523FCR | 155Mbps 1×9 Optical Transceiver, Multimode, 850nm, 2km, 3.3V, FC Connector, 0ºC ~ +70ºC |
| OPT155-8525SCR | 155Mbps 1×9 Optical Transceiver, Multimode, 850nm, 2km, 5V, SC Connector, 0ºC ~ +70ºC |
| OPT155-8525TCR | 155Mbps 1×9 Optical Transceiver, Multimode, 850nm, 2km, 5V, ST Connector, 0ºC ~ +70ºC |
| OPT155-8525FCR | 155Mbps 1×9 Optical Transceiver, Multimode, 850nm, 2km, 5V, FC Connector, 0ºC ~ +70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
