10Mbps Multimode 1310nm 2km 1×9 TTL Transceiver
Price range: US$ 16.30 through US$ 17.50 (Excl. VAT)
Good quality 10Mbps Ultra-Low Data Rate TTL 1×9 Optical Transceiver for Industrial Ethernet application (MMF, 1310nm, 2km, Duplex SC/FC/ST, 3.3V or 5V), .
10Mbps Multimode 1×9 Transceiver Module (MMF, 1310nm, 2km, SC/FC/ST, 3.3V/5V)
The OPT10-312xxxR family of 1×9 optical transceivers from Optcore provides the network system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 10Mb/s rate. This fiber optic transceivers series are supplied in the industry-standard 1×9 SIP package style with a duplex SC, ST, FC, or Pigtails type connector interface. They are high-performance, cost-effective optical transceiver modules with a TTL data interface that supports a data rate of 10Mbps and a 2km transmission distance over a multi-mode fiber cable (MMF). The OPT10-312xxxR series TTL 1×9 optical transceivers help you convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converter, Industrial Ethernet networks to fiber networks communications such as industrial Ethernet converters and industrial Ethernet switches.
The OPT10-312xxxR family 1X9 TTL multimode optic transceivers provide both commercial temperature grade and industrial temperature grade for hardened environment application. For detailed information, please refer to the ordering information.
Features
• Duplex SC/ST/FC receptacle multi-mode optical interface
• Standard 1×9 SIP package
• Single +3.3V or +5V Power Supply
• Operating wavelength 1310nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate up to 10Mbps
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Compliant with RS485 function
• Operating case temperature: Standard: 0 to +70°C, Extended: -10 to +85°C, Industrial: -40 to +85°C
• Class 1 Laser Product, Compliant with IEC825, FDA21,CFR1040.10 and CFR1040.11
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT10-312xxxR | Form Factor | 1×9 |
| Data Rate | 10 Mb/s | Wavelength | 1310 nm |
| Max Distance | 2 km | Fiber Type | Multi Mode (MMF) |
| Voltage | 3.3V or 5V | Optical Components | FP/PIN |
| Transmitter Power | -10 ~ 0 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -15 dBm | Connector | Duplex SC,ST or FC |
| Environment | Operating: Commercial grade 0°C to 70°C, Industrial grade -40°C to 85°C Storage: -40°C to 85°C |
Weight | 0.02 kg |
| Application | • Industrial Ethernet Applications such as Industrial Ethernet Switches, industrial Ethernet Media Converters, Industrial Fiber Converters • Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter, industrial RS-232 to RS-422 and RS-485 Adapters • RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control,industrial computing |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |

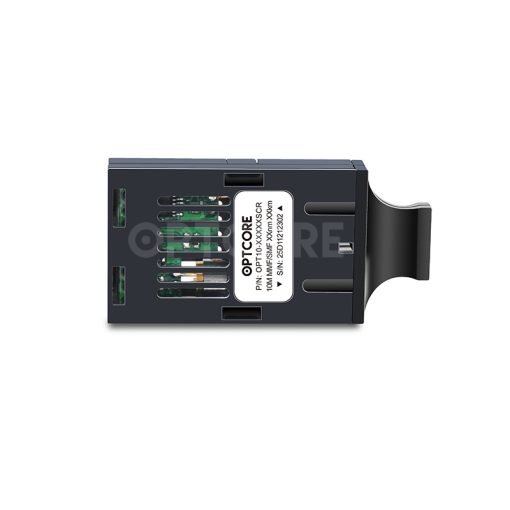

| OPT10-3125SCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V, 0ºC~70ºC, SC |

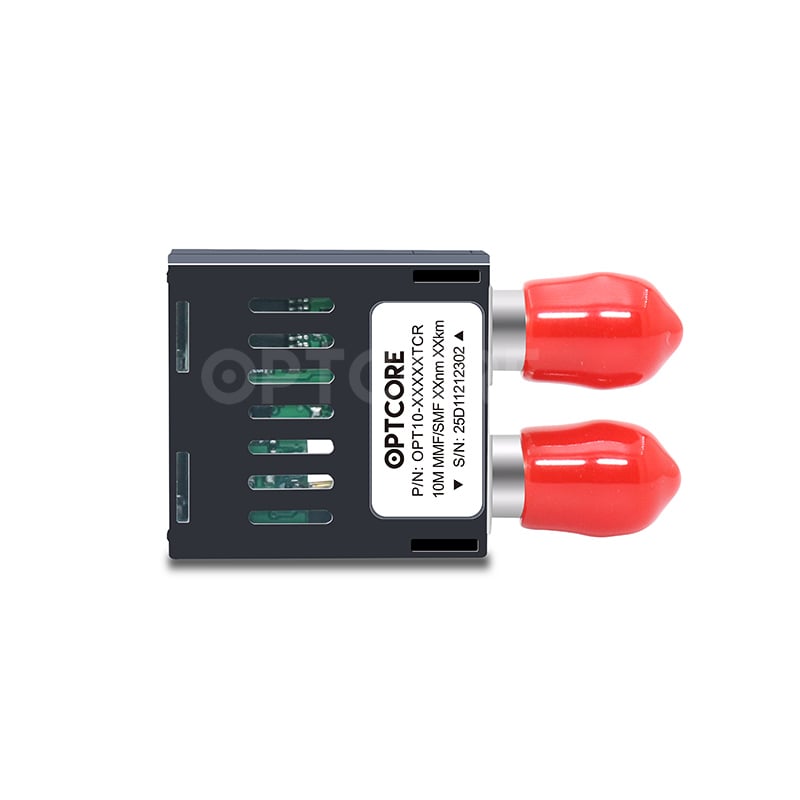

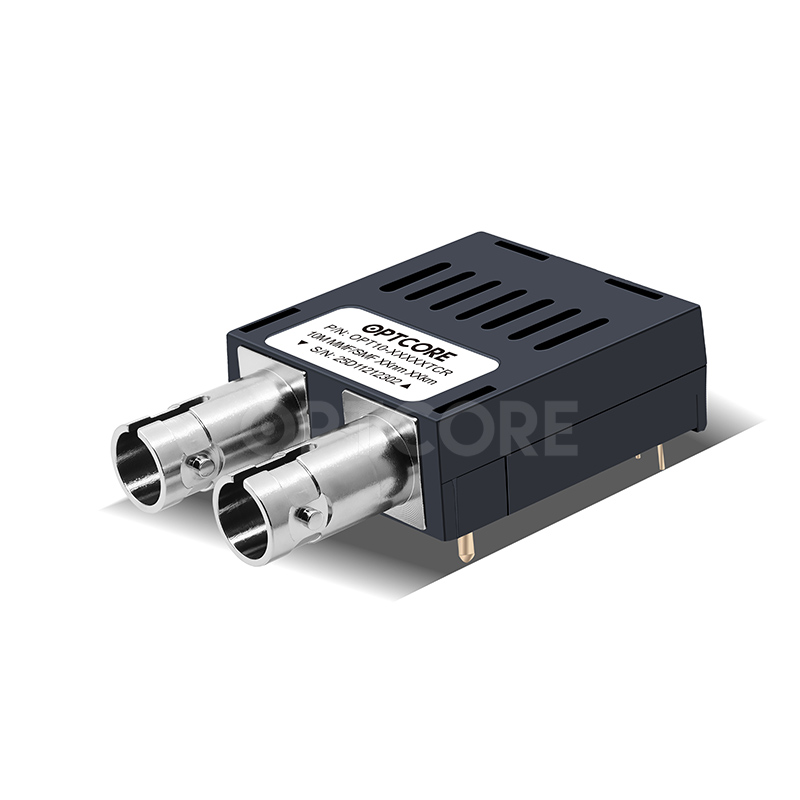

| OPT10-3125TCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V, 0ºC~70ºC, ST |

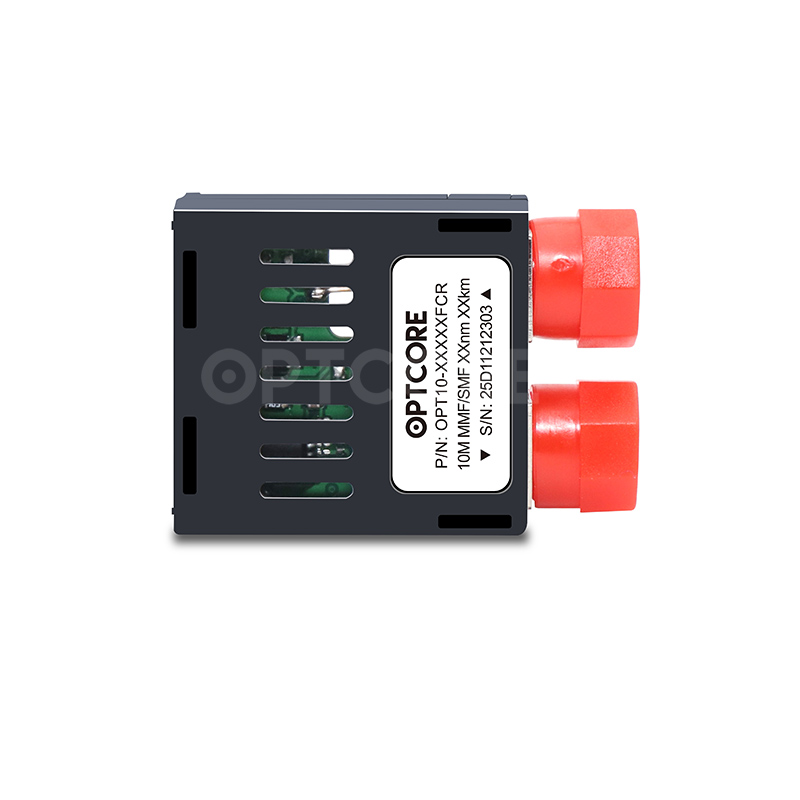

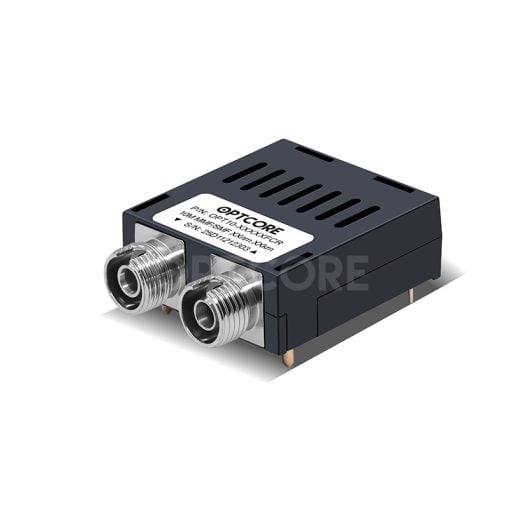

| OPT10-3125FCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V, 0ºC~70ºC, FC |
| OPT10-3125PCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V, 0ºC~70ºC, FC Pigtail |
| OPT10-3123SCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V, 0ºC~70ºC, SC |
| OPT10-3123TCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V, 0ºC~70ºC, ST |
| OPT10-3123FCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V, 0ºC~70ºC, FC |
| OPT10-3123PCR | 1×9 TTL Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V, 0ºC~70ºC, FC Pigtail |
| OPT10-3125STR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V,-40ºC~+85ºC,SC |
| OPT10-3125TTR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V,-40ºC~+85ºC, ST |
| OPT10-3125FTR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V,-40ºC~+85ºC,FC |
| OPT10-3125PTR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 5V,-40ºC~+85ºC,FC Pigtail |
| OPT10-3123STR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V,-40ºC~+85ºC, SC |
| OPT10-3123TTR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V,-40ºC~+85ºC, ST |
| OPT10-3123FTR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V,-40ºC~+85ºC,FC |
| OPT10-3123PTR | 1×9 TTL Industrial Transceiver, Multimode, 1310nm, 10Mbps, 2km, 3.3V,-40ºC~+85ºC,FC Pigtail |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
