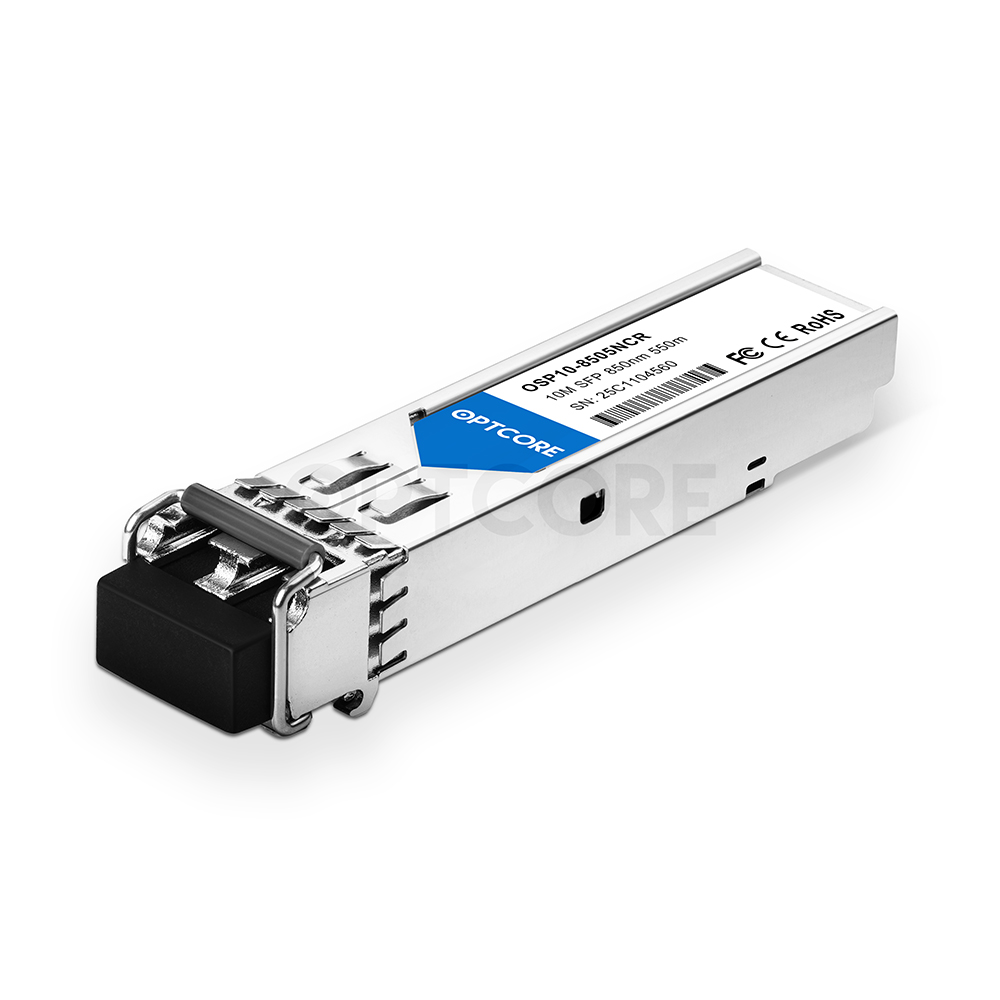

Generic Compatible 0~10Mbps SFP MMF 850nm 550m Transceiver
Price range: US$ 19.00 through US$ 22.00 (Excl. VAT)
Good quality 0~10M SFP Transceiver Module (MMF, 850nm, 550m, LC).
Generic Compatible 0~10Mbps SFP Transceiver (MMF, 850nm, 550m, LC, Commercial / Industrial Temperature)
The 0~10Mbps SFP optical transceivers from Optcore is suitable for use in RS232/RS485 optical-electrical converter for electric power control and industrial control with the bit rate up to 10Mbps. The transceiver use SFP form factor that supports hot-pluggable to avoid the disadvantages of the traditional 10M 1×9 transceiver. The 0~10M SFP optics are provided with commercial temperature grade and industrial temperature grade for different applications.
Features
• Support up to 0~10Mb/s data links
• Compliant with SFP MSA standard
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• Duplex LC connector
• Standard PECL data output and input with signal detect the indication
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP10-8505NxR |
| Form Factor | SFP | Data Rate | 0~10Mb/s |
| Wavelength | 850 nm | Cable Type | Multimode Fiber |
| Max Distance | 550 m | Optical Components | VCSEL/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -14 dBm | Receiver Overload | > 0 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | No |
| Environment | Operating: Commercial 0°C to 70°C, Industrial -40°C to 85°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | • Industrial Ethernet Applications such as Industrial Ethernet Switches, Industrial Ethernet Media Converters, Industrial Fiber Converters • Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter, industrial RS-232 to RS-422 and RS-485 Adapters • RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control, industrial computing |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OSP10-8505NCR | 0~10M SFP Transceiver, Multimode, 850nm, 550m, LC, 0ºC~+70ºC |
| OSP10-8505NTR | 0~10M SFP Industrial Transceiver, Multimode, 850nm, 550m, LC, -40ºC~+85ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
