10Gb/s XFP BiDi 1550nm-TX/1490nm-RX 80km Transceiver

10Gb/s XFP BiDi 1550nm-TX/1490nm-RX 80km Optical Transceiver Module

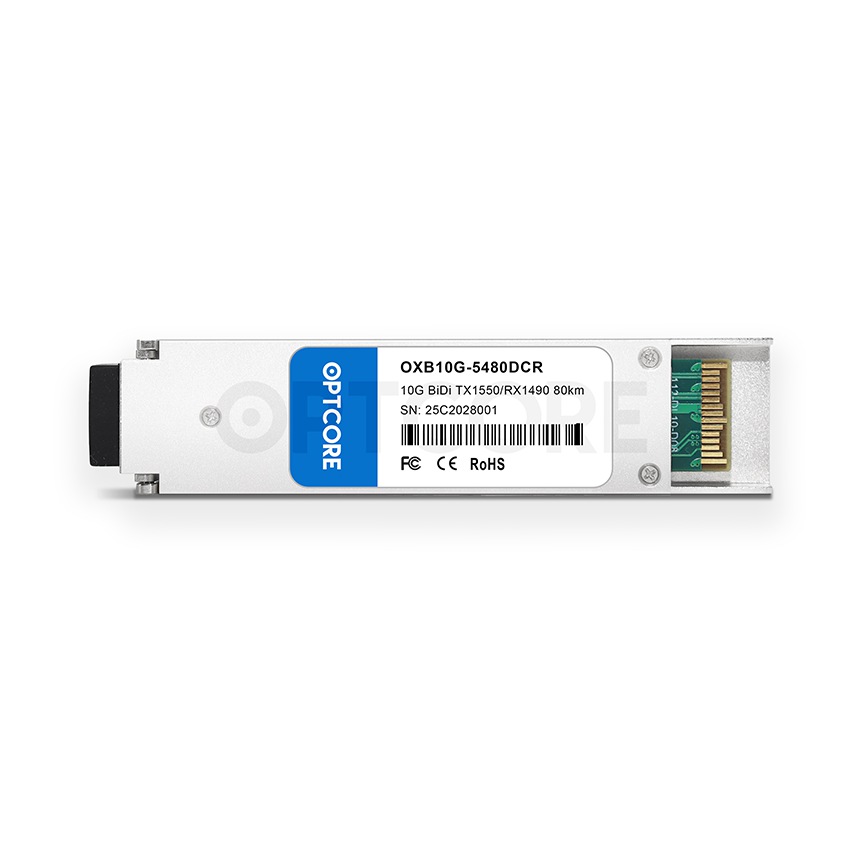

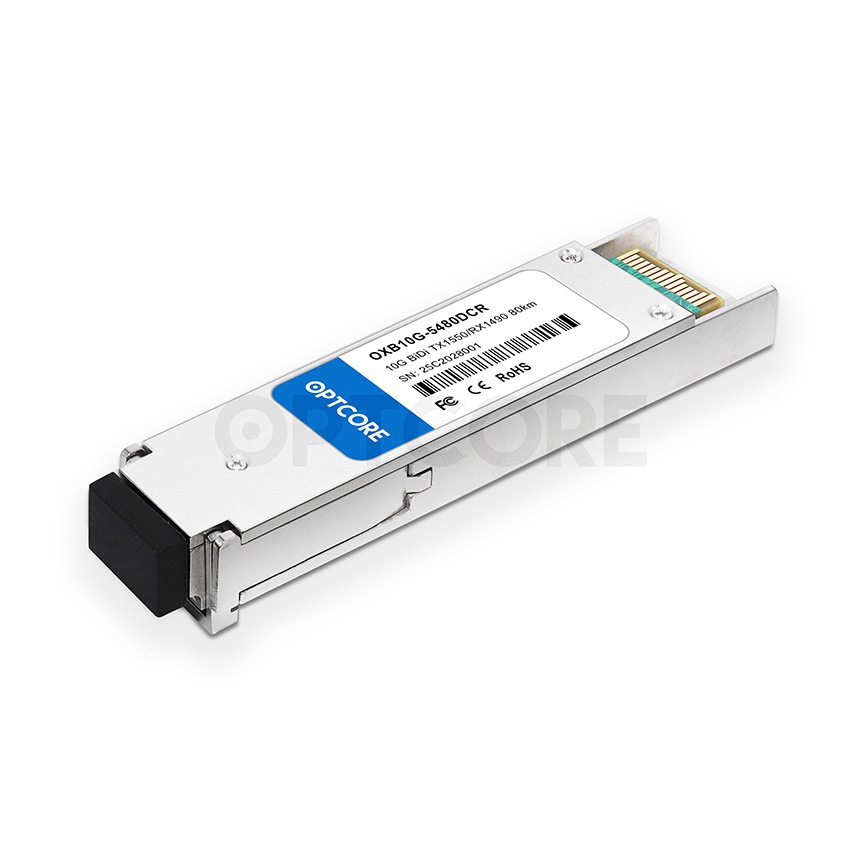

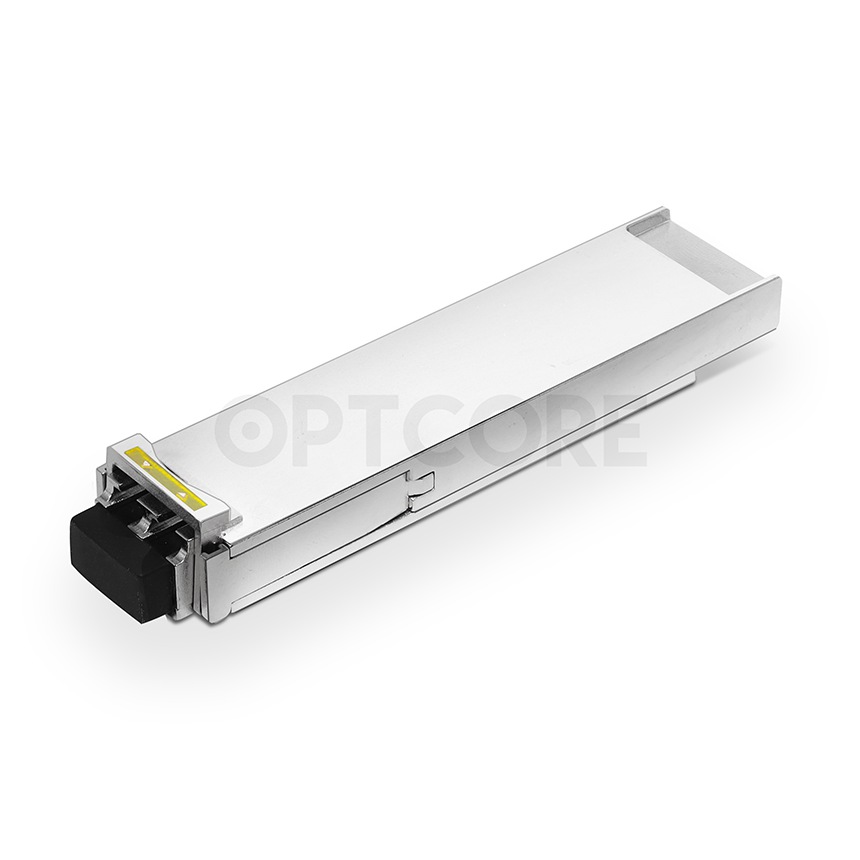

Optcore’s OXB10G-5480DCR is hot pluggable XFP Bi-Directional transceiver module, which is designed for 10Gb/s duplex optical data communications application. The XFP BiDi module features a highly reliable 1550nm EML transmitter and 1490nm APD receiver into single LC optical connector, which provides 80km link distance over single-strand single mode fiber.

This XFP BiDi transceiver module also provides a digital diagnostic monitoring interface(DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with XFP MSA Rev 4.5 specifications, 10 Gigabit Ethernet specifications (10GBASE-ZR/ZW per IEEE 802.3ae ), and 10G Fibre Channel. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features

• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae
• 1550nm EML transmitter, 1490nm APD receiver
• Distance up to 80km on single mode fiber
• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free

Specification

Download

Spec / Datasheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
