10Gb/s 1550nm 100km XFP EZR Transceiver

10Gb/s SMF 1550nm 100km XFP EZR Optical Transceiver Module

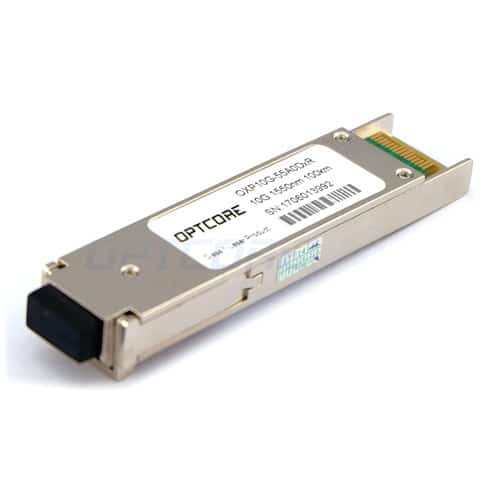

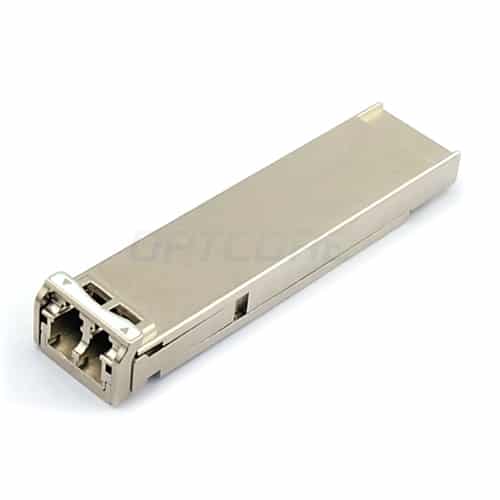

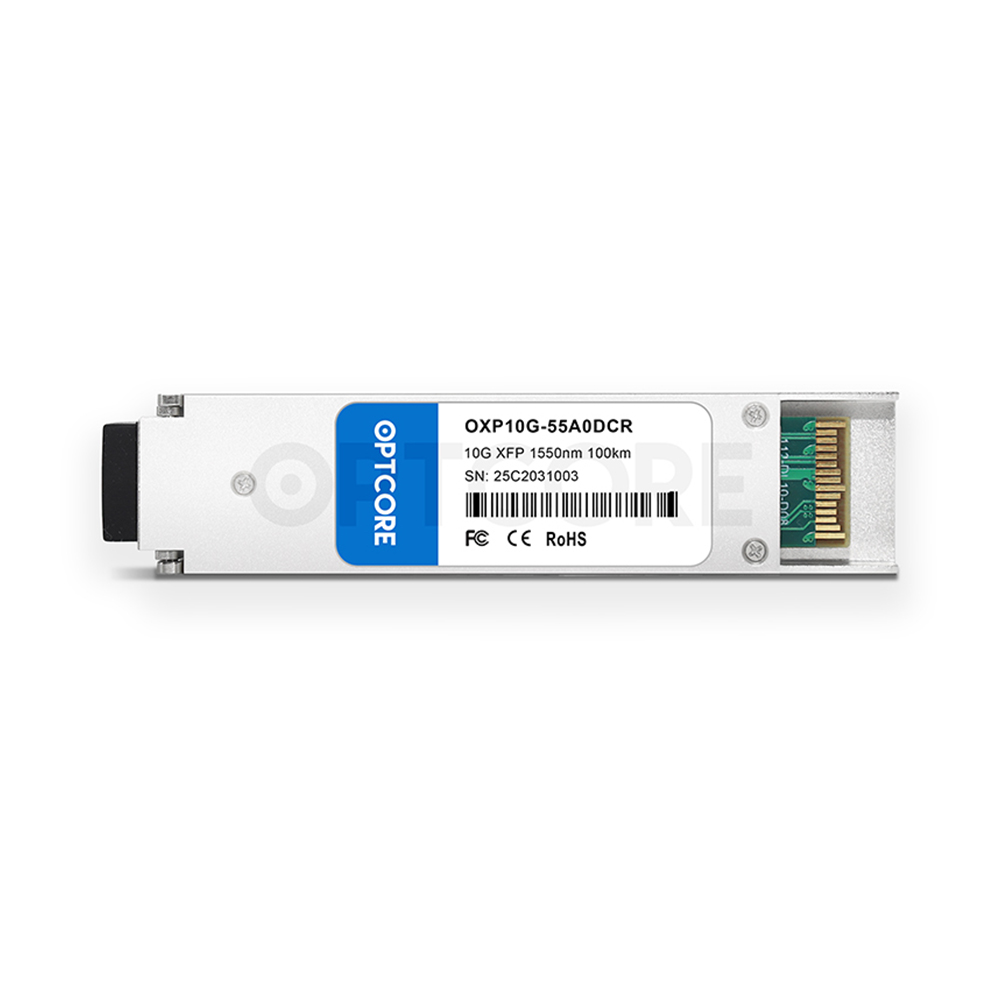

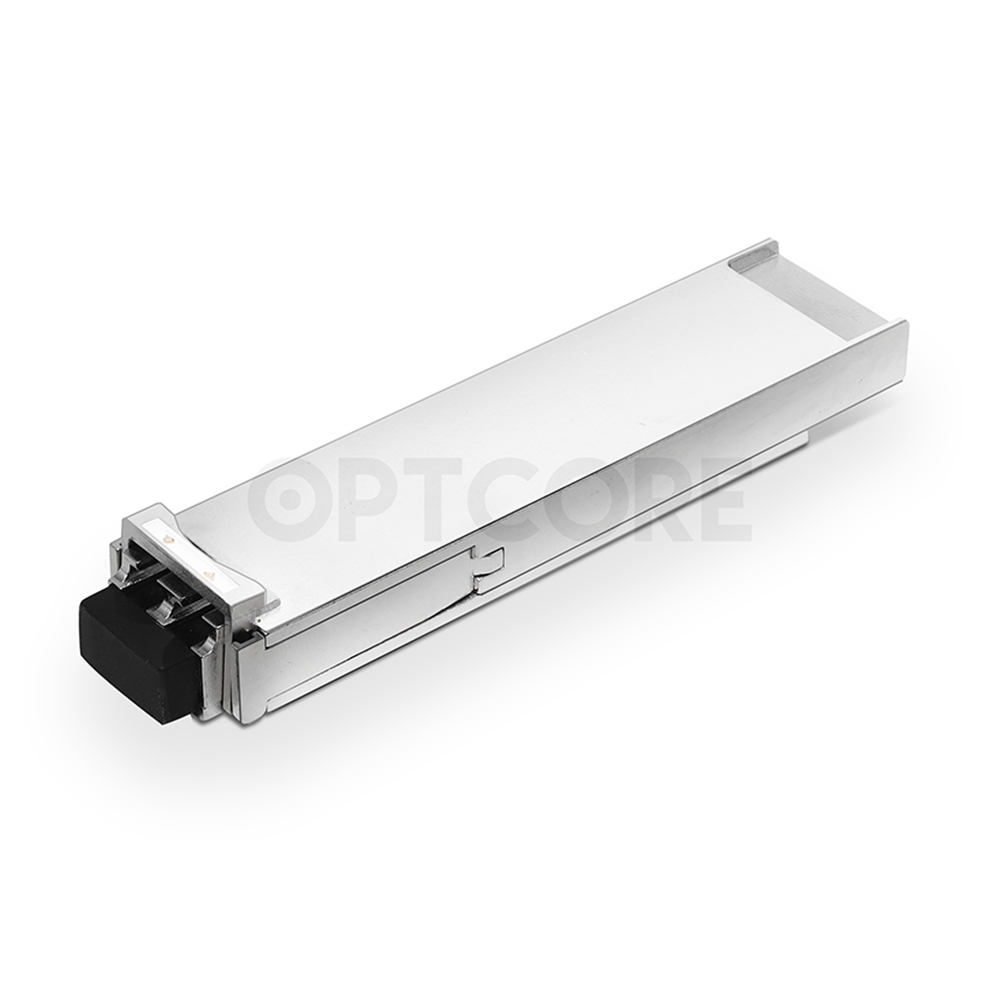

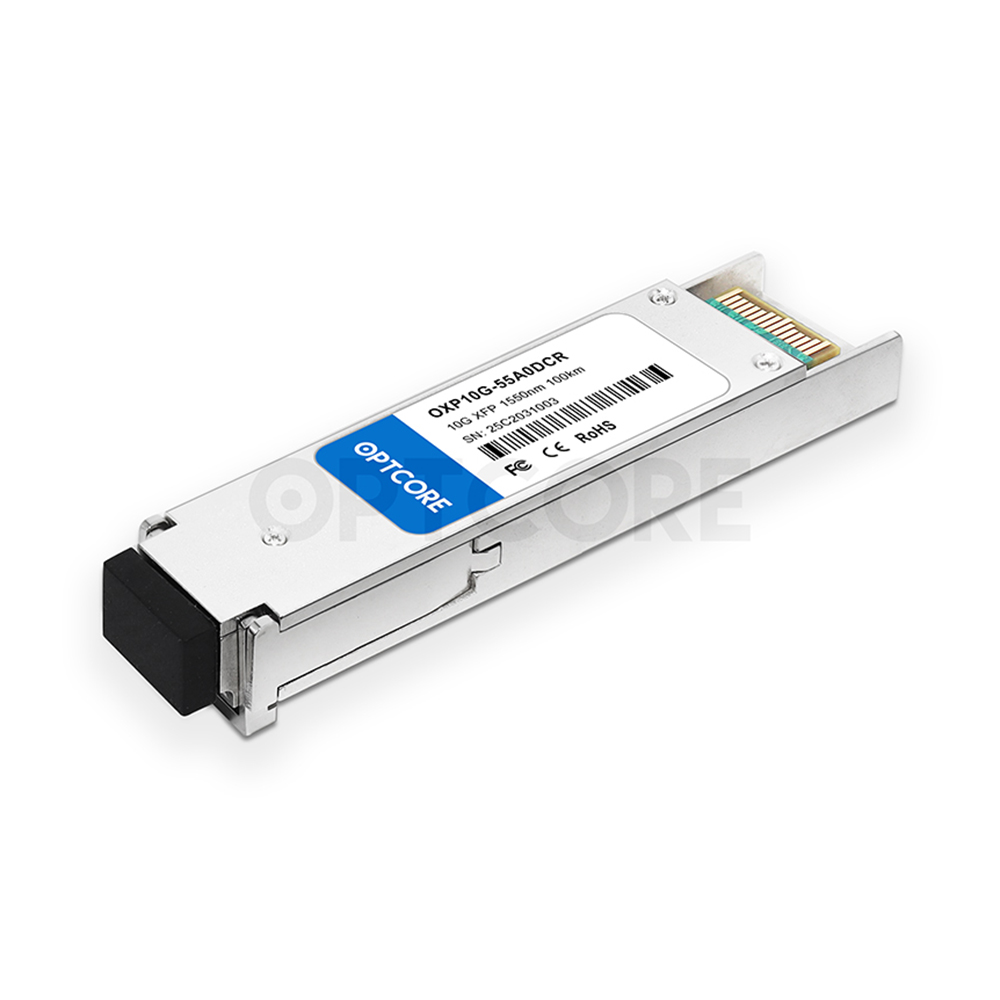

Optcore’s OXP10G-55A0DCR is a high performance and cost-effective XFP EZR transceiver module for 10 Gigabit Ethernet links up to 100km over the single fiber. This XFP ZR transceiver module features a highly reliable cooled 1550nm EML transmitter and APD receiver into duplex LC optical connector. The transceiver module complies with XFP MSA specifications, 10 Gigabit Ethernet specifications (10GBASE-ZR/ZW per IEEE 802.3ae ), and 10G Fibre Channel. It’s suitable for use with 10G Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment. The OXP10G-55A0DCR offers an efficient way to meet the demanding needs of the next-generation data center networking environment.

The XFP EZR transceiver module has been integrated with a digital diagnostic monitoring interface (DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All XFP optical transceivers are Class 1 laser products comply with FDA/CDRH and IEC-60825 standards.

Features

• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ZR/ZW
• Cooled 1550nm EML laser and APD receiver
• Distance up to 100km on the single fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free

Specification

Download

OXP10G-55A0DCR   10Gb/s SMF 1550nm 100km XFP EZR Optical Transceiver Data Sheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
