10Gb/s 1310nm 40km XFP ER Transceiver

10Gb/s SMF 1310nm 40km XFP ER Optical Transceiver Module

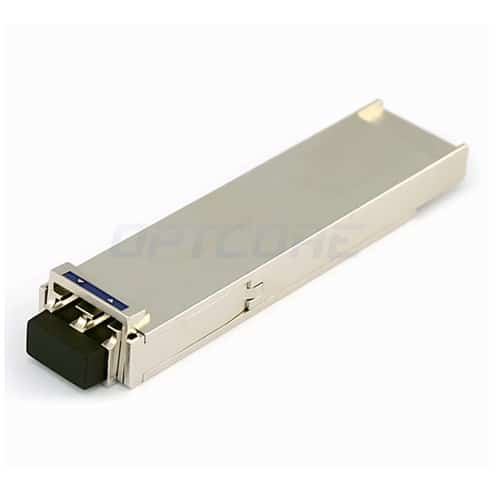

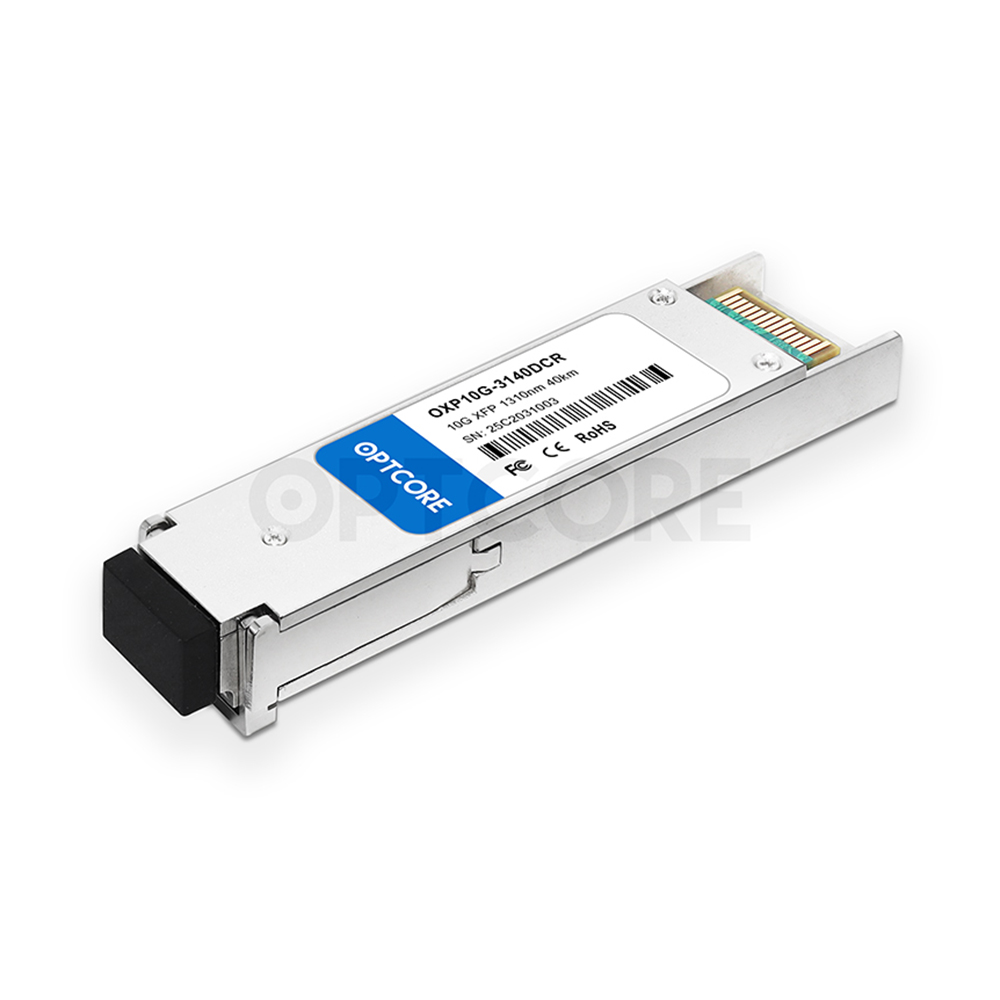

Optcore’s OXP10G-3140DCR is a high performance and cost-effective XFP ER transceiver module for 10 Gigabit Ethernet links up to 40km over a single fiber. This XFP ER transceiver module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into duplex LC optical connector. The transceiver module complies with XFP MSA specifications, 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. It’s suitable for use with 10G Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment. The OXP10G-3140DCR offers an efficient way to meet the demanding needs of the next-generation data center networking environment.

The XFP ER transceiver module has been integrated with a digital diagnostic monitoring interface (DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All XFP optical transceivers are Class 1 laser products comply with FDA/CDRH and IEC-60825 standards.

Features

• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ER/EW
• 1310nm DFB laser and PIN receiver
• Distance up to 40km on the single fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free

Specification

Download

OXP10G-3140DCR   10Gb/s SMF 1310nm 40km XFP ER Optical Transceiver Data Sheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
