10Gb/s DWDM XFP ER 40km Transceiver
US$ 330.00 (Excl. VAT)
Good quality 10Gb/s DWDM XFP ER Transceiver Module (DWDM 100Ghz, 40km, LC, DDM).
10Gb/s DWDM 100GHz XFP ER 40km Optical Transceiver Module

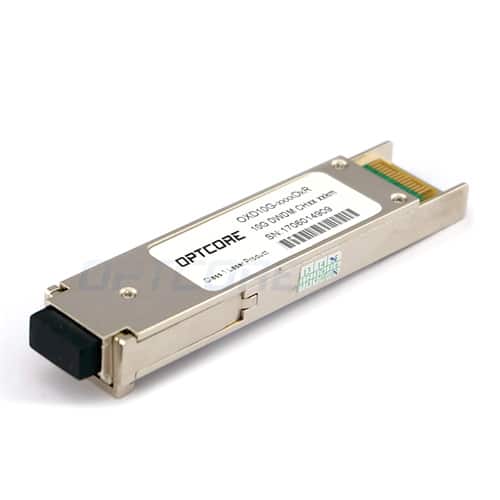

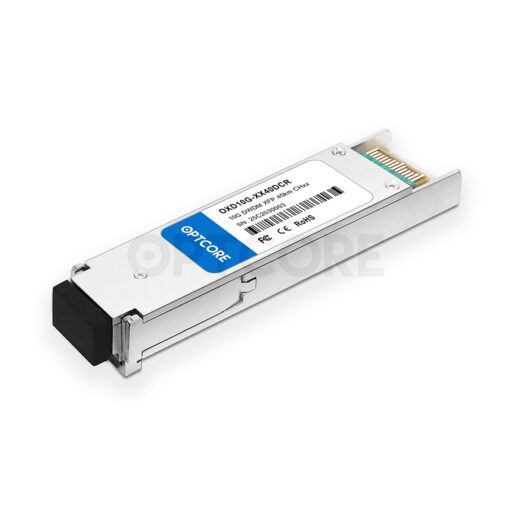

Optcore’s OXD10G-xx40DCR is a high performance and cost-effective 10Gb/s DWDM (Dense Wavelength-Division Multiplexing) XFP ER optical transceiver module, which provides an extended high capacity, high bandwidth communication solutions for multiplexed optical networks. This DWDM XFP ER transceiver module is designed for 10 Gigabit Ethernet links up to 40km over single mode fiber. It features a high-performance DWDM EML transmitter and PIN diode into a duplex LC optical connector. This DWDM XFP module operates on a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.
The DWDM XFP transceiver module complies with XFP MSA specifications, 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae and 10G Fibre Channel. It’s suitable for use with 10G Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment in DWDM networks usage. Additionally, the DWDM XFP module has been integrated with a digital diagnostic monitoring interface (DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The DWDM XFP ER transceiver module need use with DWDM Multiplexer/Demultiplexer (DWDM Mux/Demux) that is separately sold by Optcore.
Features
• Hot-pluggable XFP footprint
• Data rate from 9.95Gbps to 11.1Gbps
• Compliant with XFP MSA Rev 4.5
• Compliant to 802.3ae 10GBASE-ER
• Temperature-stabilized DWDM-rated EML transmitter and PIN receiver
• Up to 40km on 9/125µm SMF
• 100GHz ITU Grid, C-Band wavelength
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Reduce the cost of leasing or laying fiber
• ROHS compliant and Lead-Free
• Use with DWDM MUX/DEMUX, combined DWDM optics solution
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OXD10G-xx40DCR |
| Form Factor | DWDM XFP | Data Rate | 10Gb/s |
| Wavelength | 1528.77~1563.86nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DWDM EML/PIN |
| Transmitter Power | -1 ~ 4 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -16 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-ER/10GBASE-EW DWDM Ethernet 10G DWDM Fibre Channel 10G Data Center Switches and Routers 10G Network interface cards and Fiber Media Converters SONET OC-192&SDH STM-64 Other DWDM optical networks |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part Number | Description | ITU Channel |
Frequency(THz) |
Wavelength(nm) |
| OXD10G-1740DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1563.86nm, 40km, LC | 17 | 191.7 | 1563.86 |
| OXD10G-1840DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1563.05nm, 40km, LC | 18 | 191.8 | 1563.05 |
| OXD10G-1940DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1562.23nm, 40km, LC | 19 | 191.9 | 1562.23 |
| OXD10G-2040DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1561.42nm, 40km, LC | 20 | 192.0 | 1561.42 |
| OXD10G-2140DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1560.61nm, 40km, LC | 21 | 192.1 | 1560.61 |
| OXD10G-2240DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1559.79nm, 40km, LC | 22 | 192.2 | 1559.79 |
| OXD10G-2340DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1558.98nm, 40km, LC | 23 | 192.3 | 1558.98 |
| OXD10G-2440DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1558.17nm, 40km, LC | 24 | 192.4 | 1558.17 |
| OXD10G-2540DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1557.36nm, 40km, LC | 25 | 192.5 | 1557.36 |
| OXD10G-2640DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1556.55nm, 40km, LC | 26 | 192.6 | 1556.55 |
| OXD10G-2740DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1555.75nm, 40km, LC | 27 | 192.7 | 1555.75 |
| OXD10G-2840DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1554.94nm, 40km, LC | 28 | 192.8 | 1554.94 |
| OXD10G-2940DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1554.13nm, 40km, LC | 29 | 192.9 | 1554.13 |
| OXD10G-3040DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1553.33nm, 40km, LC | 30 | 193.0 | 1553.33 |
| OXD10G-3140DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1552.52nm, 40km, LC | 31 | 193.1 | 1552.52 |
| OXD10G-3240DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1551.72nm, 40km, LC | 32 | 193.2 | 1551.72 |
| OXD10G-3340DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1550.92nm, 40km, LC | 33 | 193.3 | 1550.92 |
| OXD10G-3440DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1550.12nm, 40km, LC | 34 | 193.4 | 1550.12 |
| OXD10G-3540DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1549.32nm, 40km, LC | 35 | 193.5 | 1549.32 |
| OXD10G-3640DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1548.51nm, 40km, LC | 36 | 193.6 | 1548.51 |
| OXD10G-3740DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1547.72nm, 40km, LC | 37 | 193.7 | 1547.72 |
| OXD10G-3840DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1546.92nm, 40km, LC | 38 | 193.8 | 1546.92 |
| OXD10G-3940DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1546.12nm, 40km, LC | 39 | 193.9 | 1546.12 |
| OXD10G-4040DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1545.32nm, 40km, LC | 40 | 194.0 | 1545.32 |
| OXD10G-4140DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1544.53nm, 40km, LC | 41 | 194.1 | 1544.53 |
| OXD10G-4240DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1543.73nm, 40km, LC | 42 | 194.2 | 1543.73 |
| OXD10G-4340DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1542.94nm, 40km, LC | 43 | 194.3 | 1542.94 |
| OXD10G-4440DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1542.14nm, 40km, LC | 44 | 194.4 | 1542.14 |
| OXD10G-4540DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1541.35nm, 40km, LC | 45 | 194.5 | 1541.35 |
| OXD10G-4640DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1540.56nm, 40km, LC | 46 | 194.6 | 1540.56 |
| OXD10G-4740DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1539.77nm, 40km, LC | 47 | 194.7 | 1539.77 |
| OXD10G-4840DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1538.98nm, 40km, LC | 48 | 194.8 | 1538.98 |
| OXD10G-4940DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1538.19nm, 40km, LC | 49 | 194.9 | 1538.19 |
| OXD10G-5040DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1537.4nm, 40km, LC | 50 | 195.0 | 1537.4 |
| OXD10G-5140DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1536.61nm, 40km, LC | 51 | 195.1 | 1536.61 |
| OXD10G-5240DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1535.82nm, 40km, LC | 52 | 195.2 | 1535.82 |
| OXD10G-5340DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1535.04nm, 40km, LC | 53 | 195.3 | 1535.04 |
| OXD10G-5440DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1534.25nm, 40km, LC | 54 | 195.4 | 1534.25 |
| OXD10G-5540DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1533.47nm, 40km, LC | 55 | 195.5 | 1533.47 |
| OXD10G-5640DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1532.68nm, 40km, LC | 56 | 195.6 | 1532.68 |
| OXD10G-5740DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1531.9nm, 40km, LC | 57 | 195.7 | 1531.9 |
| OXD10G-5840DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1531.12nm, 40km, LC | 58 | 195.8 | 1531.12 |
| OXD10G-5940DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1530.33nm, 40km, LC | 59 | 195.9 | 1530.33 |
| OXD10G-6040DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1529.55nm, 40km, LC | 60 | 196.0 | 1529.55 |
| OXD10G-6140DCR | 10Gb/s DWDM XFP ER Optical Transceiver, SMF, 1528.77nm, 40km, LC | 61 | 196.1 | 1528.77 |
