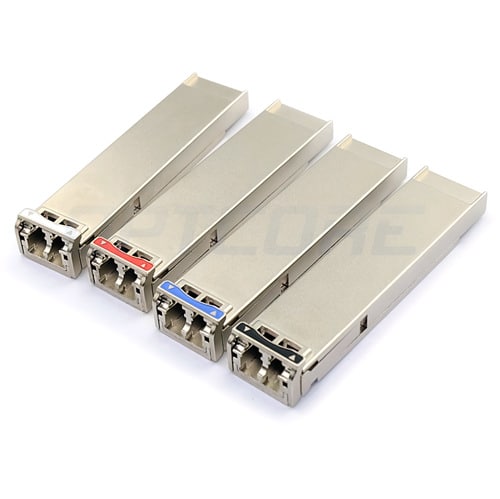

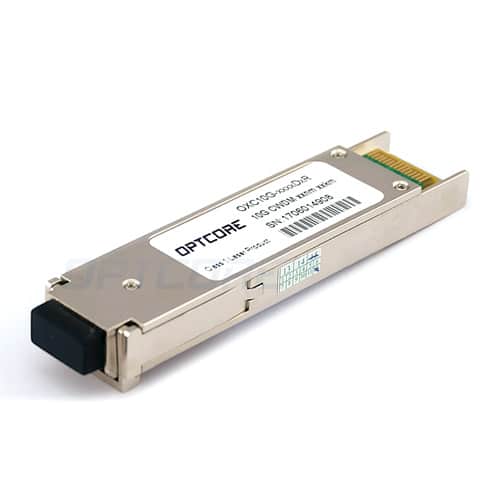

10Gb/s CWDM XFP LR 1270~1430nm 20km Transceiver
US$ 240.00 (Excl. VAT)
Good quality 10Gb/s CWDM XFP LR Optical Transceiver (SMF, 1270~1430nm, 10km, LC, DDM).
10Gb/s CWDM XFP LR 1270~1430nm 20km Optical Transceiver Module

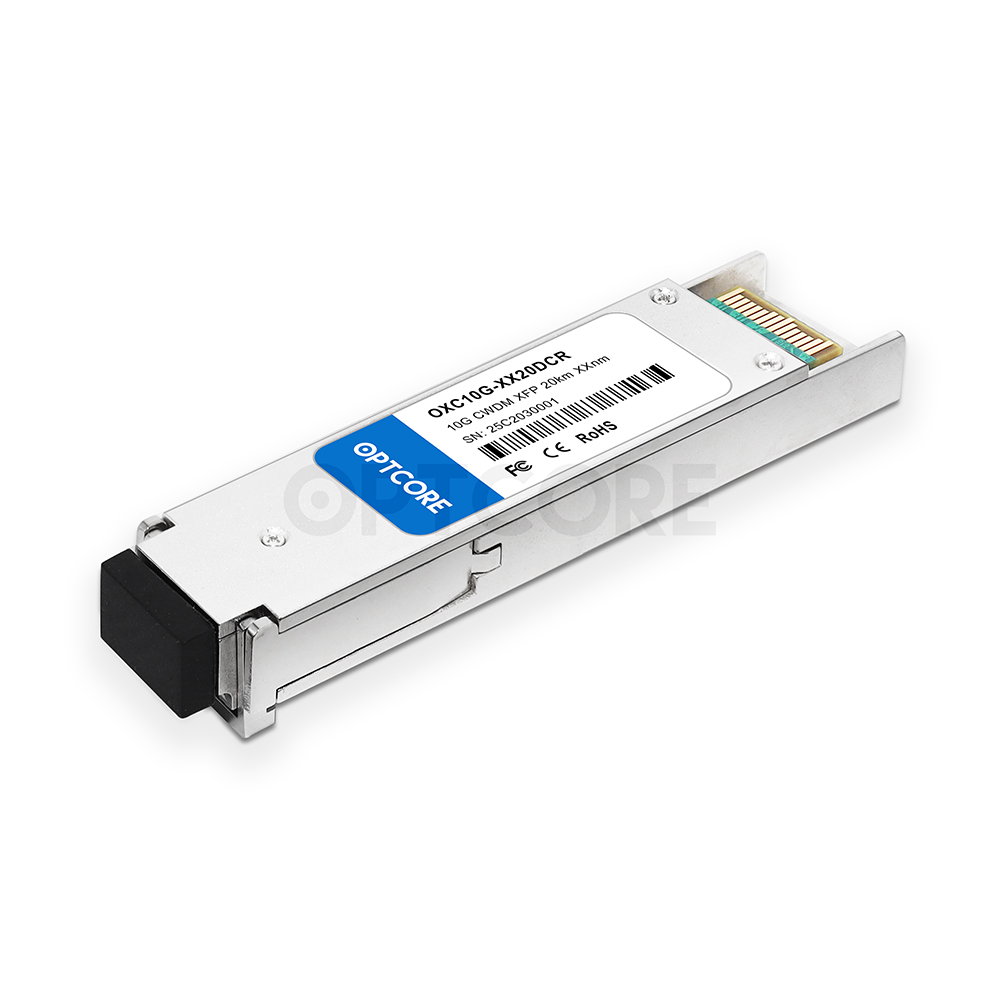

Optcore’s OXC10G-xx20DCR is a high performance and cost-effective 10Gb/s CWDM (Coarse Wavelength-Division Multiplexing) XFP LR optical transceiver, which provides a high capacity, high bandwidth communication solutions for multiplexed optical networks. This CWDM XFP transceiver module is designed for 10 Gigabit Ethernet links up to 20km over single mode fiber. It features a highly reliable CWDM DFB transmitter and PIN photo-detector into duplex LC optical connector. There are 9 center wavelengths available from 1270nm to 1430nm with each step 20nm.
The CWDM XFP transceiver module complies with XFP MSA specifications, 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel (1200-SM-LL-L). It’s suitable for use with 10G Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment. Additionally, the CWDM XFP optical transceiver has been integrated with a digital diagnostic monitoring interface (DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The CWDM XFP LR transceiver need uses with CWDM Multiplexer/Demultiplexer (CWDM Mux/Demux) that is separately sold by Optcore.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• 9-Wavelength Un-cooled CWDM DFB transmitter from 1270nm to 1430nm, with step 20nm
• 11.4dB Link budget, minimum
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OXC10G-xx20DCR |
| Form Factor | CWDM XFP | Data Rate | 10 Gb/s |
| Wavelength | 1270~1430 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -3 ~ 3 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-LR/10GBASE-LW CWDM Ethernet 10G Fiber Channel 10G Data Center Switches and Routers 10G Network interface cards and Fiber Media Converters |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Optcore Part Number | Description |
| OXC10G-2720DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1270nm, 20km, LC, DDM |
| OXC10G-2920DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1290nm, 20km, LC, DDM |
| OXC10G-3120DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1310nm, 20km, LC, DDM |
| OXC10G-3320DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1330nm, 20km, LC, DDM |
| OXC10G-3520DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1350nm, 20km, LC, DDM |
| OXC10G-3720DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1370nm, 20km, LC, DDM |
| OXC10G-3920DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1390nm, 20km, LC, DDM |
| OXC10G-4120DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1410nm, 20km, LC, DDM |
| OXC10G-4320DCR | 10Gb/s CWDM XFP LR Optical Transceiver, SMF, 1430nm, 20km, LC, DDM |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
