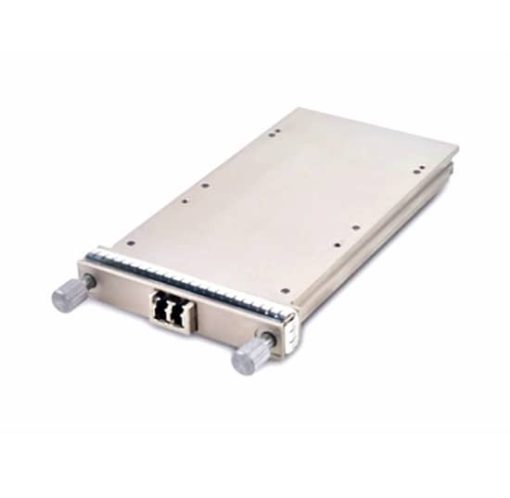

Generic Compatible 100GBase-LR4 CFP 1310nm 10km Transceiver
US$ 1,950.00 (Excl. VAT)
Good quality 100GBase-LR4 CFP Transceiver (SMF, CWDM 1295~1310nm, 10km, LC, DOM).
Optcore Replacement for Generic Compatible 100GBase-LR4 CFP Optical Transceiver (SMF, CWDM 1295~1310nm, 10km, LC, DOM)
Optcore’s 100GEBASE-LR4 CFP Optical transceiver is designed for 4x25G OTN client interfaces and 100G Ethernet links over single mode fiber. It conforms to CFP MSA, IEEE 802.3ba 100GBASE-LR4, and OTU4 4I1-9D1F, Provides digital diagnostics through the MDIO interface. It converts the 4 input channel into a 4-channel LAN WDM optical signal, then it is multiplexed as a single-channel to realize 100Gb/s optical transmission. At the receiver side, the module converts the 100Gb/s optical input into a 4-channel LAN WDM optical signal and transforms it into a 4-channel electrical data output channel. The 100GEBASE-LR4 CFP module is a hot-pluggable multi-rate optical transceiver, with a data rate of up to 25.8Gbps per channel. It’s suitable for 10km links telecom and datacom applications.
Features
• Operating optical data rate up to 112Gbps
• Transmission distance up to 10km
• CFP MSA compliant
• Compliant to 100GbE IEEE 802.3ba specification for 100GBASE-LR4
• OTU4 compatible
• 1310 nm window cooled EA-DFB LD and PIN ROSA
• Built-in digital diagnostic function
• 10 parallel electrical serial interface and AC coupling of CML signals
• Hot-pluggable electrical interface
• Low power dissipation<9W
• Operating case: 0°C to +70°C
• ROHS 6 compliant and lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | CFP-100G-LR4-OP |
| Form Factor | 100GBase-LR4 CFP | Data Rate | 100 Gb/s |
| Wavelength | 1295~1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -4.3 ~ 4.5 dBm | Extinction ratio | > 4 dB |
| Receiver Sensitivity | < -10.6 dBm | Receiver Overload | > 4.5 dBm |
| Connector | LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.4 kg |
| Application | 100GBASE-LR4 100G Ethernet High-speed core router connections&Datacom/Telecom switch Data aggregation and backplane applications Proprietary protocol and density application |
Compliance | Compliant to IEEE 802.3ba Compliant to SFF-8436 RoHS Compliant |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.5 kg |
|---|
