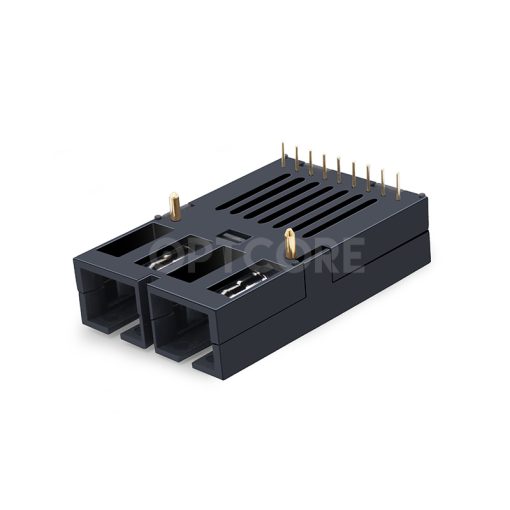

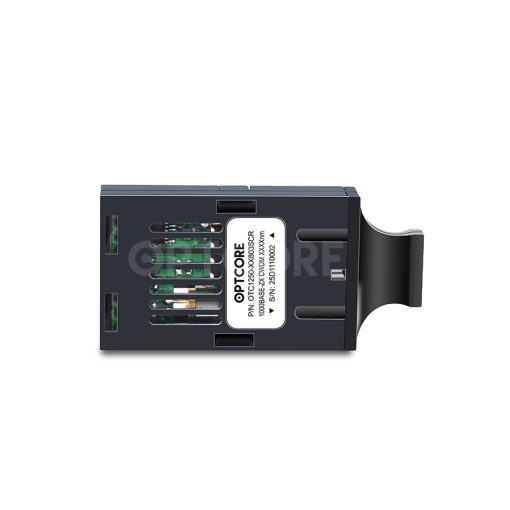

1.25Gb/s 1270~1610nm 80km CWDM 1×9 Transceiver
US$ 59.00 (Excl. VAT)
Good quality 1.25Gbps CWDM 1×9 Optical Transceiver (SMF, 1270~1610nm, 80km, SC/FC/ST, 3.3V or 5V).
1.25G CWDM 1×9 Fiber Optical Transceiver (SMF, CWDM 1270~1610nm, 80km, SC/ST/FC, 3.3V/5V)
The OTC1250-xx80xxCR series are high-performance and cost-effective CWDM 1×9 optical transceivers supporting data rates up to 1.25Gb/s. They are designed for 1000BASE-ZX Gigabit Ethernet and 1G Fiber Channel CWDM application, which provides a high capacity, high bandwidth communication solutions for multiplexed optical networks. This series CWDM 1×9 transceiver module provides an 80km transmission distance over single mode fiber. There are 18 center wavelengths available from 1270nm to 1610nm, with each step 20nm.
Each 1×9 transceiver optics consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable CWDM DFB Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates an efficient InGaAs PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.
The OTC1250-xx80xxCR series provide with choice of duplex SC, FC, or ST connector for different clients. They need uses with CWDM Multiplexer/Demultiplexer (CWDM Mux/Demux) that Optcore separately sells.
Features
• Industry Standard 1×9 package
• Up to 1.25Gbps data links
• Duplex SC, ST, or FC connector
• Single +3.3V or +5V Power Supply
• 18-Wavelength CWDM DFB transmitter from 1270nm to 1610nm, with step 20nm
• Up to 80 km over single mode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: 0 to +70°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OTC1250-xx80xxCR | Form Factor | CWDM 1×9 |
| Data Rate | 1.25 Gb/s | Wavelength | 1270~1610 nm |
| Max Distance | 80 km | Fiber Type | Single Mode (SMF) |
| Voltage | 3.3V or 5V | Optical Components | DFB/PIN |
| Transmitter Power | -2 ~ 3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -26 dBm | Connector | Duplex SC, ST, or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Optcore Part Number | Description |
| OTC1250-2780xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1270nm, 80km |
| OTC1250-2980xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1290nm, 80km |
| OTC1250-3180xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1310nm, 80km |
| OTC1250-3380xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1330nm, 80km |
| OTC1250-3580xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1350nm, 80km |
| OTC1250-3780xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1370nm, 80km |
| OTC1250-3980xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1390nm, 80km |
| OTC1250-4180xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1410nm, 80km |
| OTC1250-4380xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1430nm, 80km |
| OTC1250-4580xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1450nm, 80km |
| OTC1250-4780xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1470nm, 80km |
| OTC1250-4980xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1490nm, 80km |
| OTC1250-5180xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1510nm, 80km |
| OTC1250-5580xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1530nm, 80km |
| OTC1250-5380xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1550nm, 80km |
| OTC1250-5780xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1570nm, 80km |
| OTC1250-5980xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1590nm, 80km |
| OTC1250-6180xxCR | 1.25Gbps CWDM 1×9 Transceiver, SMF, 1610nm, 80km |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
