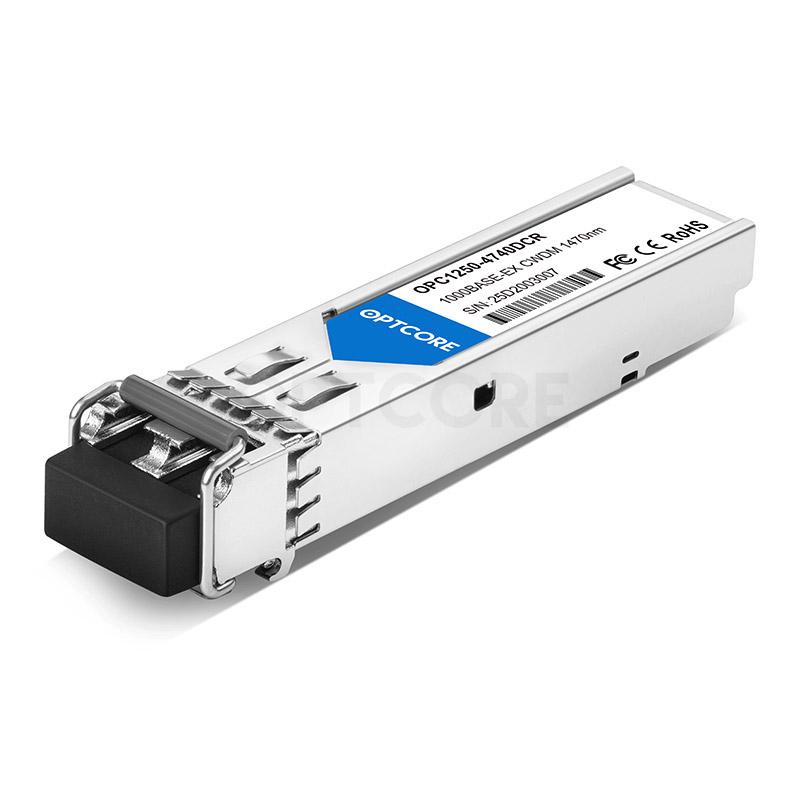

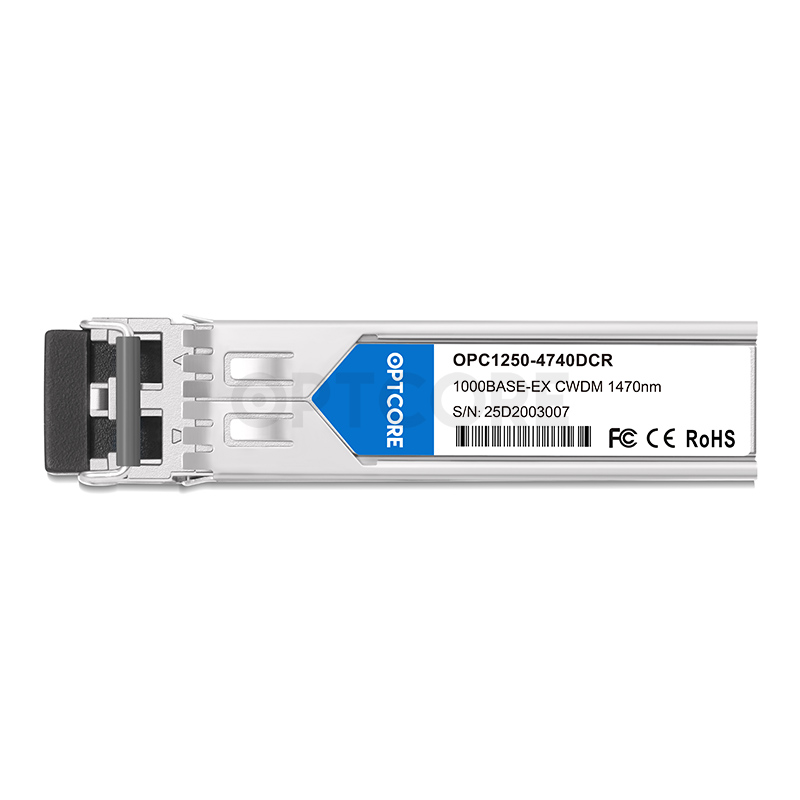

Optcore 1.25G CWDM SFP 1270~1610nm 40km Transceiver
US$ 30.00 (Excl. VAT)
Good quality 1G CWDM SFP EX Transceiver Module (SMF, 1270~1610nm, 40km, LC, DDM).
1.25Gb/s SMF CWDM 1270~1610nm 40km SFP Optical Transceiver Module
Optcore’s OPC1250-xx40DCR is a high performance and cost-effective CWDM (Coarse Wavelength-Division Multiplexing) SFP transceiver module for 1000BASE-EX Gigabit Ethernet and 1G Fiber Channel application, which provides a high capacity, high bandwidth communication solutions for multiplexed optical networks. This 1G CWDM SFP transceiver module provides a 40km transmission distance over single-mode fiber. It features a highly reliable CWDM DFB transmitter and PIN photodiode into a LC Duplex optical connector. There are 18 center wavelengths available from 1270nm to 1610nm with each step 20nm.
Additionally, the OPC1250-xx40DCR CWDM SFP module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power, and transceiver supply voltage. These parameters are internally calibrated by default.
The 1G CWDM SFP transceiver need uses with CWDM Multiplexer/Demultiplexer (CWDM Mux/Demux) that is separately sold by Optcore.
Features
• Support Up to 1.25Gb/s data links
• Hot-pluggable SFP footprint
• Compliant with SFP MSA standard
• Up to 40km on 9/125µm SMF
• 18-Wavelength CWDM DFB transmitter from 1270nm to 1610nm, with step 20nm
• Support Digital diagnostics, compliant with SFF-8472
• Single 3.3V power supply
• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OPC1250-xx40DCR |
| Form Factor | CWDM SFP | Data Rate | 1.25 Gb/s |
| Wavelength | 1270~1610 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > 0 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Optcore Part Number | Description |
| OPC1250-2740DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1270nm, 40km, LC, DDM |
| OPC1250-2940DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1290nm, 40km, LC, DDM |
| OPC1250-3140DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1310nm, 40km, LC, DDM |
| OPC1250-3340DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1330nm, 40km, LC, DDM |
| OPC1250-3540DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1350nm, 40km, LC, DDM |
| OPC1250-3740DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1370nm, 40km, LC, DDM |
| OPC1250-3940DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1390nm, 40km, LC, DDM |
| OPC1250-4140DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1410nm, 40km, LC, DDM |
| OPC1250-4340DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1430nm, 40km, LC, DDM |
| OPC1250-4540DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1450nm, 40km, LC, DDM |
| OPC1250-4740DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1470nm, 40km, LC, DDM |
| OPC1250-4940DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1490nm, 40km, LC, DDM |
| OPC1250-5140DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1510nm, 40km, LC, DDM |
| OPC1250-5340DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1530nm, 40km, LC, DDM |
| OPC1250-5540DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1550nm, 40km, LC, DDM |
| OPC1250-5740DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1570nm, 40km, LC, DDM |
| OPC1250-5940DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1590nm, 40km, LC, DDM |
| OPC1250-6140DCR | 1.25Gb/s CWDM SFP Transceiver Module, SMF, 1610nm, 40km, LC, DDM |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.035 kg |
|---|
