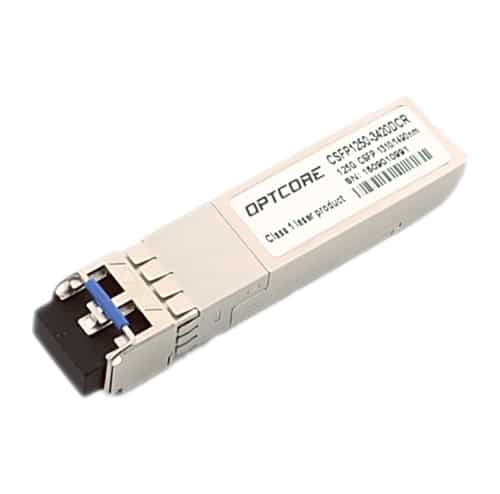

1.25Gbps TX:1310nm/RX:1490nm 20km CSFP Transceiver
US$ 89.00 (Excl. VAT)
Good quality 1.25Gbps CSFP Transceiver (SMF, TX:1310nm/RX:1490nm, 20km, LC, DDM).
1.25Gbps TX:1310nm/RX:1490nm 20km CSFP Transceiver Module
Optcore’s CSFP1250-3420DxR is a high performance and cost-effective Compact SFP (CSFP) Bi-directional optical transceiver designed to meet Gigabit Ethernet and 1X Fibre channel application. It fully complies with the CSFP Multi-Sourcing Agreement (MSA) to meet your network upgrade needs. The CSFP transceiver consists of 2-channel Bi-directional transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the 1490nm PIN photo-detector. The CSFP transceiver module data link up to 20km in 9/125um single mode fiber. The CSFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• The 2-channel Bi-directional optical transceiver
• 1.25Gbps Typical Data Rate and compliant to 1000Base-BX IEEE802.3ah
• 1310nm FP laser transmitter and 1490nm PIN photo-detector
• Hot-pluggable CSFP footprint
• Up to 20km on 9/125µm SMF
• LC/UPC type pluggable optical interface
• Achieve operational compatibility with conventional SFP
• Metal enclosure, for lower EMI
• Single +3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Compact SFP MSA compliant
• RoHS compliant and lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | CSFP1250-3420DxR |
| Form Factor | Compact SFP (CSFP) | Data Rate | 1.25Gb/s |
| Wavelength | TX:1310nm/RX:1490nm | Fiber Type | SMF |
| Max Distance | 20 km | Optical Components | FP/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -22 dBm | Receiver Overload | > -3 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| CSFP1250-3420DCR | 1.25Gb/s CSFP Optical Transceiver, Single mode, Tx:1310nm/Rx:1490nm, 20km, LC, DDM, 0ºC~+70ºC |
| CSFP1250-3420DTR | 1.25Gb/s CSFP Industrial Optical Transceiver, Single mode, Tx:1310nm/Rx:1490nm, 20km, LC, DDM, -40ºC~+85ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
